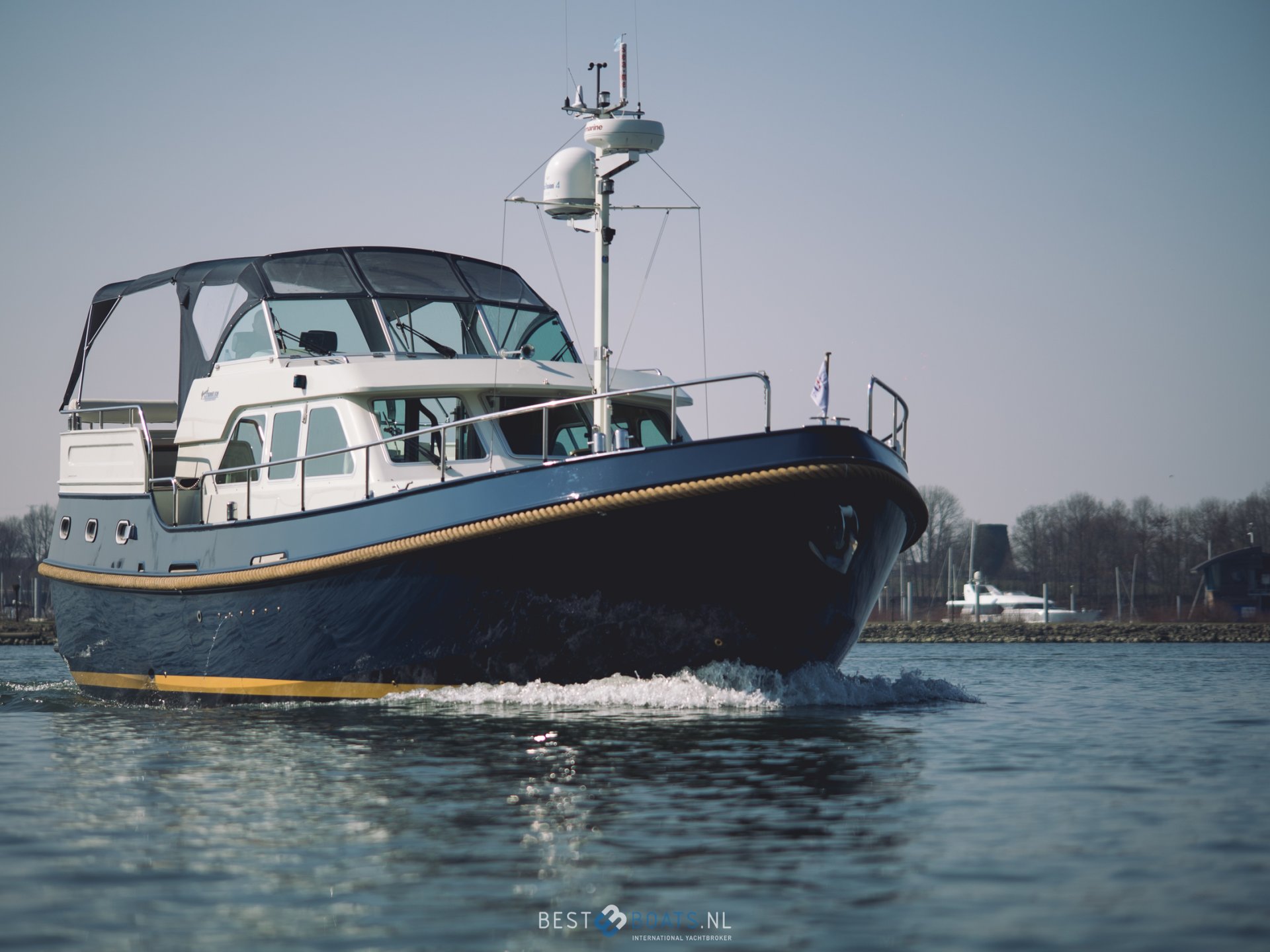

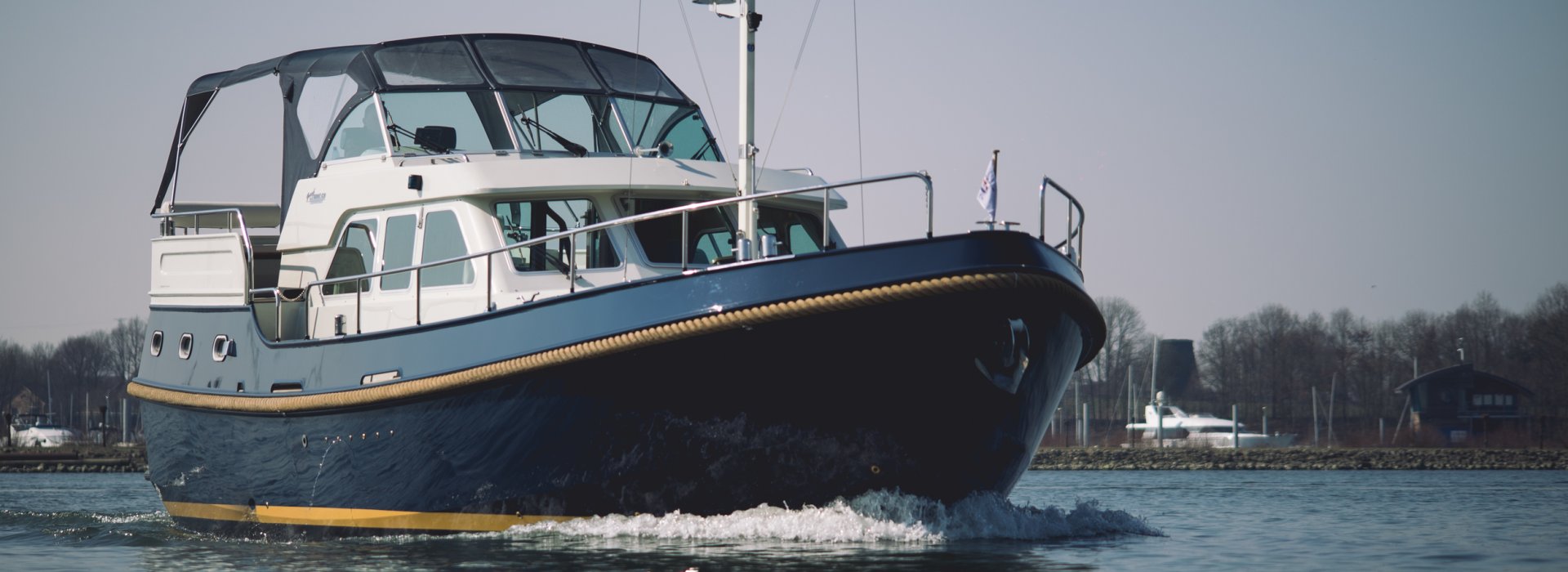

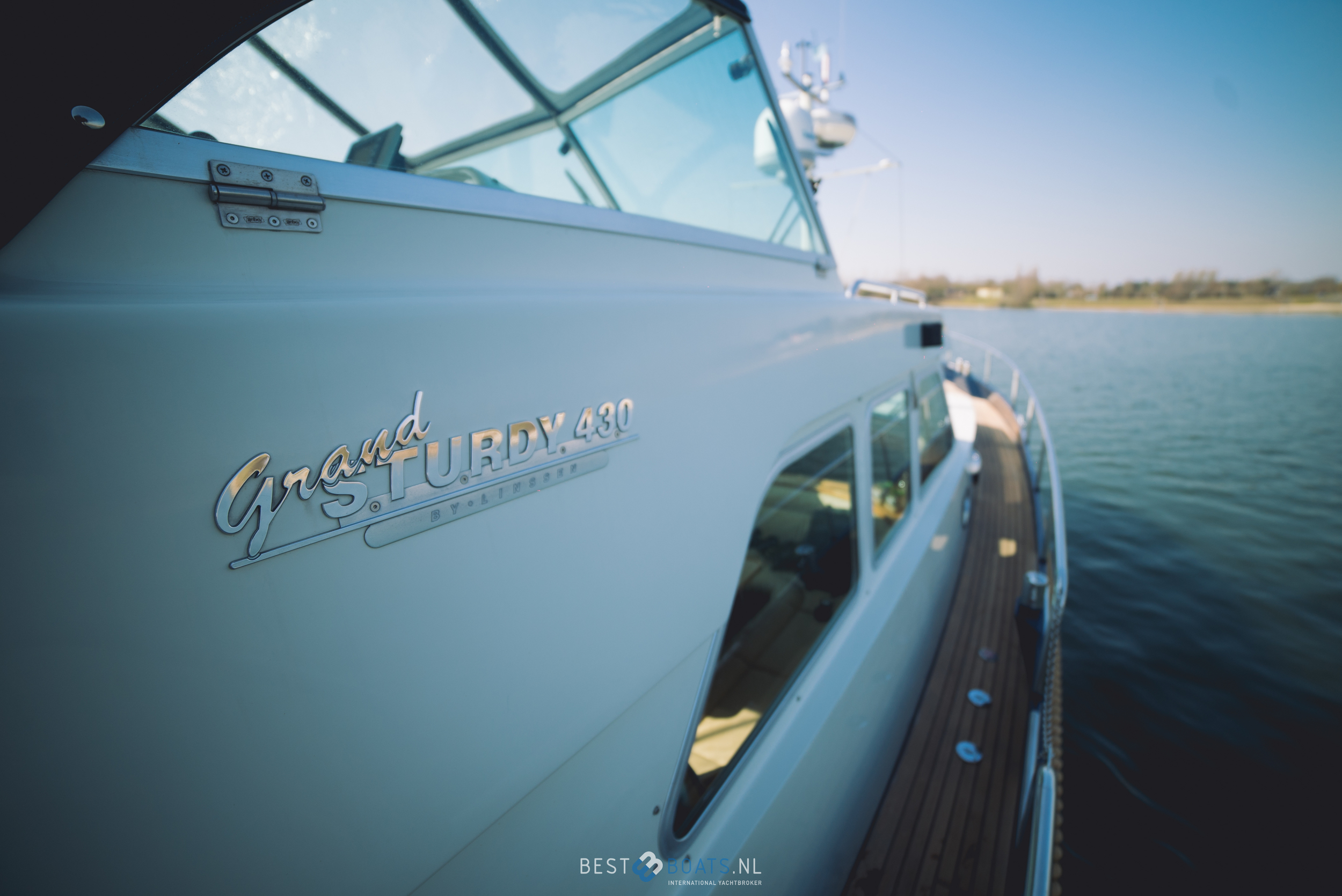

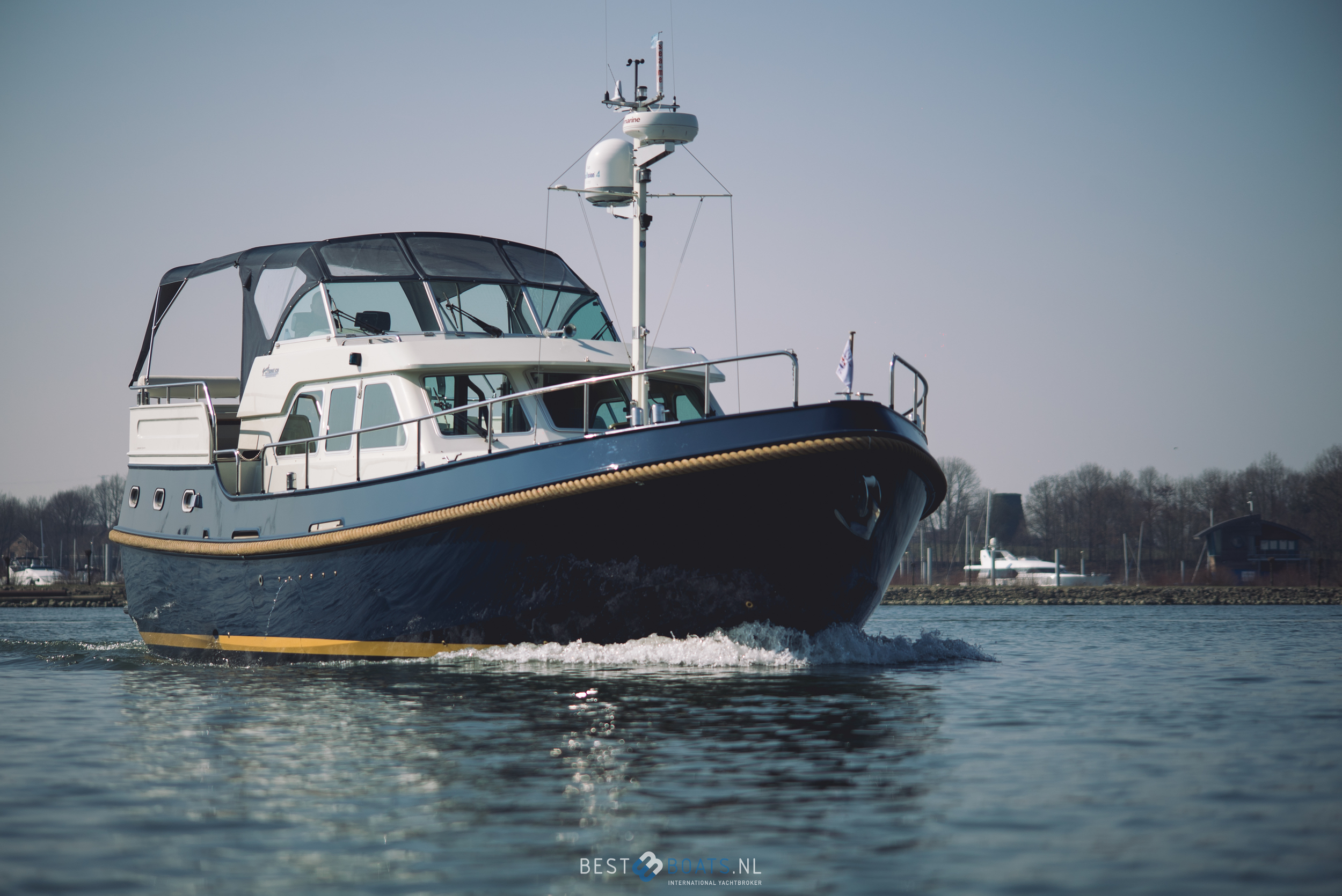

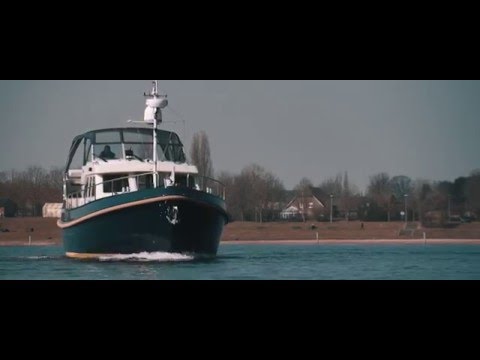

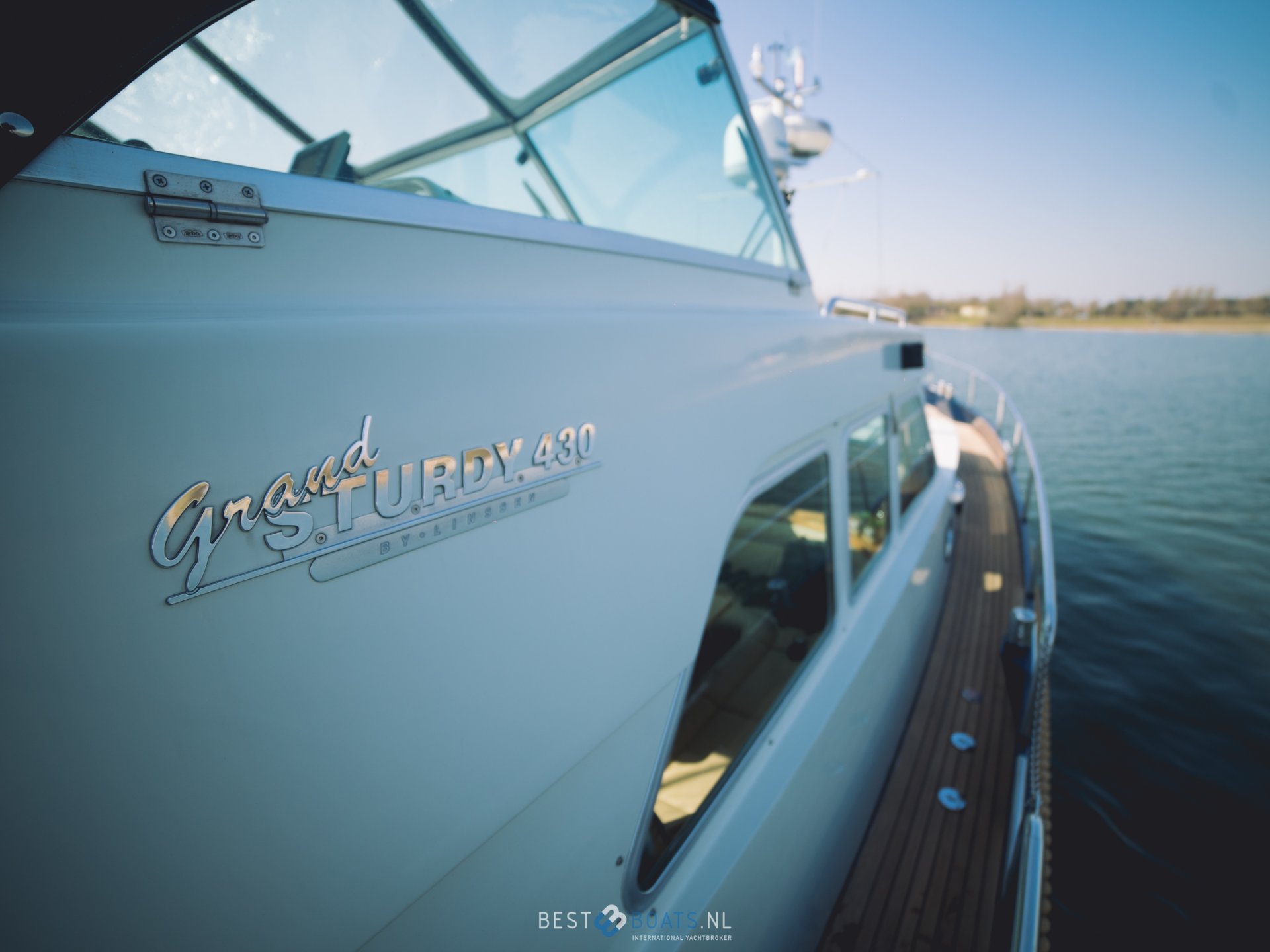

Linssen Grand Sturdy 430 AC

Year built: 2002
Sold
Very complete, well maintained ship refitted in 2016, including new paint, teak deck refit, leather upholstery, new convertible.
Brand:
Linssen
Dimensions:
13.17m x 4.31m x 1.35m
Year built:
2002
Material:
Steel
Location:
Bestboats Roermond
Motorization:
Volvo Penta TAMD-41M 6 cylinder 170hp
Article number:
2021-1450 CHECKED
Send me a brochure
Vergelijk uw polis
Description

Description

This beautiful yacht has undergone a full refit in 2016 including full 2 component paint job of the hull plus complete treatment of the underwater hull 2021.
 A completely new convertible top including a bimini over the aft deck in a beautiful dark blue Navy color was installed in 2016. The cushions of the port staterooms and the back rolls on the aft deck were reupholstered with Skai leather upholstery.The entire upholstery in the Interior was also replaced in 2016 with completely new leather upholstery, color Beige on the salon sofa and dinette and new curtains throughout the ship. A new 3 burner ceramic stove was installed in the pantry, eliminating the need for a gas system on board. All mattresses on board were also completely renewed and replaced in 2016 in both the master bedroom and the guest quarters. The vessel is also equipped with: - Generator - Bow and stern thruster - Hydraulic mast ironing system - Deck wash pump incl hose and spray gun with connection to steering position - Wash/dry combination built in.
< >
Basic data

Basic data

Shipyard
Linssen Yachts
Hull number
2311
CE-category
B
Designed for sea voyages up to wind force 8 on the Beaufort scale and a wave height of up to 4 metres, for example at sea.
Hull shape
Multi chine
Hull colour
Blue
Deck colour
White
Deck construction
Steel
Teak on the foredeck, gunwales and aft deck.
Windows
Aluminum folding window in saloon, pocket window in saloon on BB side, solar control safety glass.

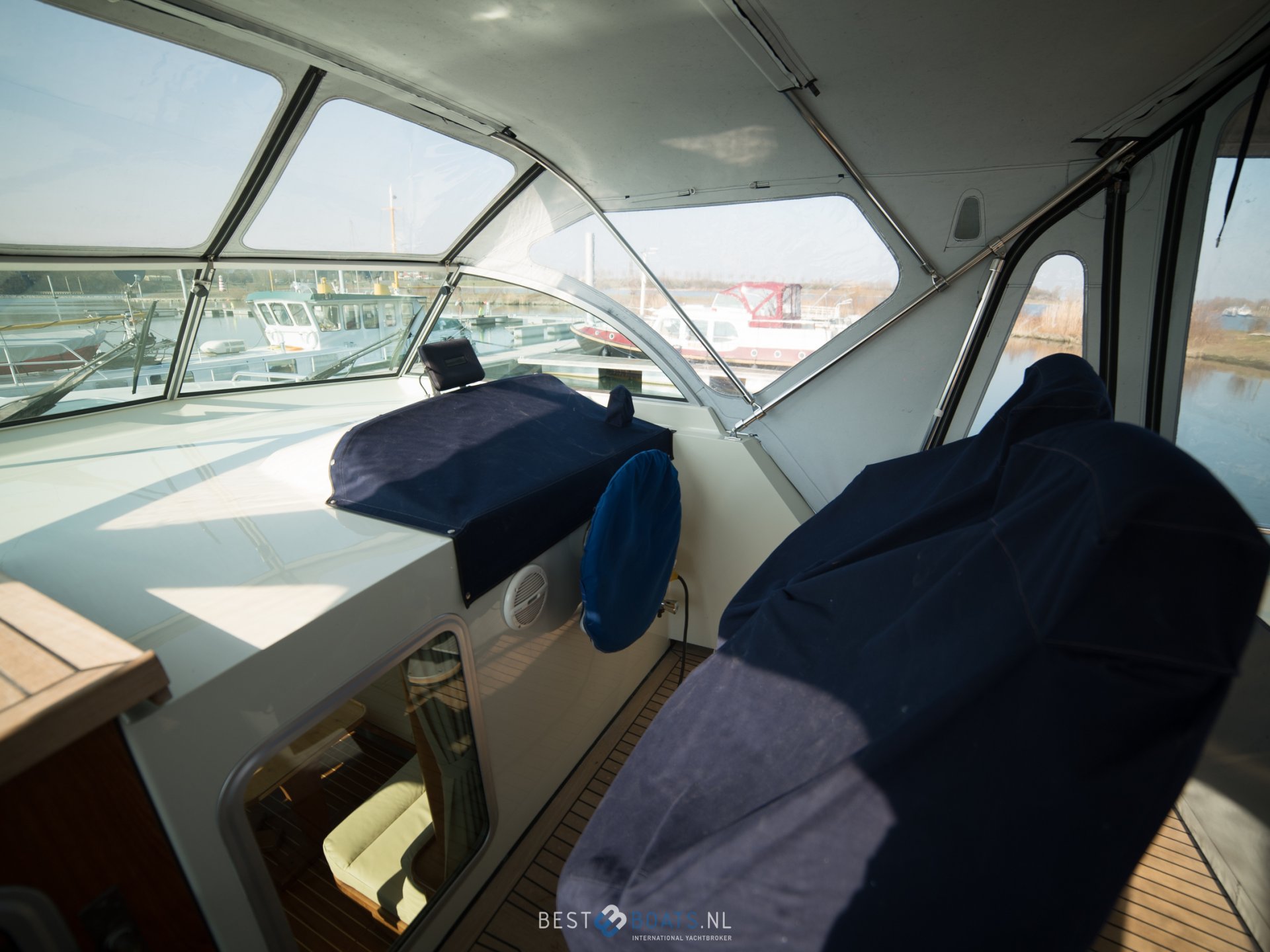

Aft cockpit
✓
Vertical clearance
2.95 m
2.95m with mast down
Draught
135 cm
Waterline length
1093 cm
Displacement
22 tonnes
Steering system
Wheel
Hydraulic with autopilot
Position steering system
Inside + outside
Rudder
Single
Steel rudder
Keel/Lee board
Full keel
Comments

This beautiful yacht has undergone a full refit in 2016 including full 2 component paint job of the hull plus complete treatment of the underwater hull 2021.
A completely new convertible top including a bimini over the aft deck in a beautiful dark blue Navy color was installed in 2016. The cushions of the port staterooms and the back rolls on the aft deck were reupholstered with Skai leather upholstery.The entire upholstery in the Interior was also replaced in 2016 with completely new leather upholstery, color Beige on the salon sofa and dinette and new curtains throughout the ship. A new 3 burner ceramic stove was installed in the pantry, so there is no longer a need for a gas installation on board. All mattresses on board have been completely renewed and replaced in both the master bedroom and the guesthouse. The ship is also equipped with: - Generator - Bow and stern thruster - Hydraulic mast ironing system - Deck wash pump incl hose and spray gun with connection to steering position - Wash/dry combination built in.

< >
Accommodation

Accommodation

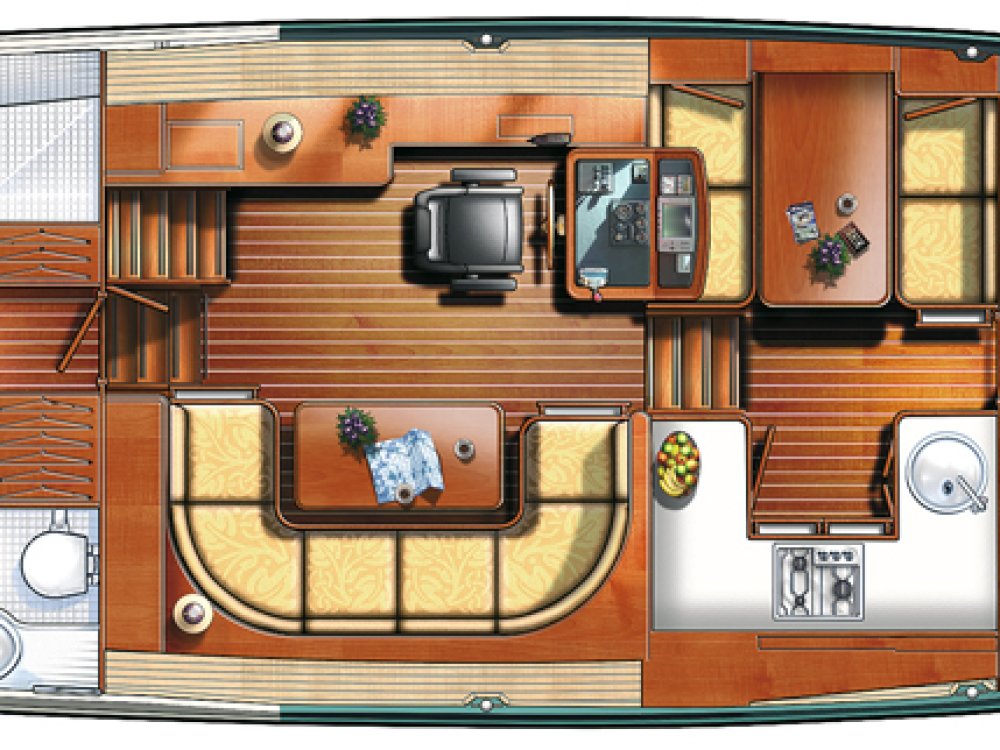

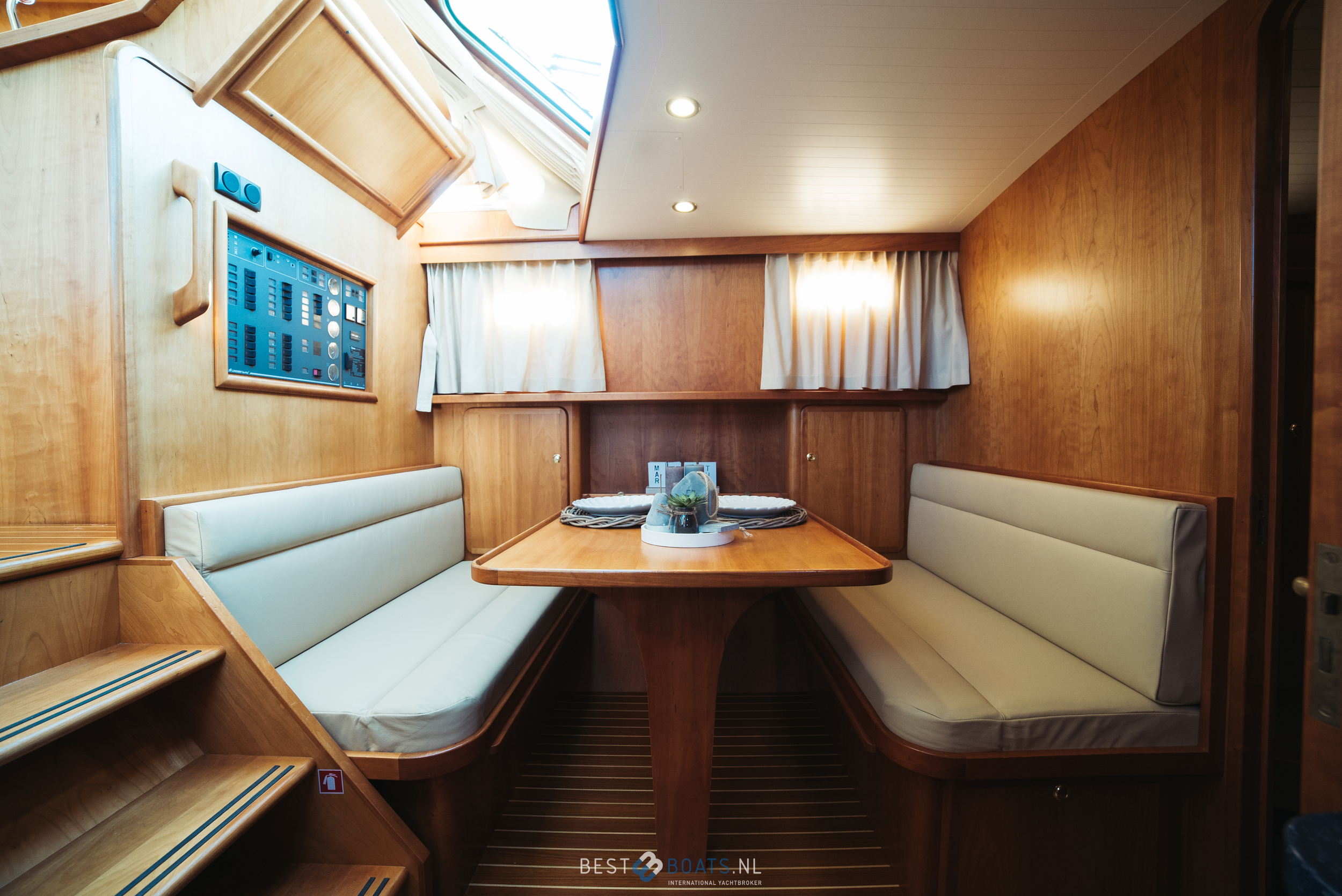

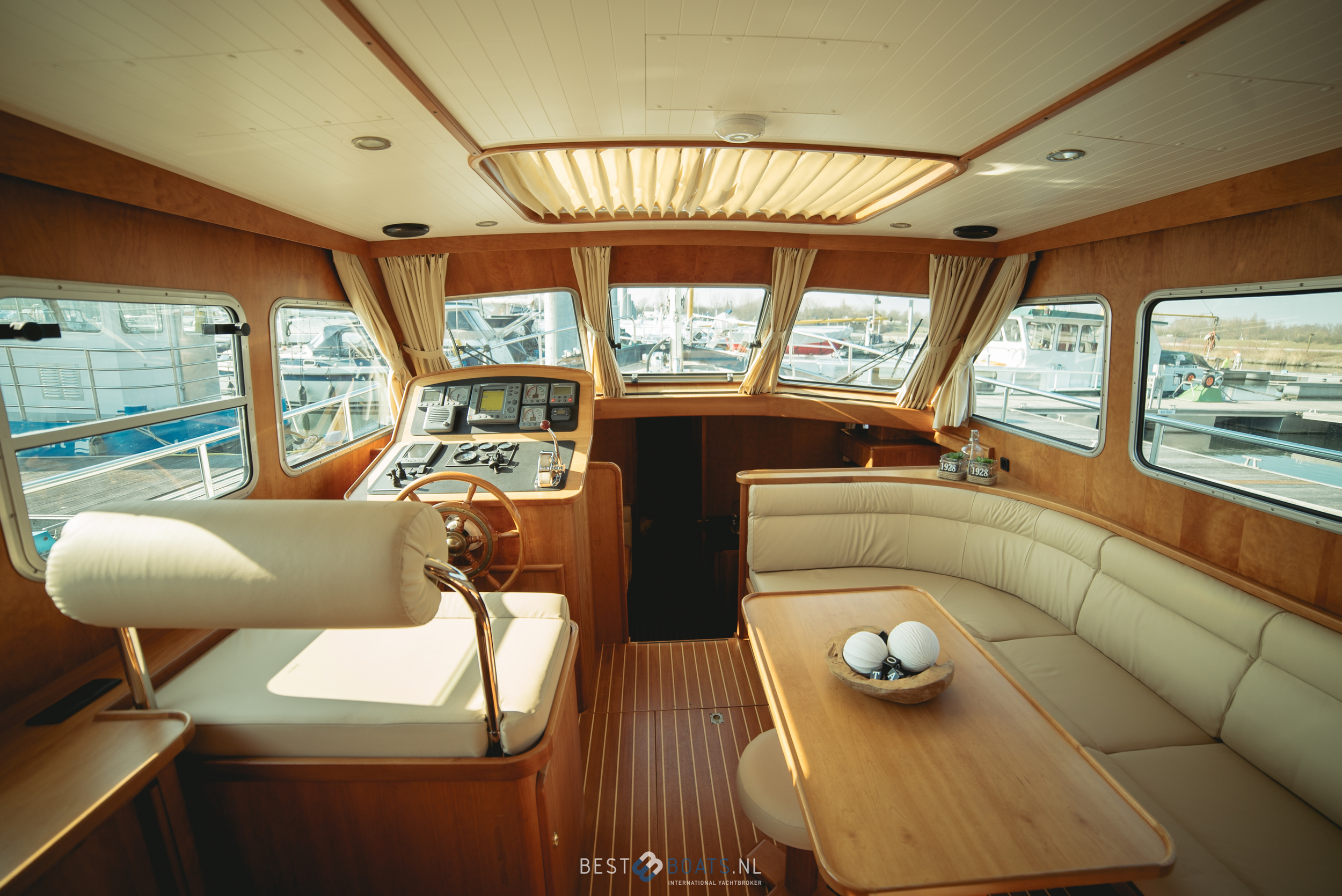

Saloon
✓

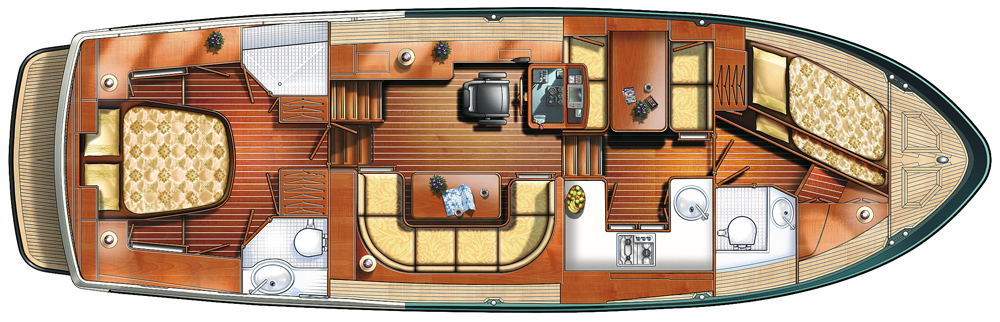

Layout and spaces inside
3
Headroom
195 cm

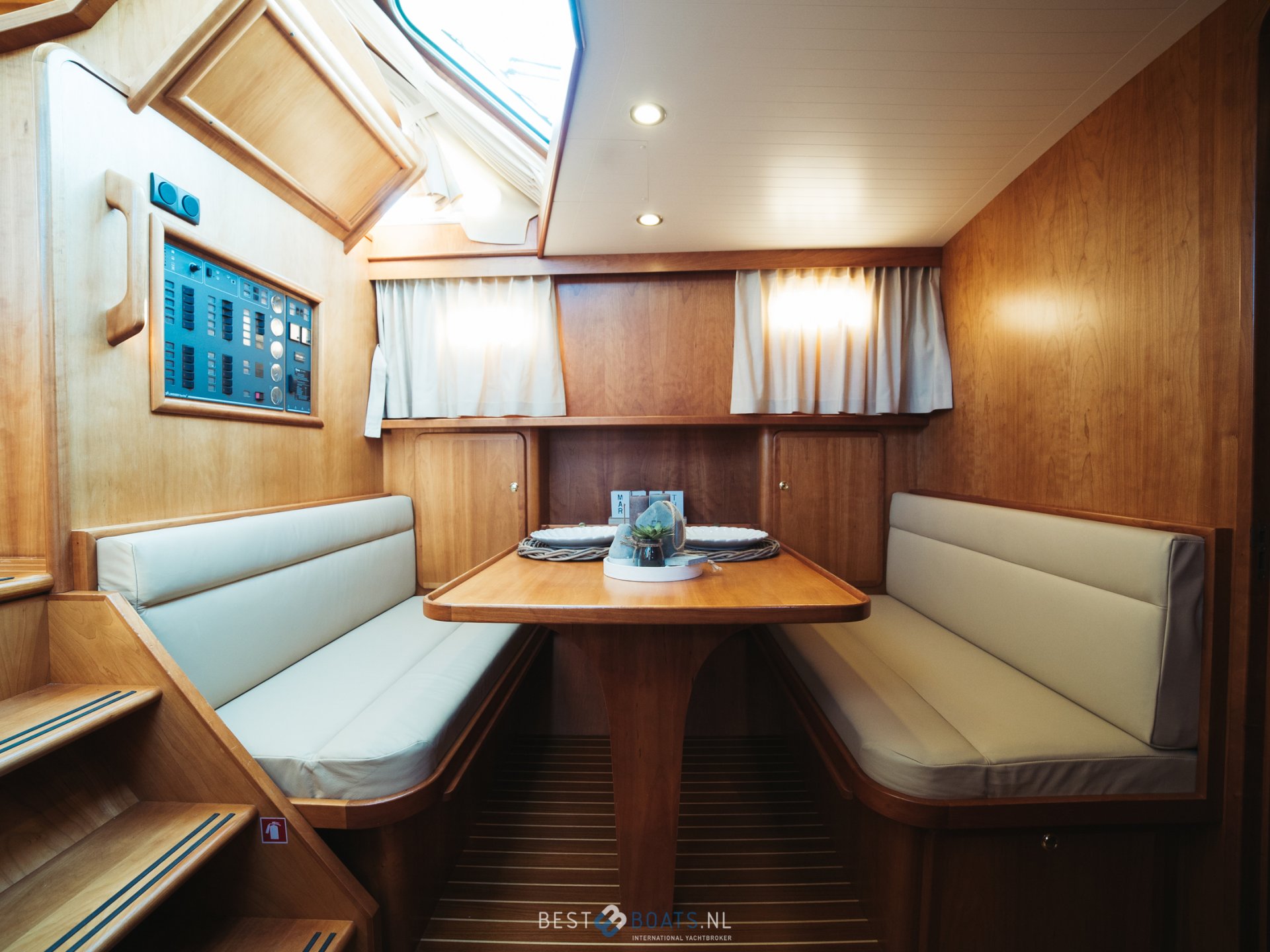

Separate dining area
✓

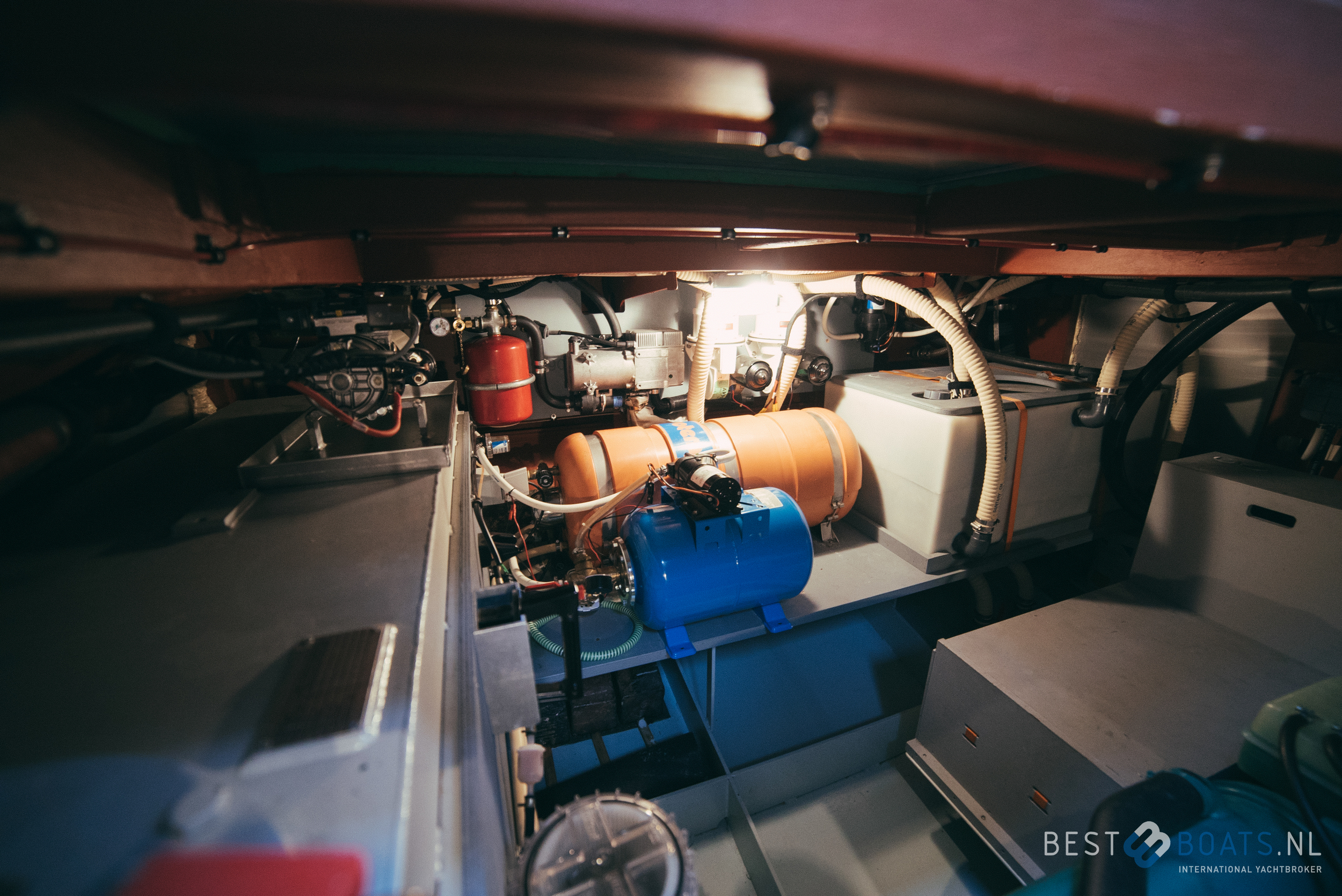

Engine room
✓
Cabins
2

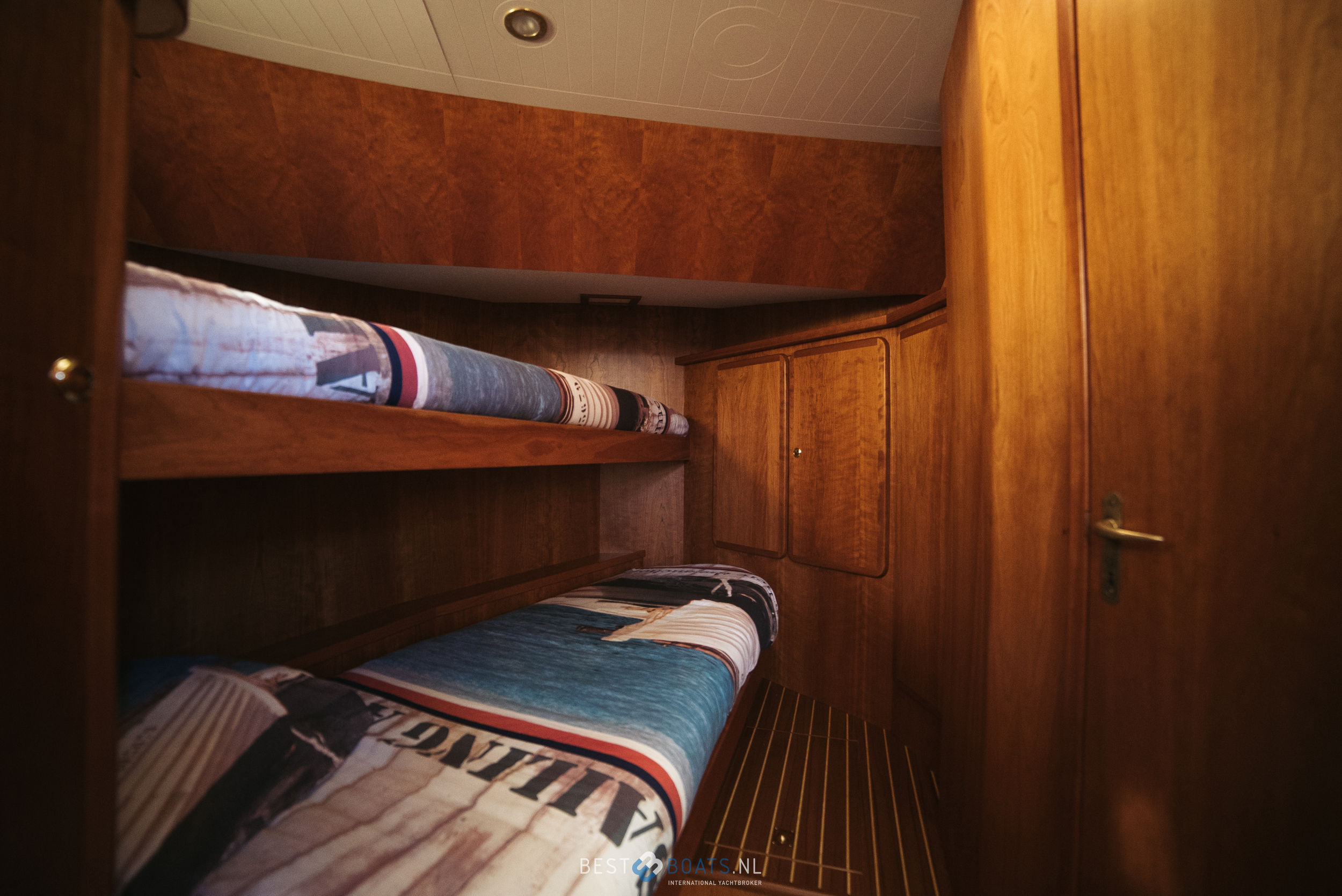

Berths
Fixed: 4

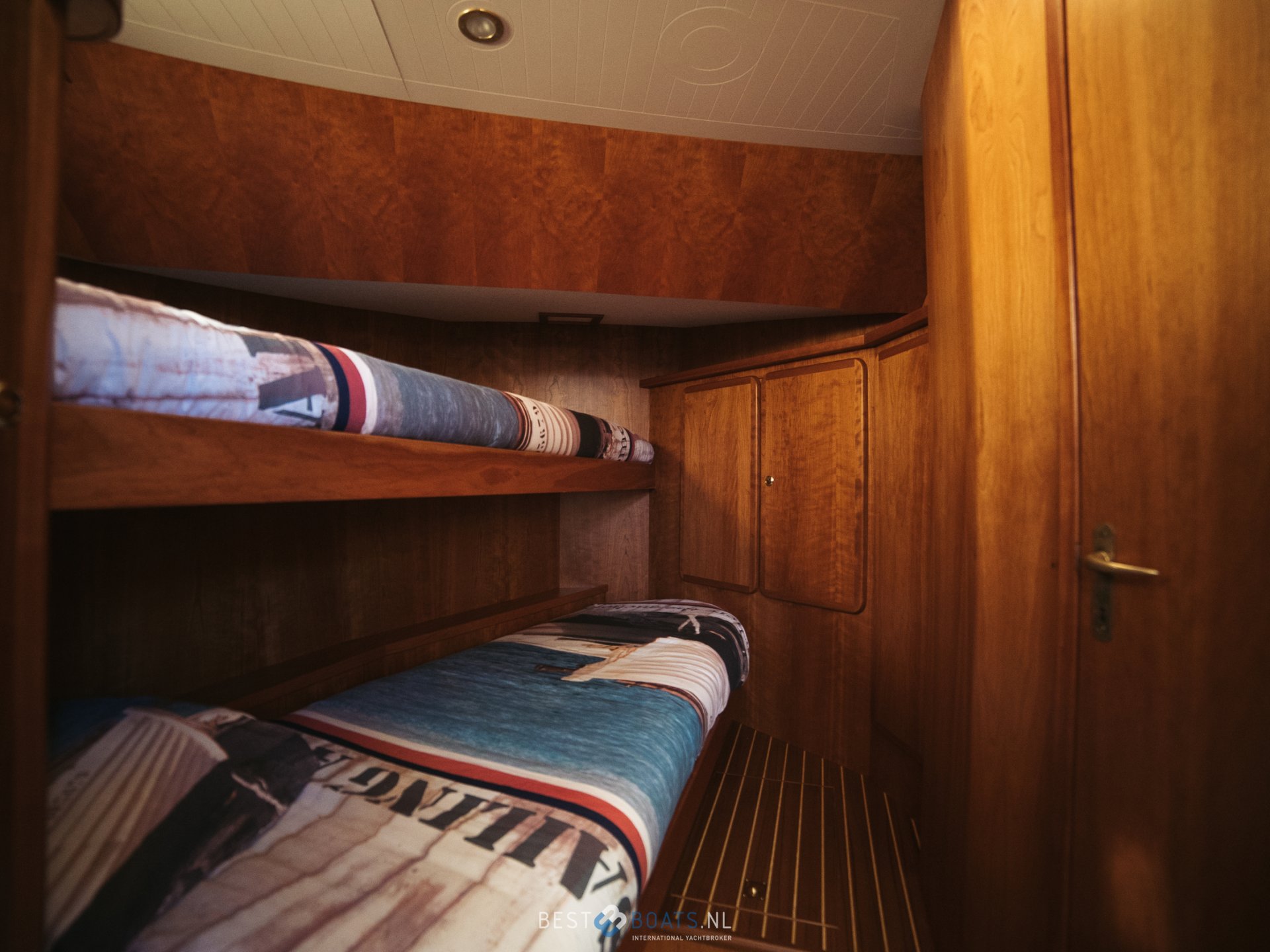

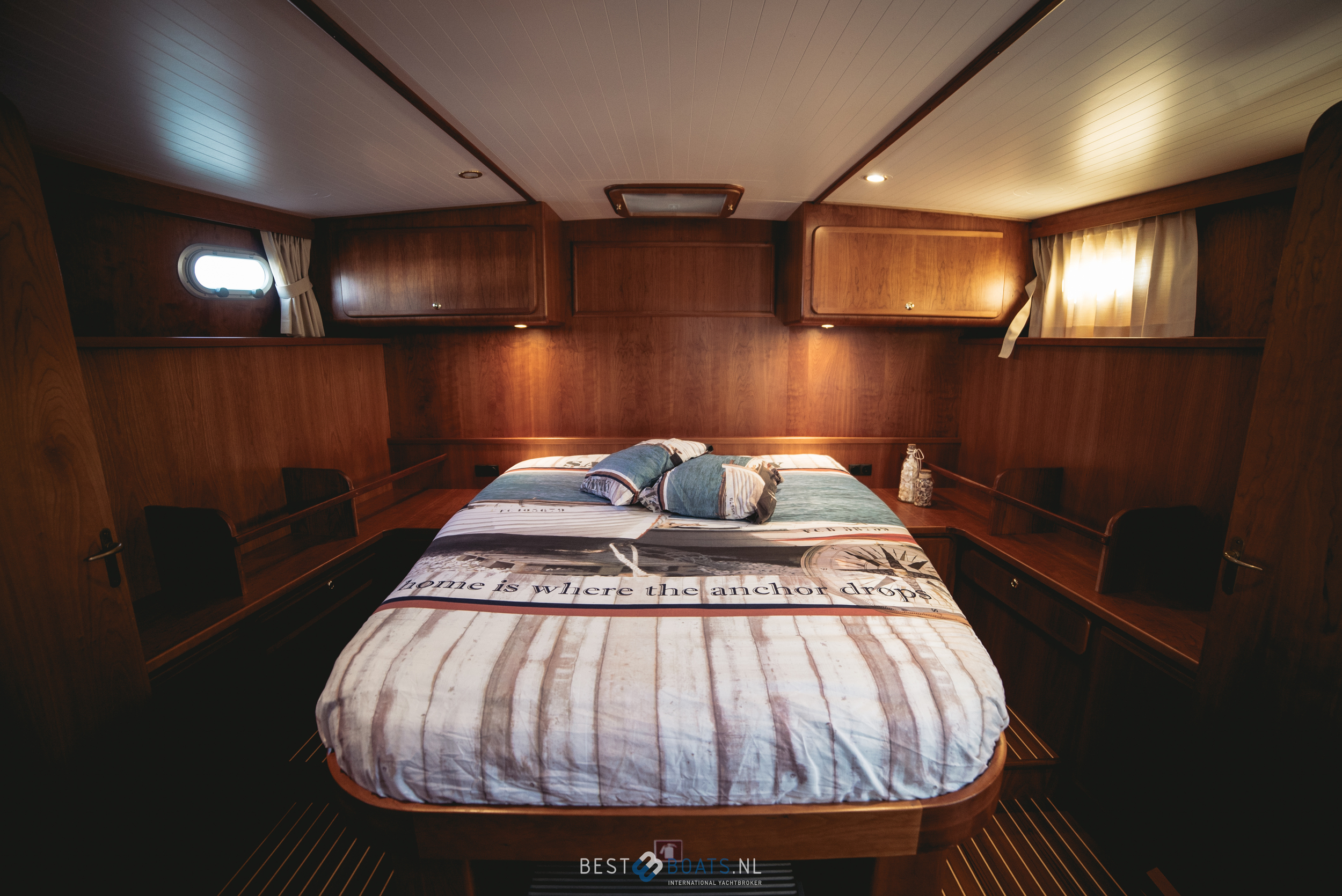

Double bed freestanding bed with slats in AK, bunk bed in VK. All mattresses on board have been renewed in 2016.
Type Interior
Classic, warm

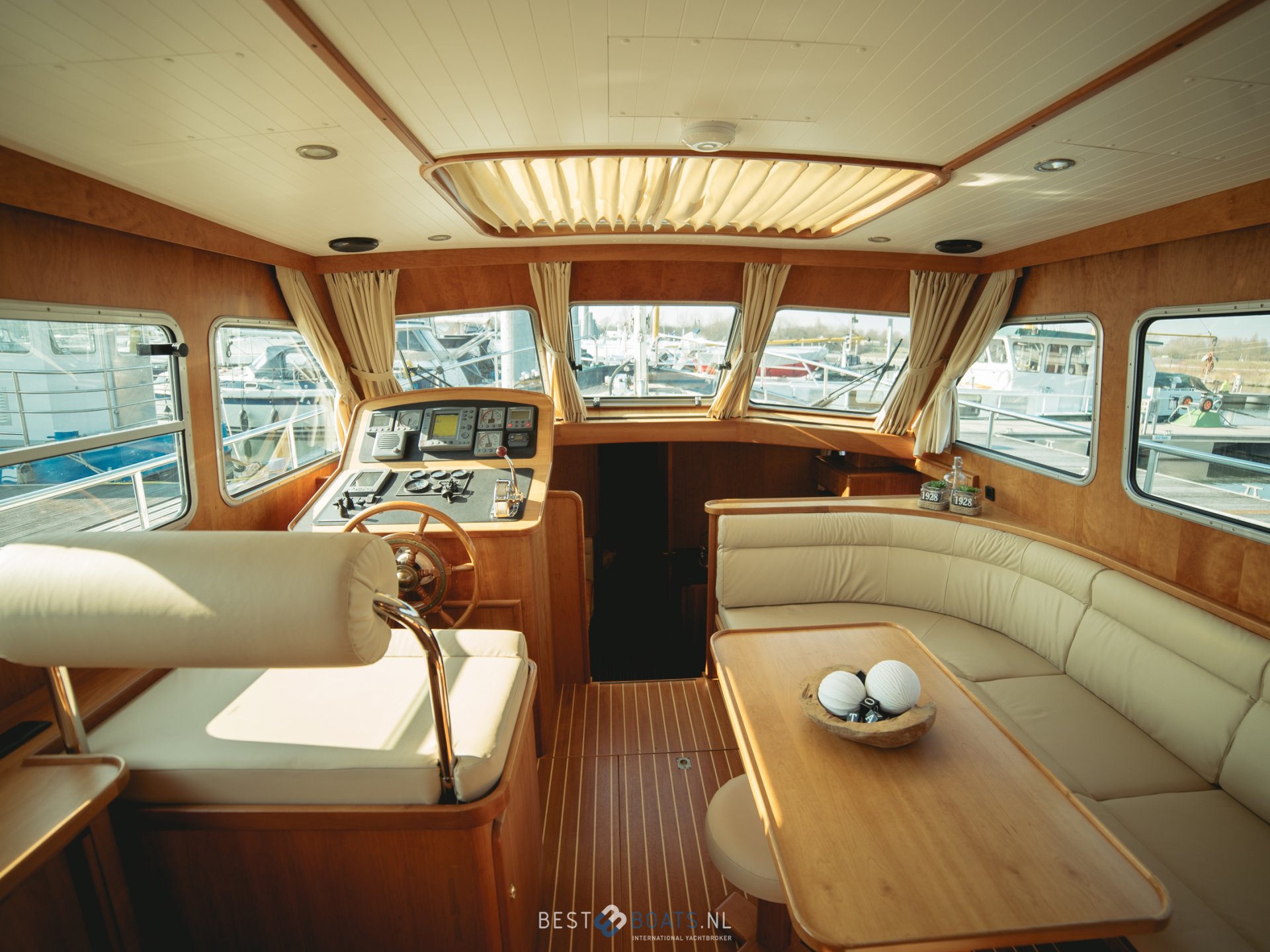

Luxurious cherry wood paneling, with teak parquet floors with inlaid ash trim in saloon and pantry

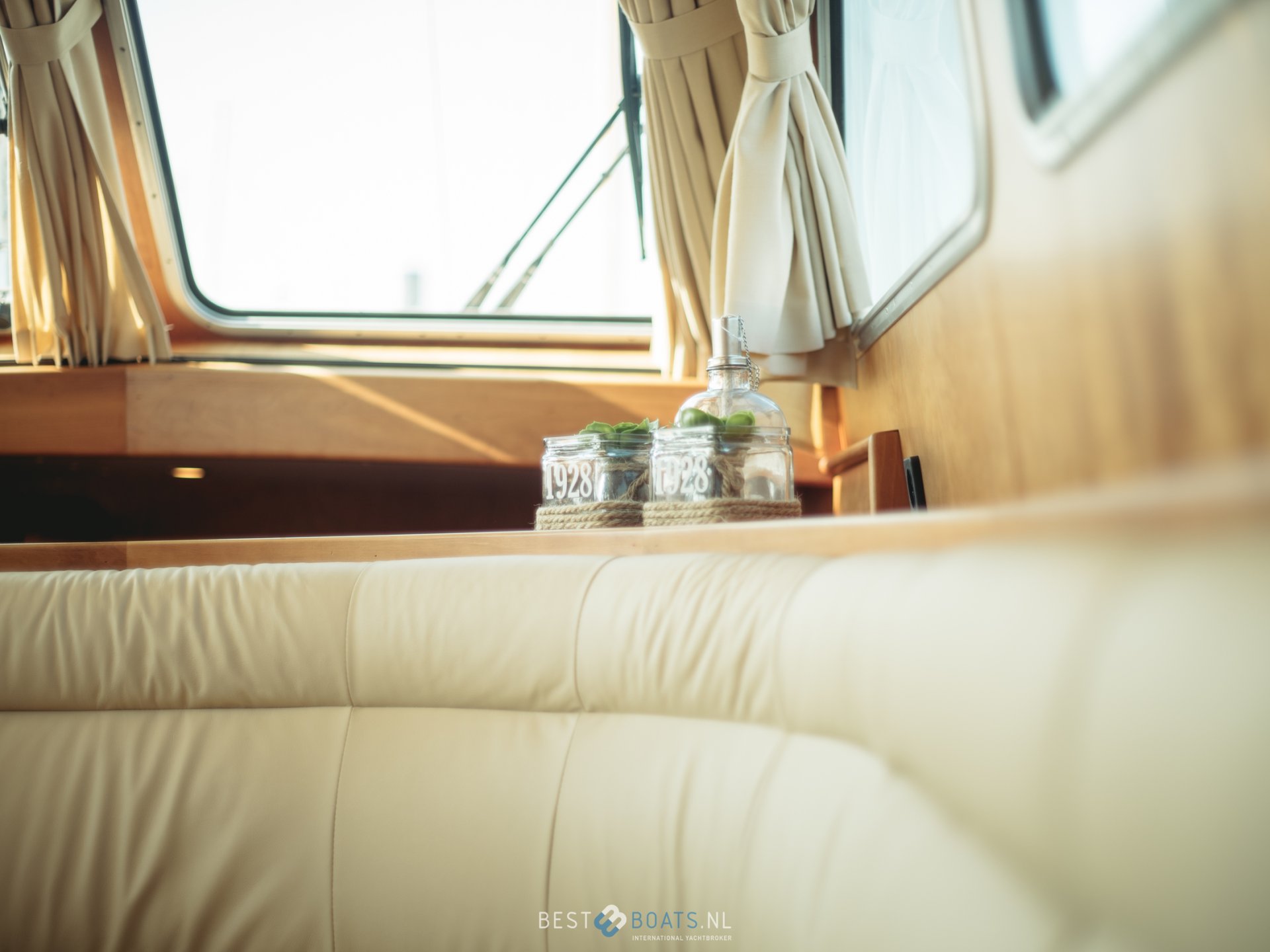

Color upholstery
Beige
Mattresses
✓
Cushions
✓
Curtains
✓ Upholstery renewed in 2016 for Beige leather, curtains also renewed in 2016.
Water tank & material
440 Liter Plastic
2x 220 litres
Water tank gauge
✓
yes
Waste water tank
220 Liter Plastic
220 liter black water tank with dockside discharge and pump for direct discharge, also the ship is equipped with grey water tank á 220 liter.
Waste water tank gauge
✓
Waste water tank drainpump
✓
Deck suction
✓
Water system
Pressure system
Electric pressure system
Hot water
✓ Boiler 55 liters, 240V glow element mounted in boiler
Outside water
✓ Deck wash pump ✓ Deck shower

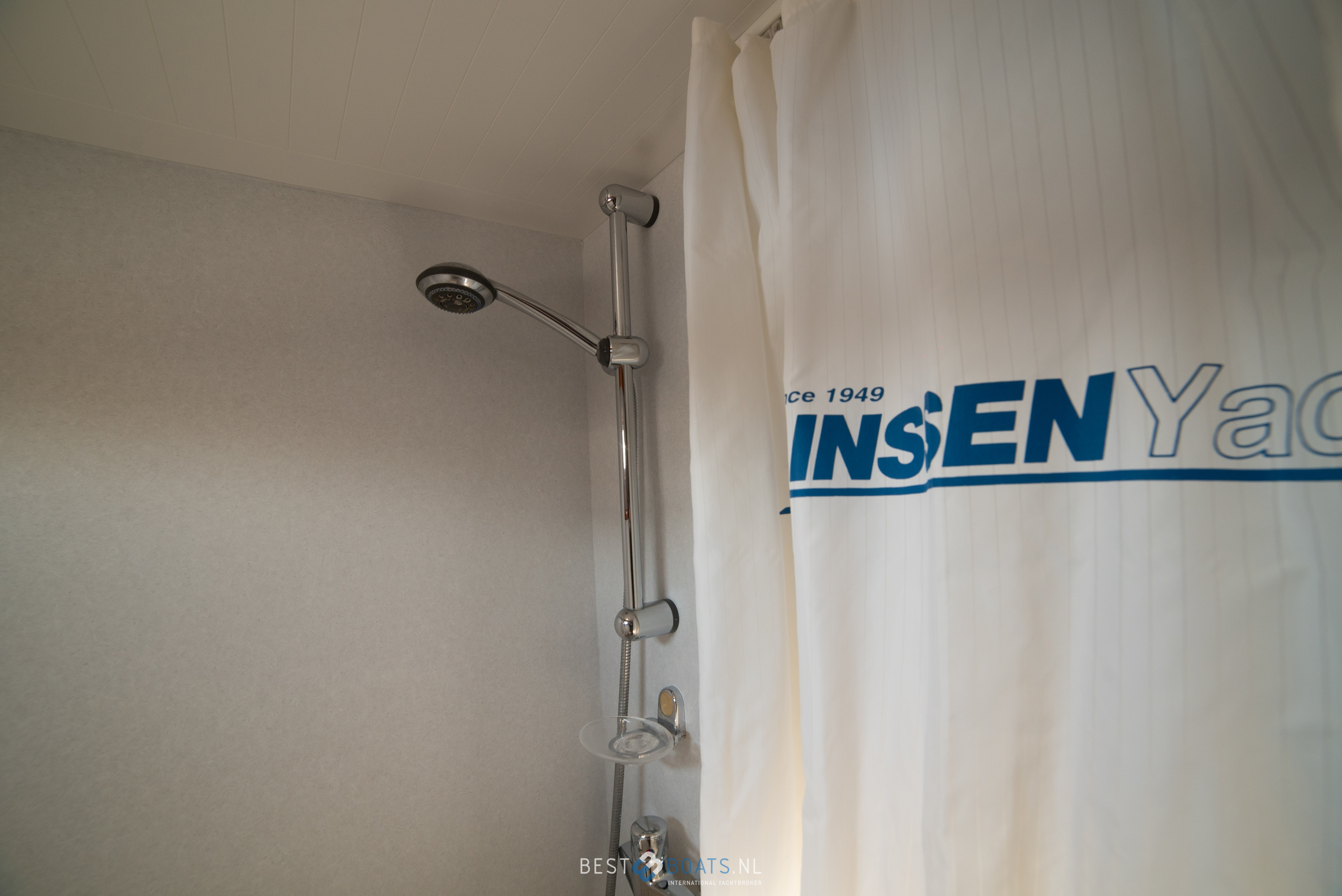

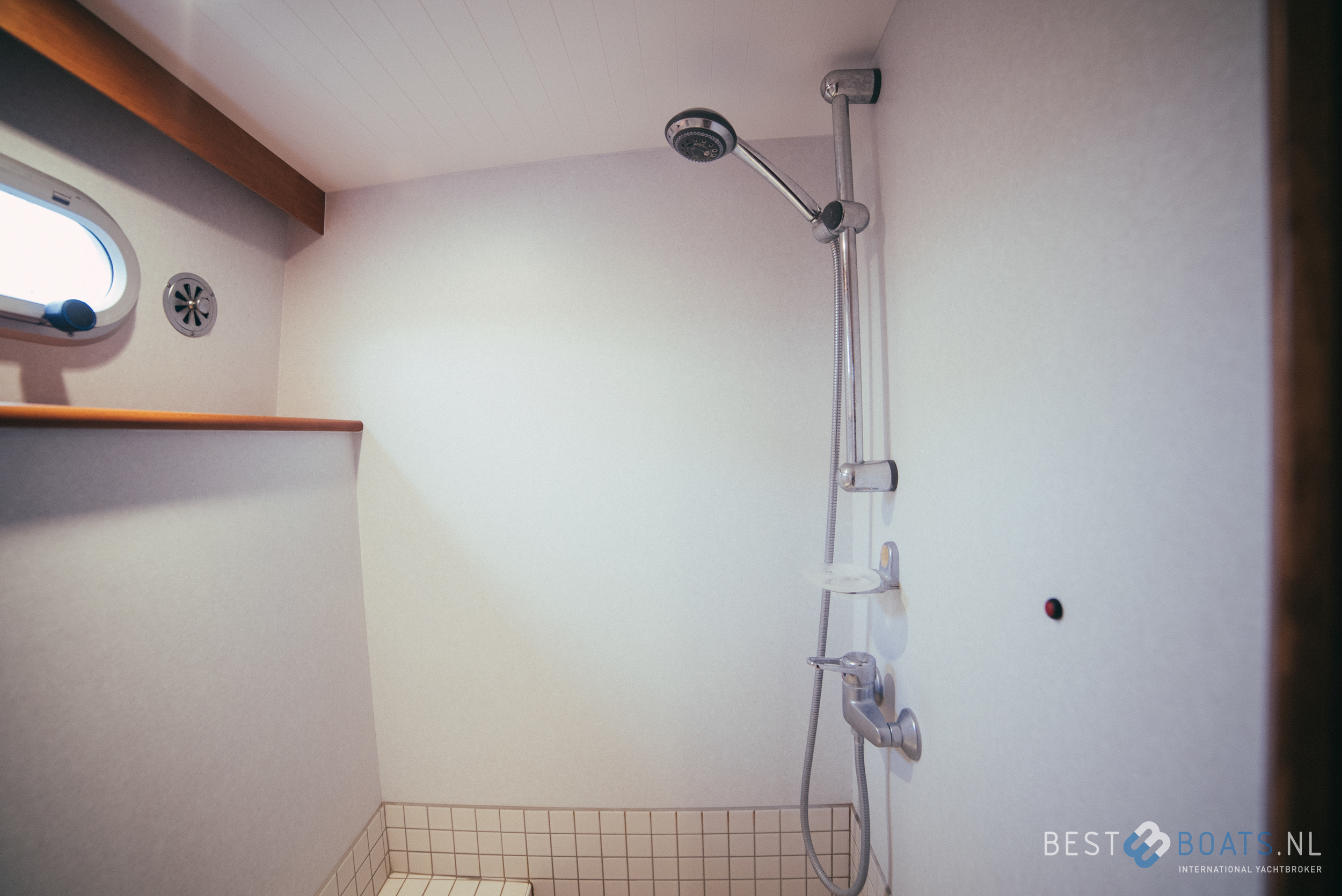

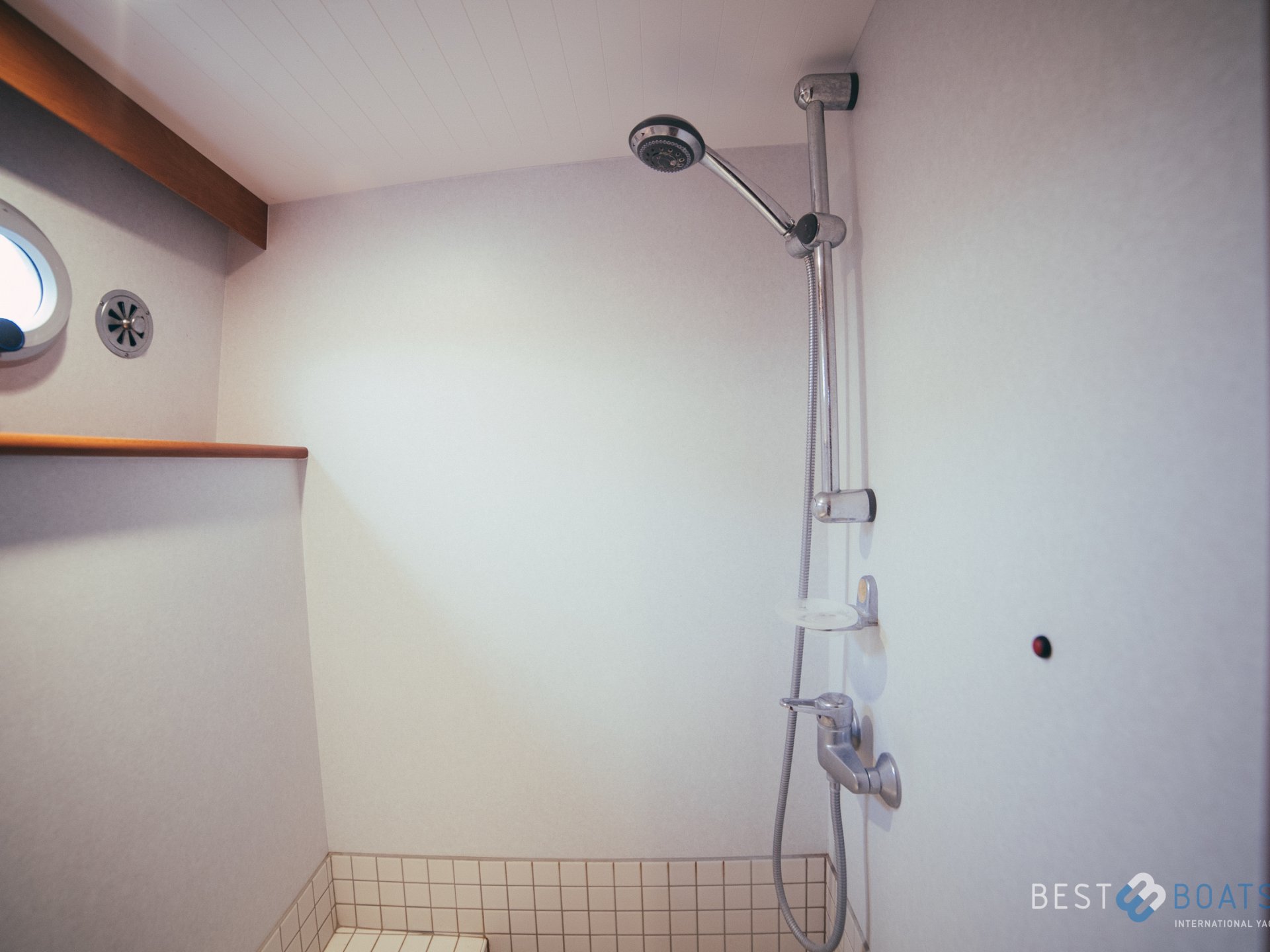

Number of showers
1

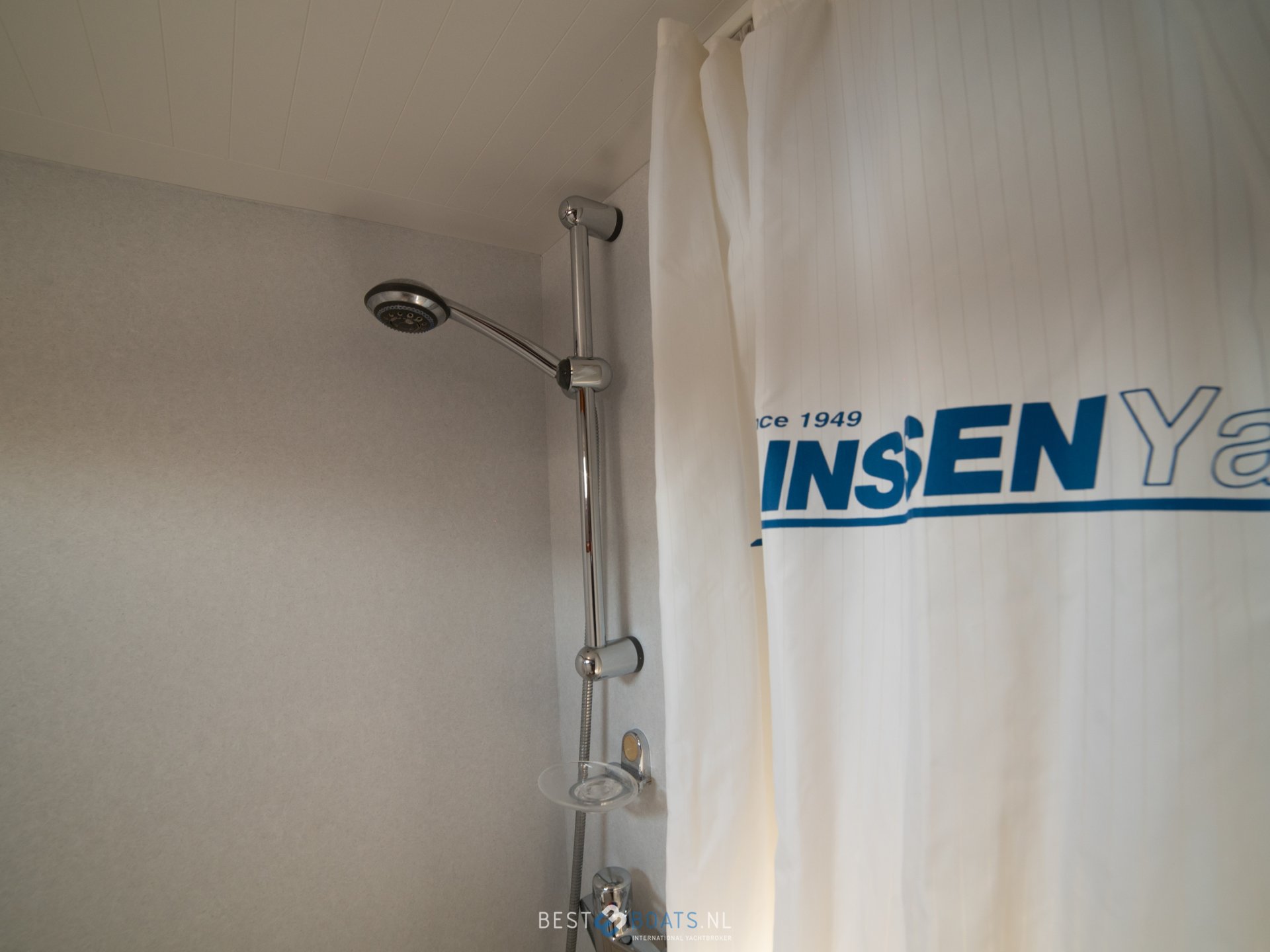

Shower in AK, washbasins executed in Corian with beautiful sanitary accessories

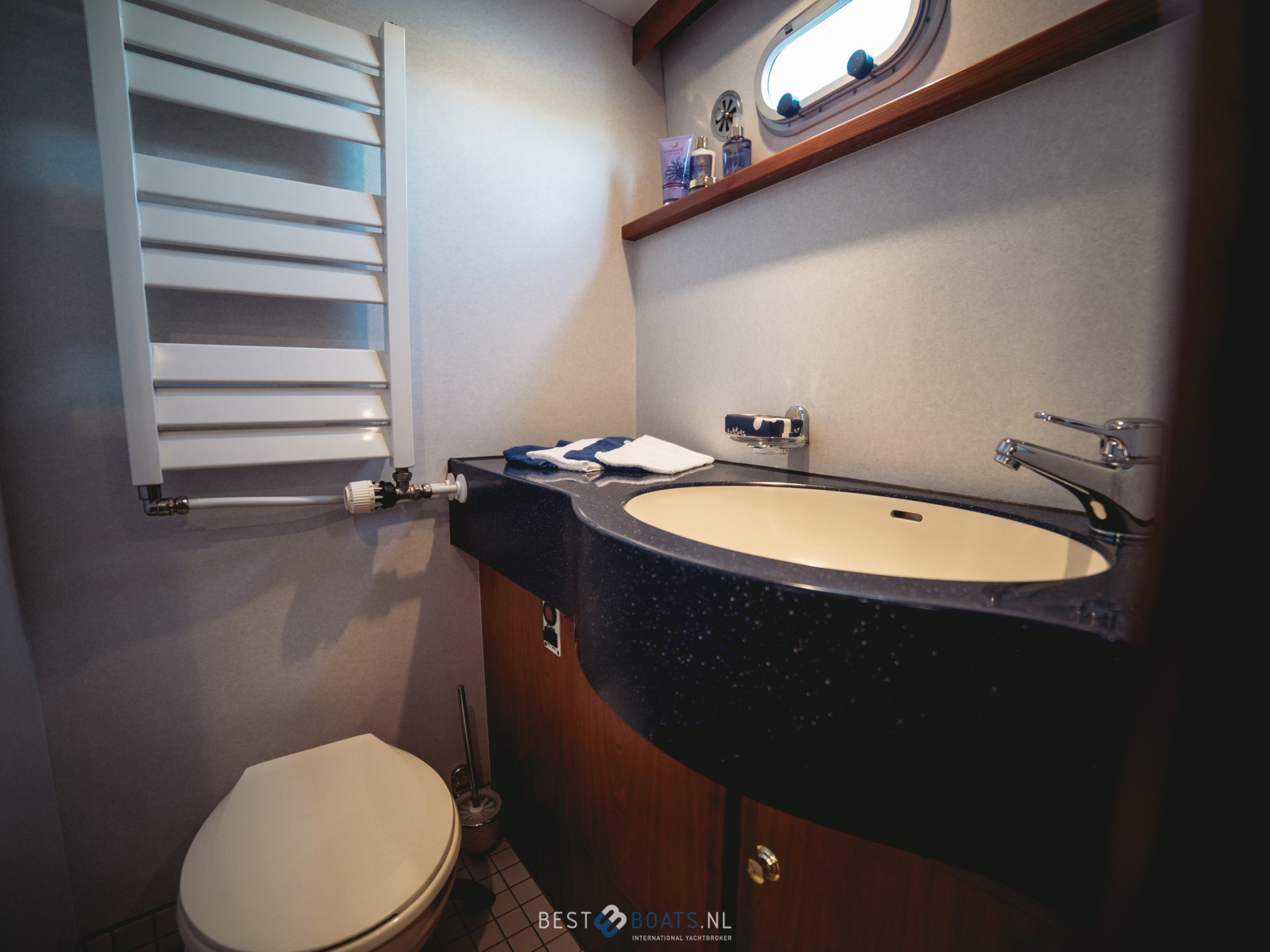

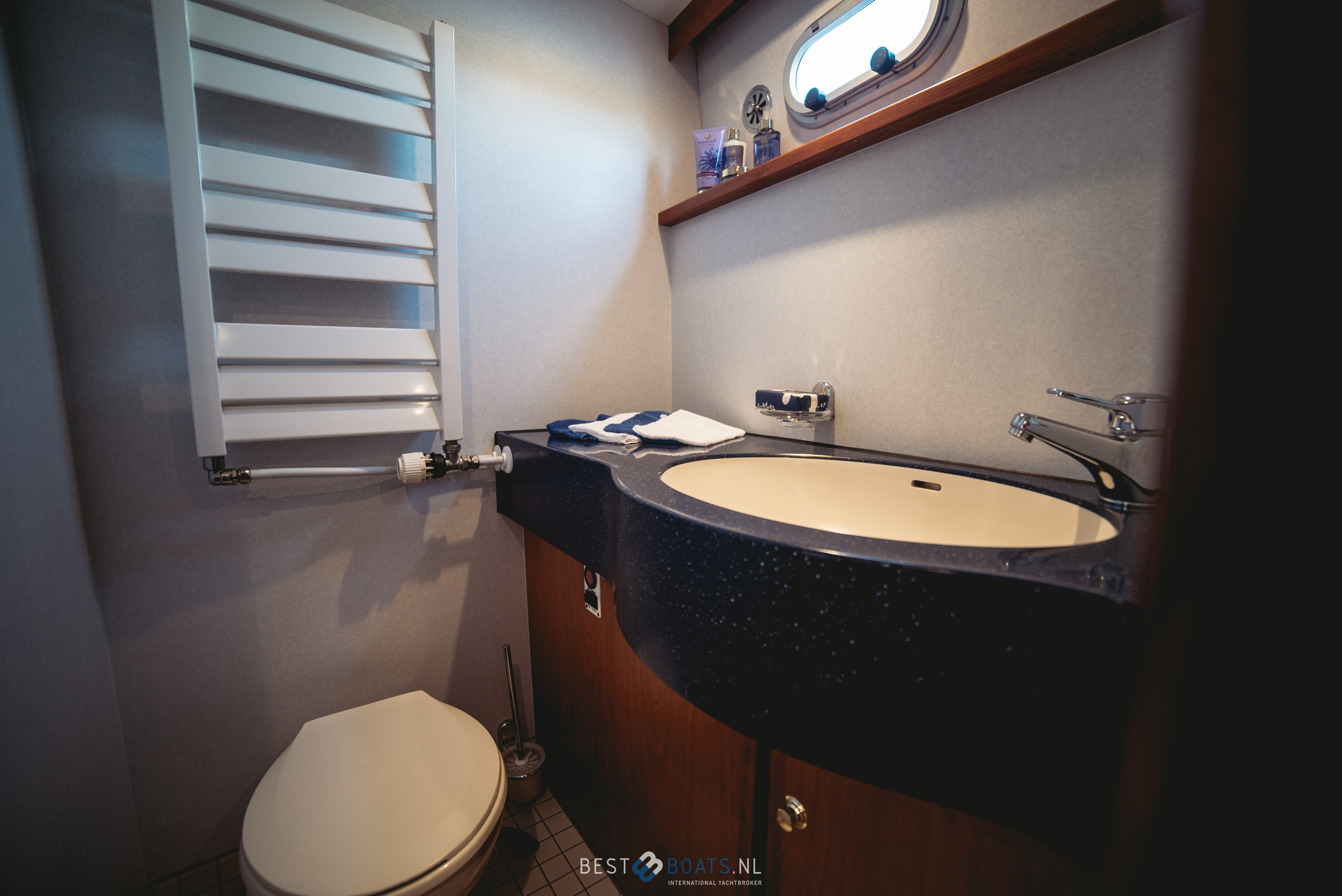

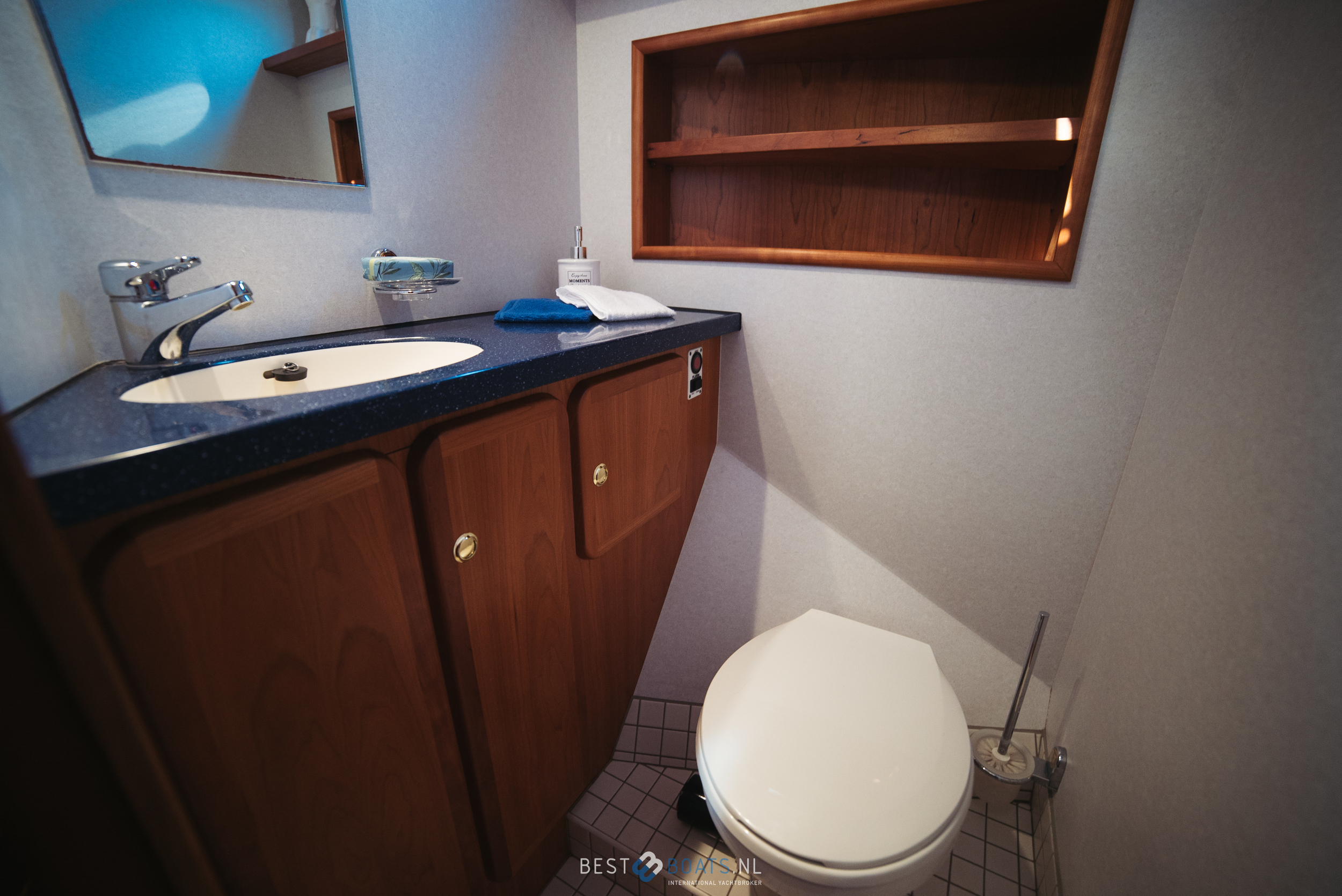

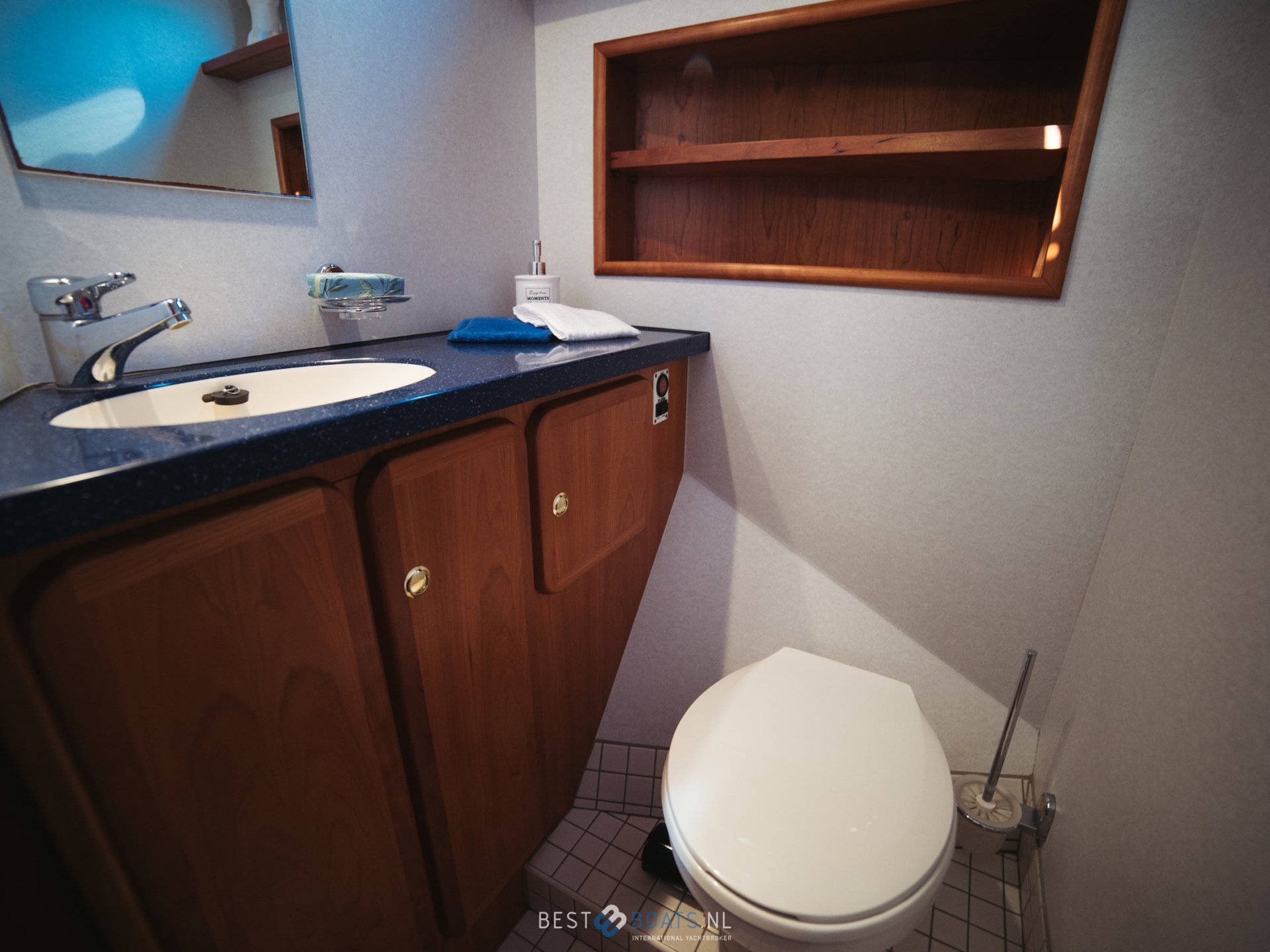

Toilets
2 Electric
Electric toilet in VK and AK type Quiet Flush with fresh water flush
Television
✓
TV built into cabinet in Salon, TV connection in salon, digitenne,
Radio/CD player
✓
Stereo Radio CD player, 2 speakers in saloon and additional speakers at outside steering position

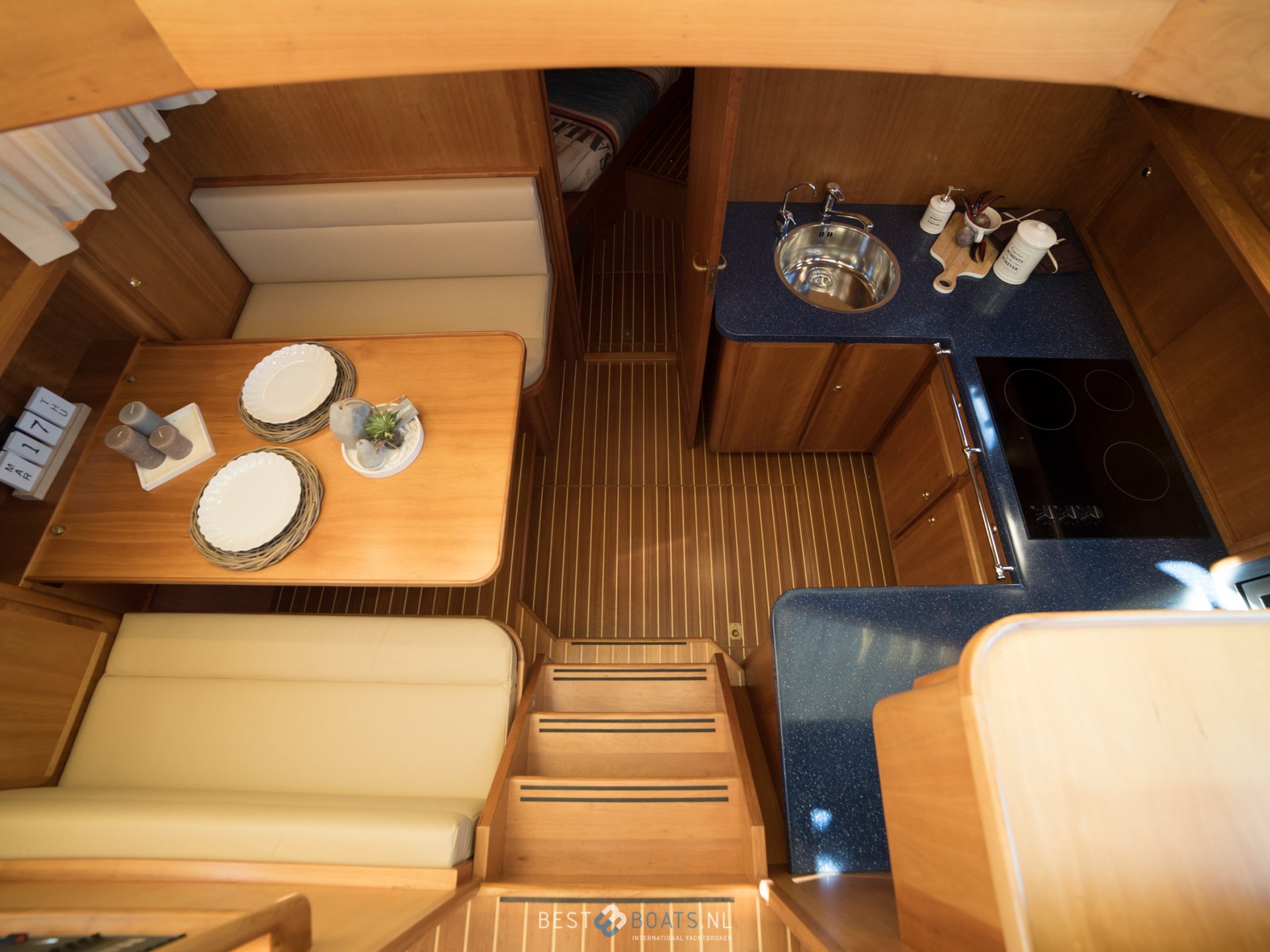

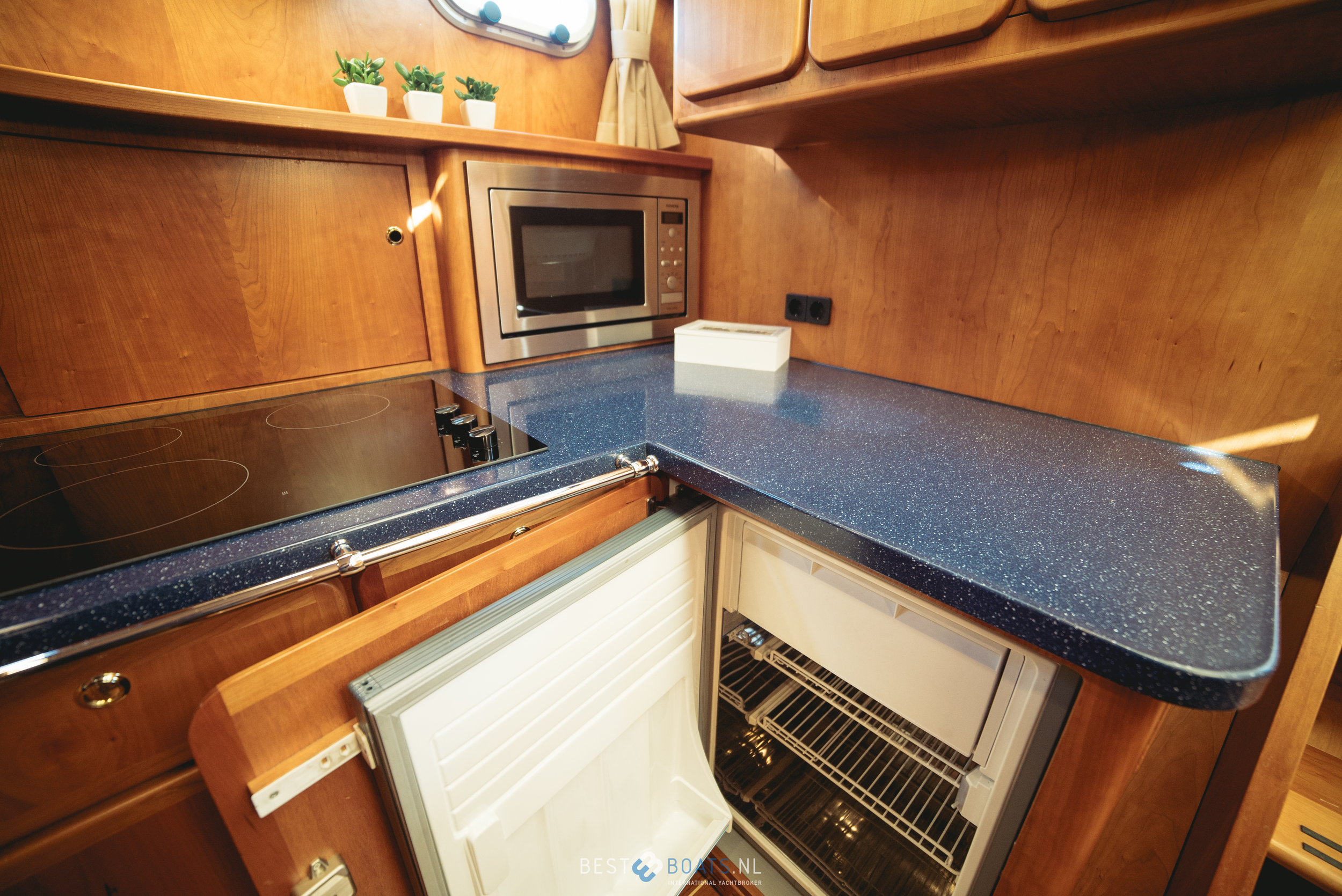

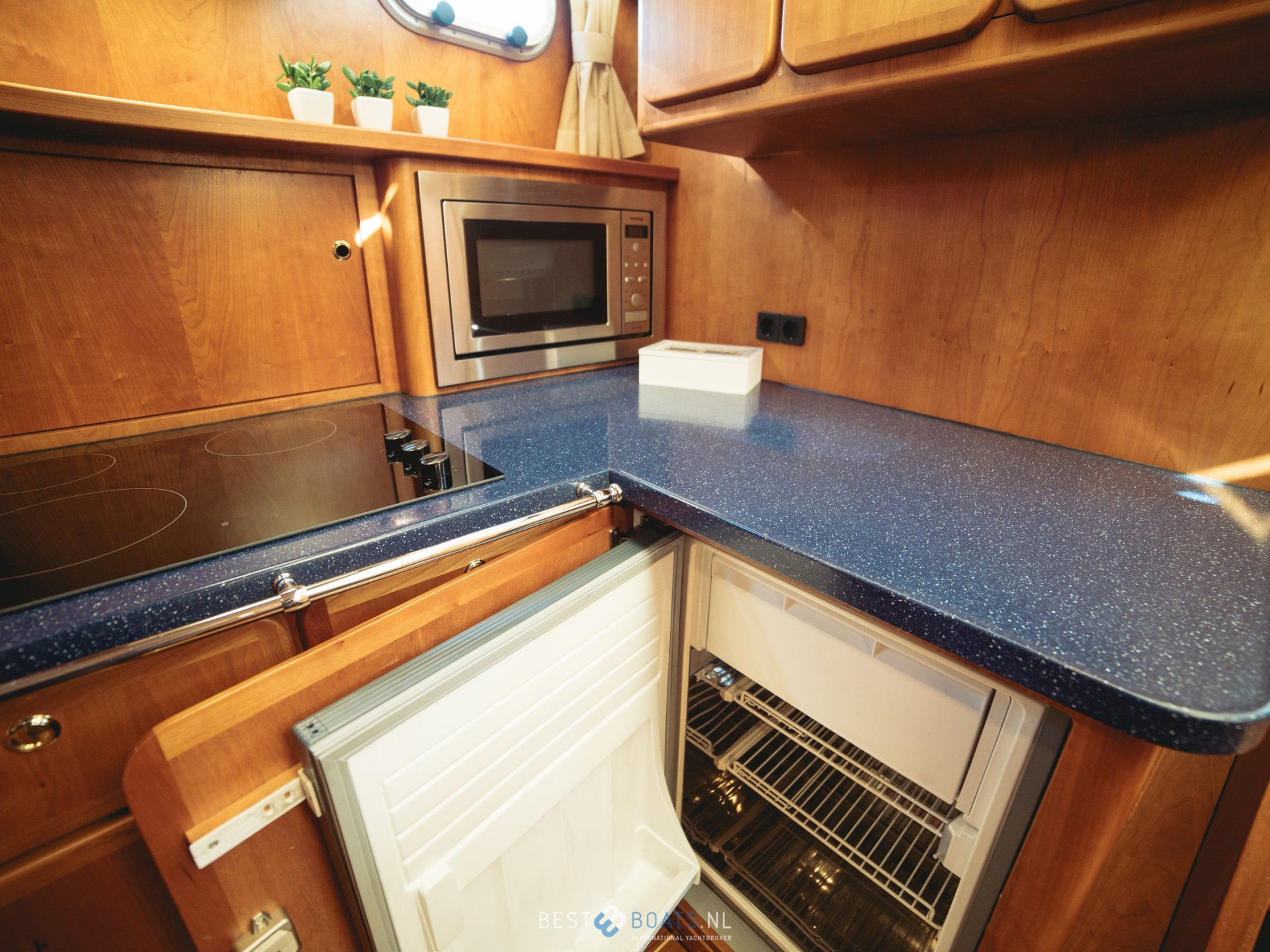

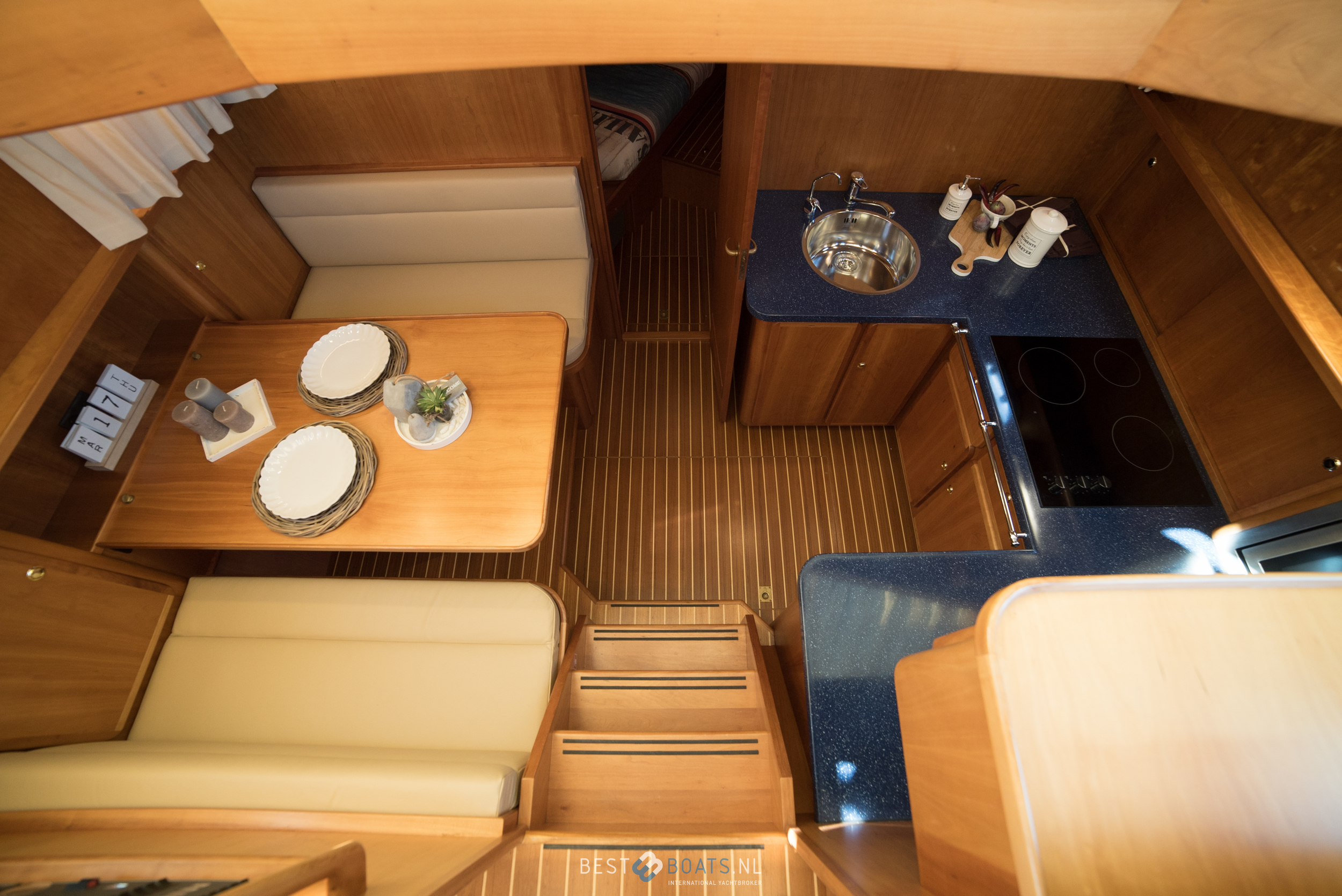

Cooker & fuel
3 Burner(s) Electric
3-burner ceramic stove.
Oven
✓
Built-in combi oven/microwave
Microwave
✓
Built-in combi oven/microwave
Fridge & power source
✓ Electric
110 Liter
Freezer
✓ 13 Liter
Freezer compartment in fridge
Heating
✓ Central heating

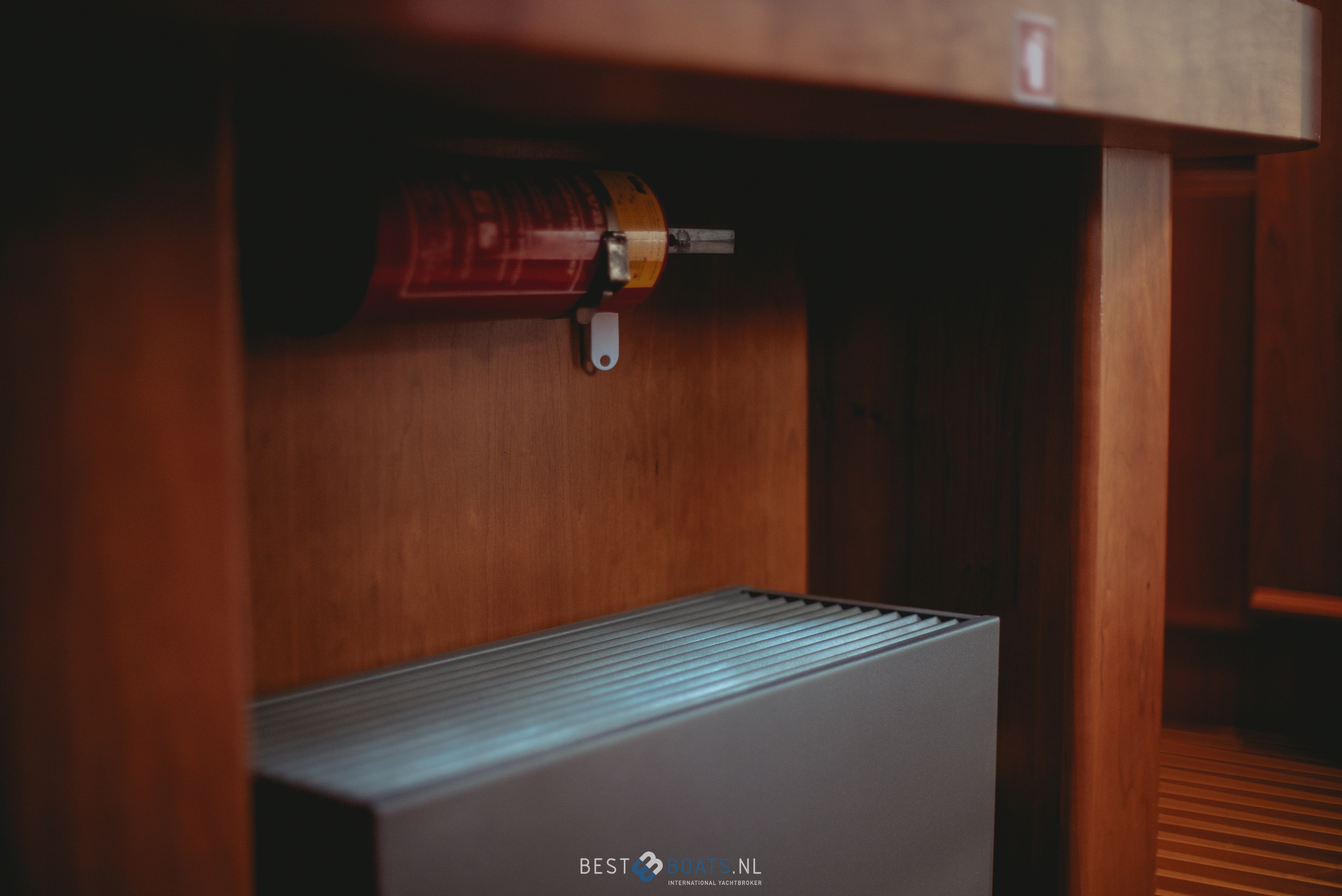

Eberspacher hot water heating with convectors, 1 convector in the VK, 1 in the dinette, 2 in the salon, 1 in the AK and 1 towel radiator in the toilet room AK
< >

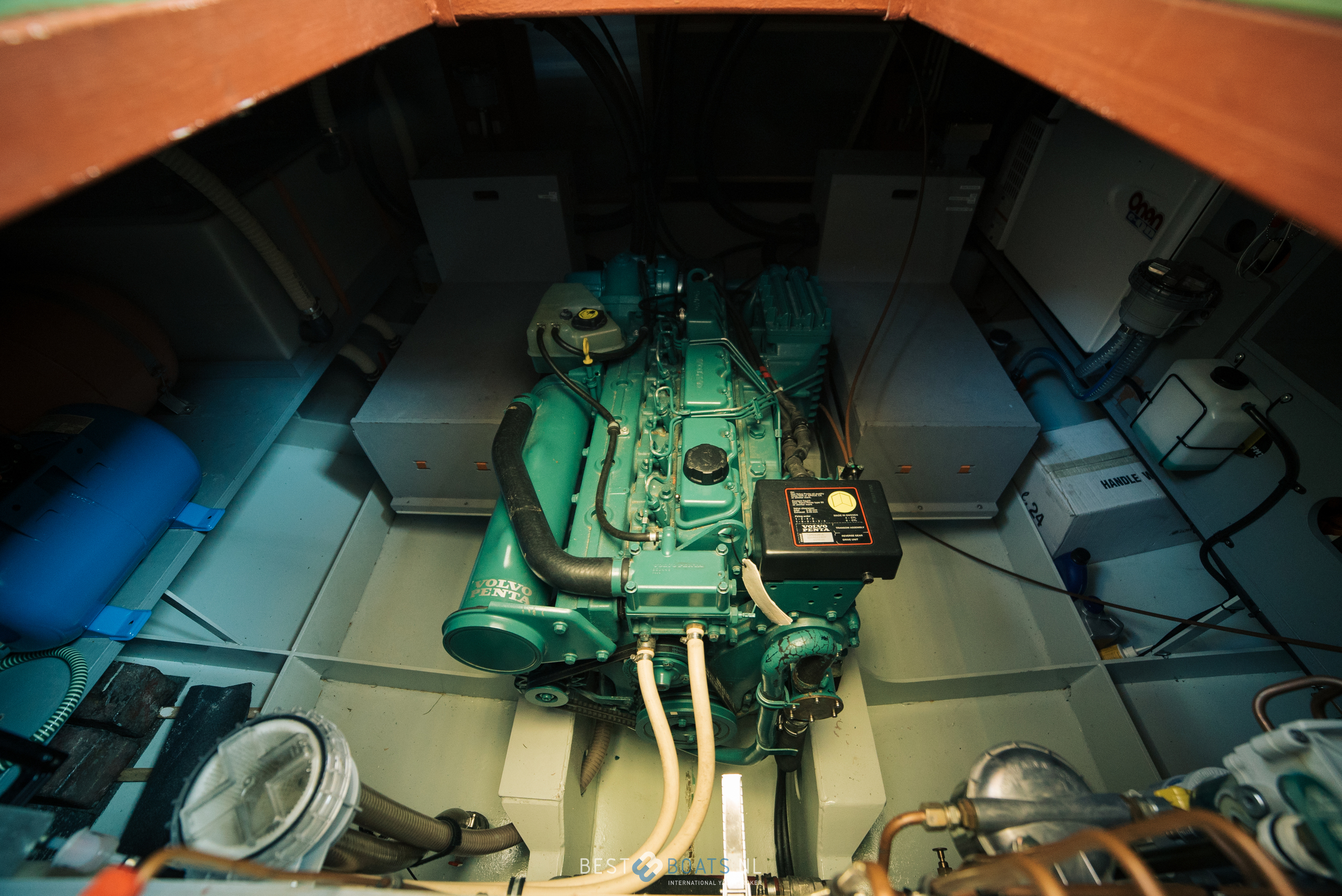

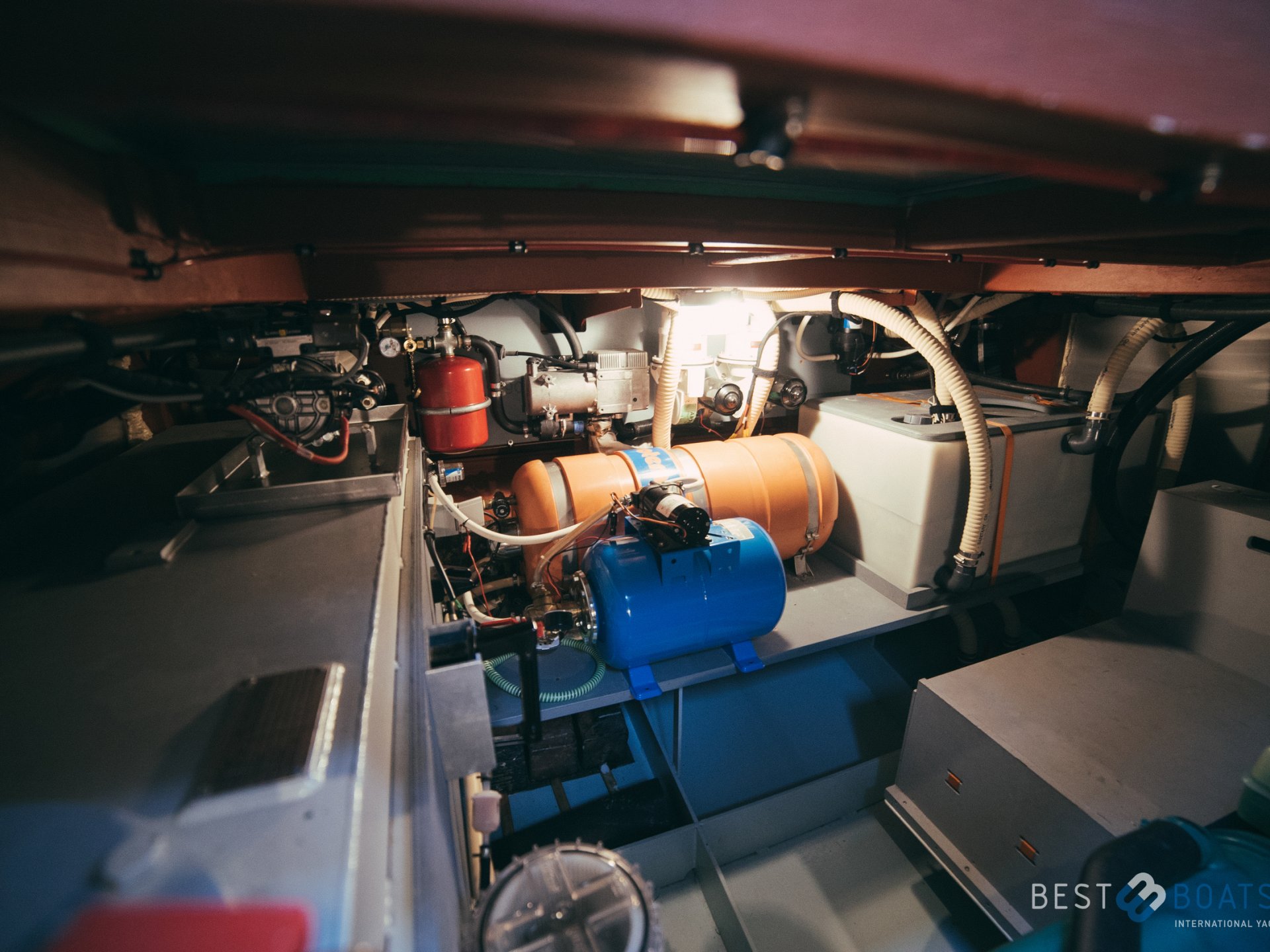

Engine, Electrics

Engine, Electrics

Number of identical engines
1
Starting type
Electric
Type
Inboard

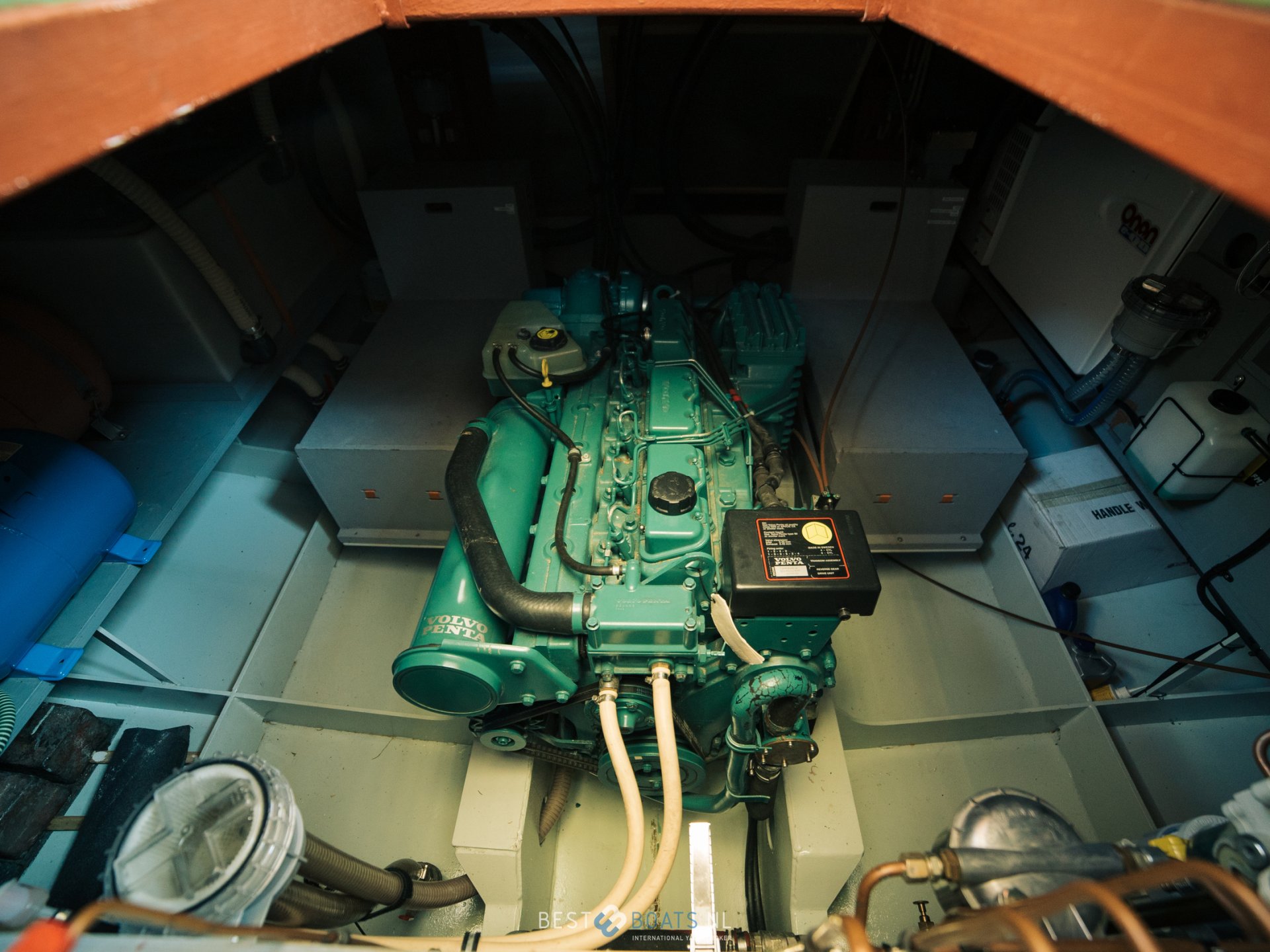

Brand
Volvo Penta
Model
TAMD-41M
Year
2002
Number of cylinders
6
Power
170 hp
Hours counter
✓
Engine hours
3600
Fuel
Diesel
Fuel consumption
5 Litre/hour
At about 1500 rpm
Transmission
Shaft
Propulsion
Propellor
Hydrolubricated propeller shaft system with homokinetic couplings, thrust bearing, special low-noise bronze propeller.
Cooling system
Indirect
Intercooling
Fuel tanks
2
2x 580 litres
Total fuel tank(s) capacity
1160 Liter
Fuel tank material
Steel
Max speed
15 km/h
Cruising speed
13 km/h
Fuel tank gauge
✓ VDO
Fuel level glass mounted on the tank

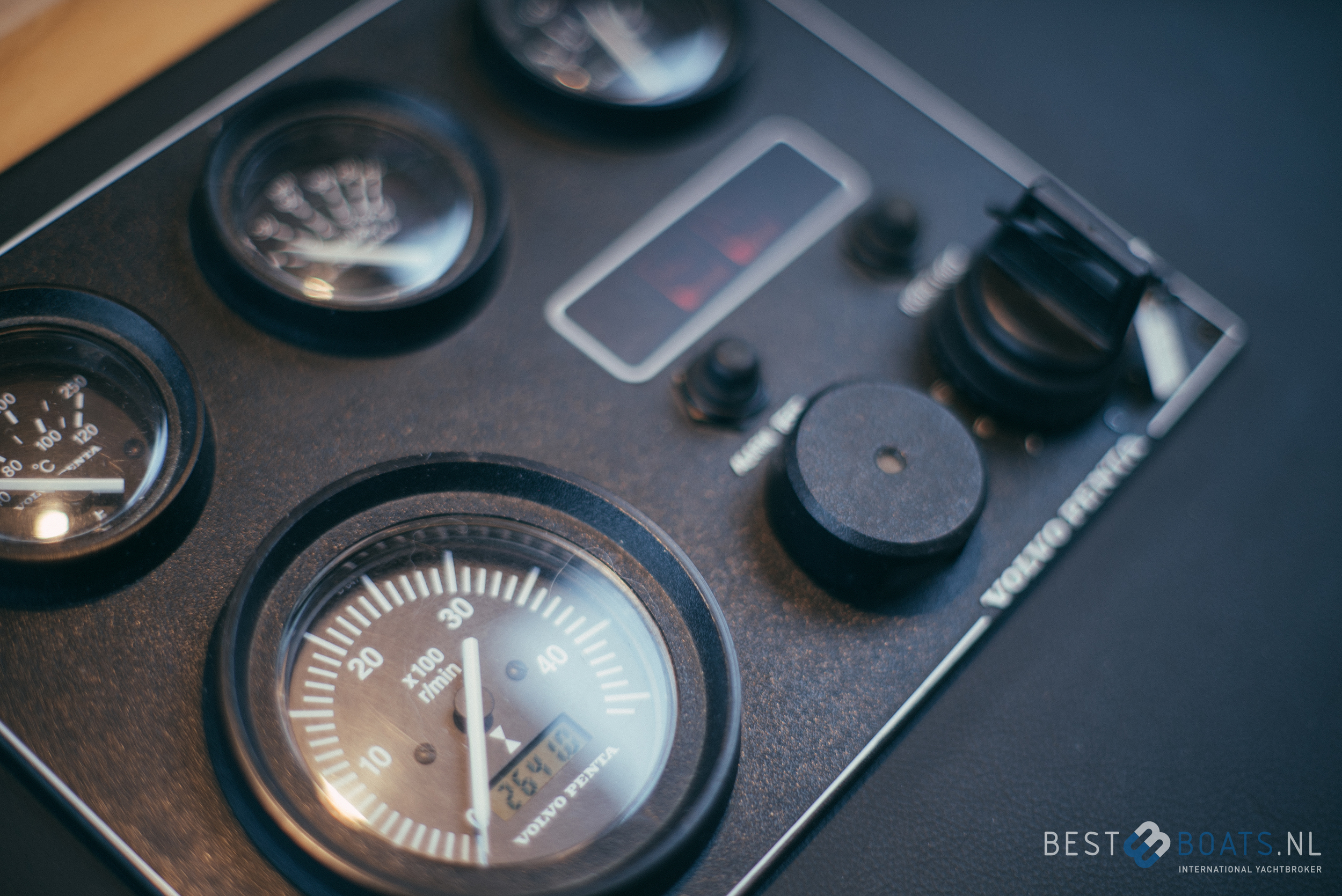

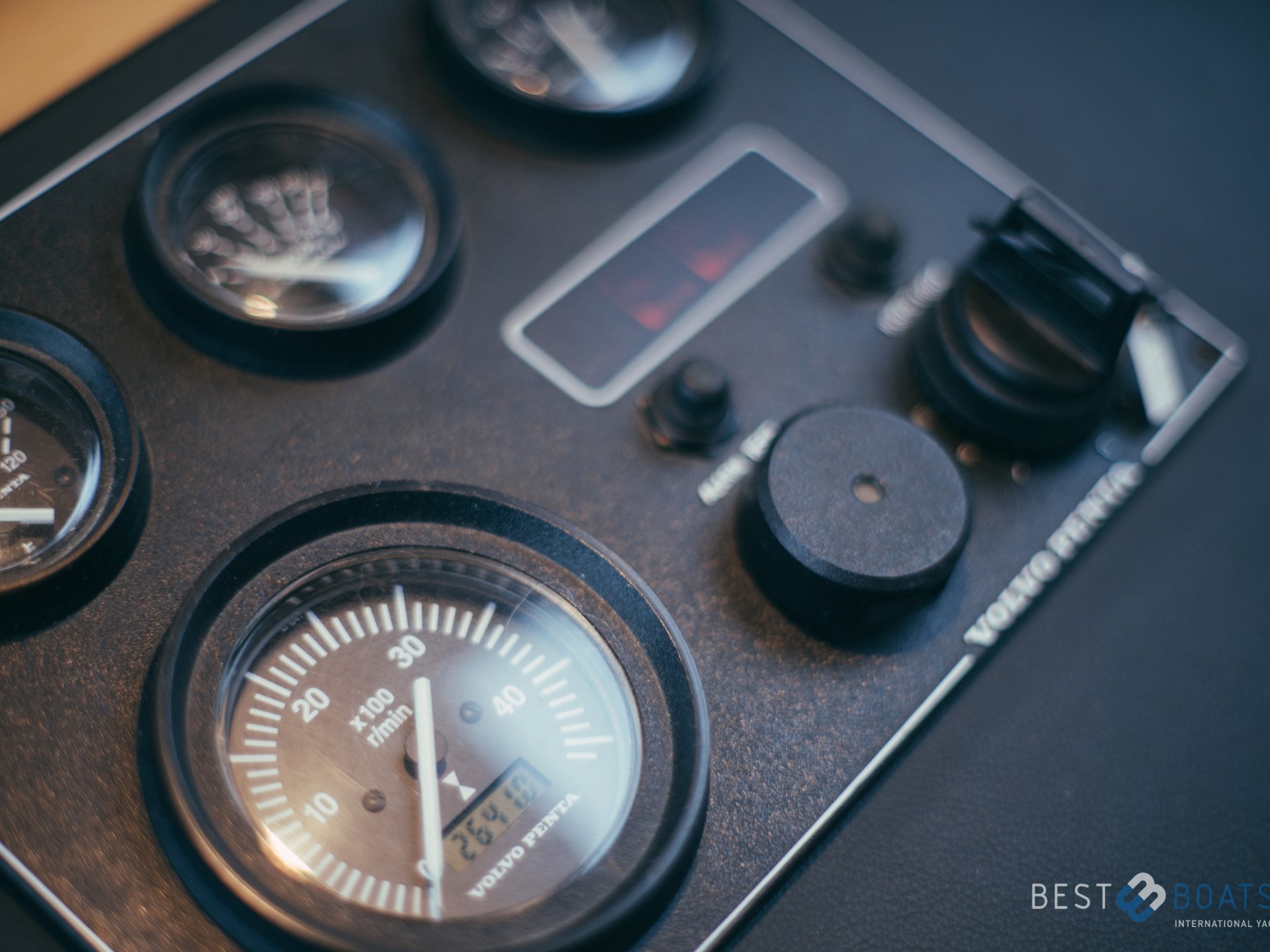

Tachometer
Volvo Penta
Volvo Penta
Oil pressure gauge
Volvo Penta
Volvo Penta
Temperature gauge
Volvo Penta
Volvo Penta
Bow thruster
Electric
24V bow thruster type Vetus 13024
Stern thruster
Electric
24V bow thruster type Vetus 13024
Battery
x Ah
Batteries divided into 2 battery groups, starter (engine, bow thruster) 12V 4x AH, on board 12V 3x 110 Ah, 1x extra mains battery 110A
Battery charger
100 A
Mastervolt Mas 12/60 (1x 60A) with charging station, control panel and shore power control panel
Alternator
65 A
ca 65 AH

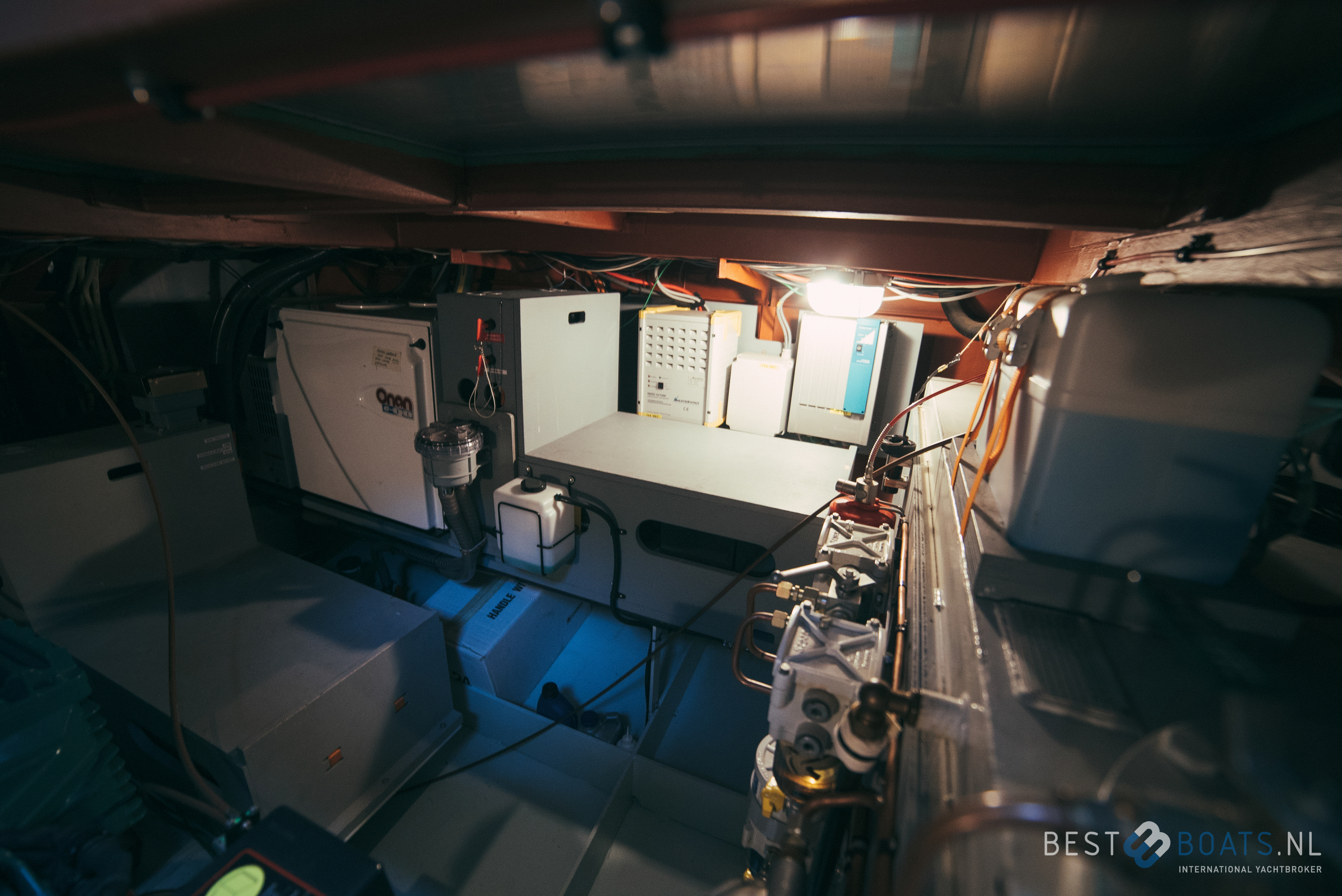

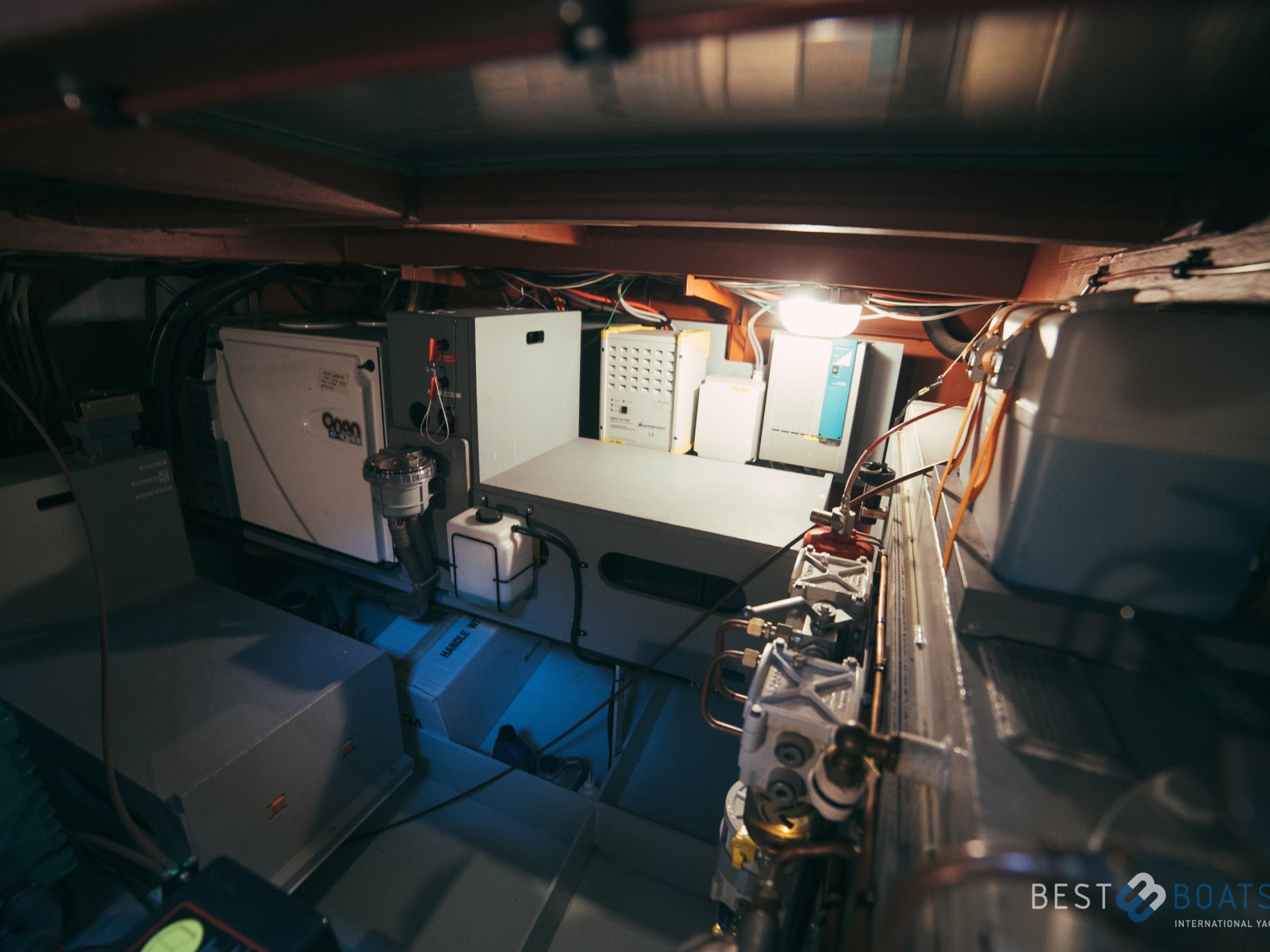

Generator
Onan 7 kW
Onan 7.5kw generator
Inverter
✓
Inverter Matervolt 12V/2000
Voltmeter
✓
yes
Shore power
✓
230V, residual current circuit breaker plus automatic fuses, secure end groups with shore power indication
Shore power cable
✓
Solar panel
Watt
Voltage
✓ 12V ✓ 220V
12V/220Volt
< >
Navigation and electronics

Navigation and electronics

Compass
✓ Raymarine ST 60 Tridata
Log/speed
Raymarine ST 60 Tridata
Depth gauge
Raymarine ST 60 Tridata
Wind gauge
Raymarine ST 60
Navigation lights
✓ According to standard
Rudder position indicator
✓ Raymarine ST 60 Tridata
Autopilot
✓ Raymarine ST 6001
Remote control (autopilot) included
Chart plotter
✓ Raymarine RL70C

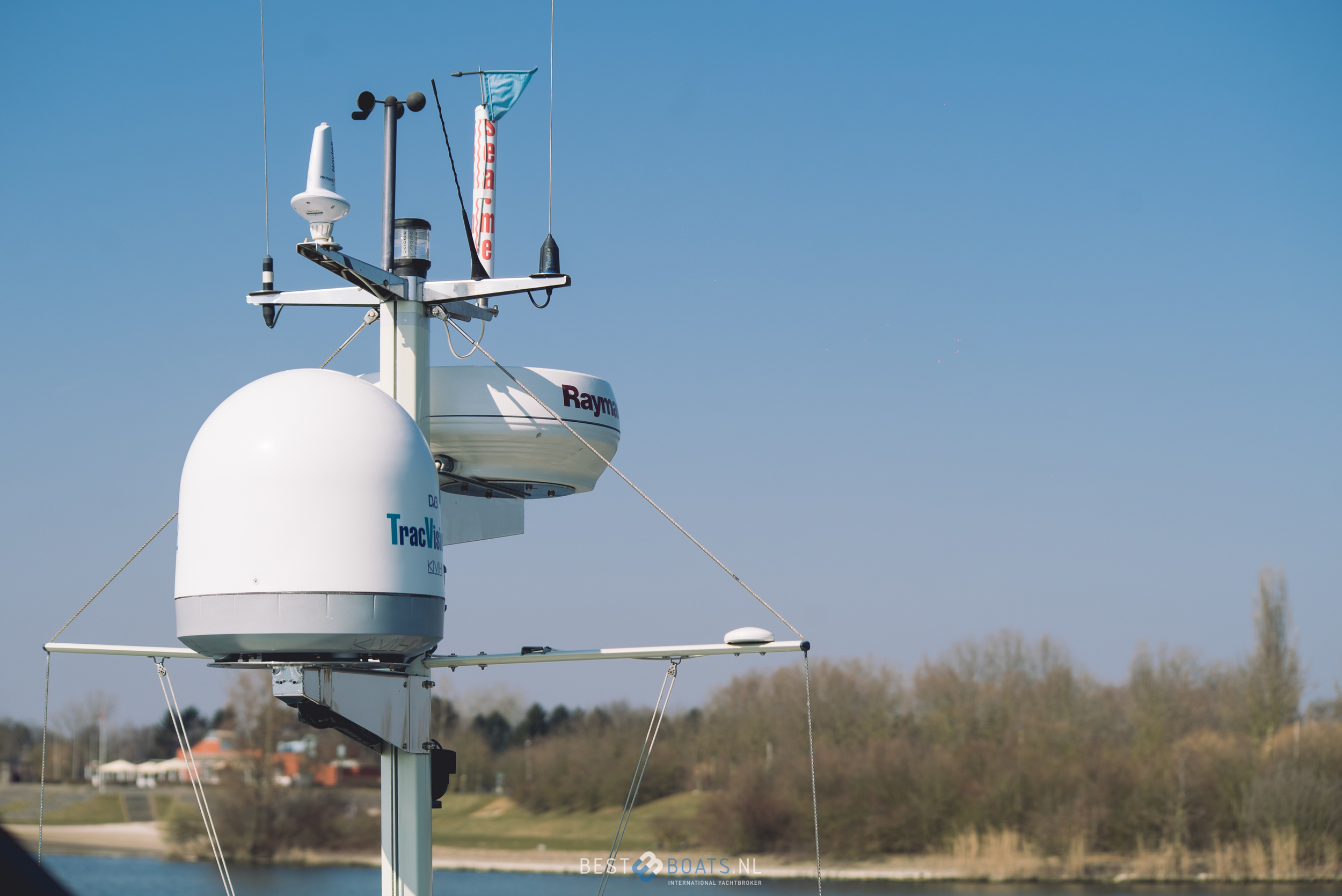

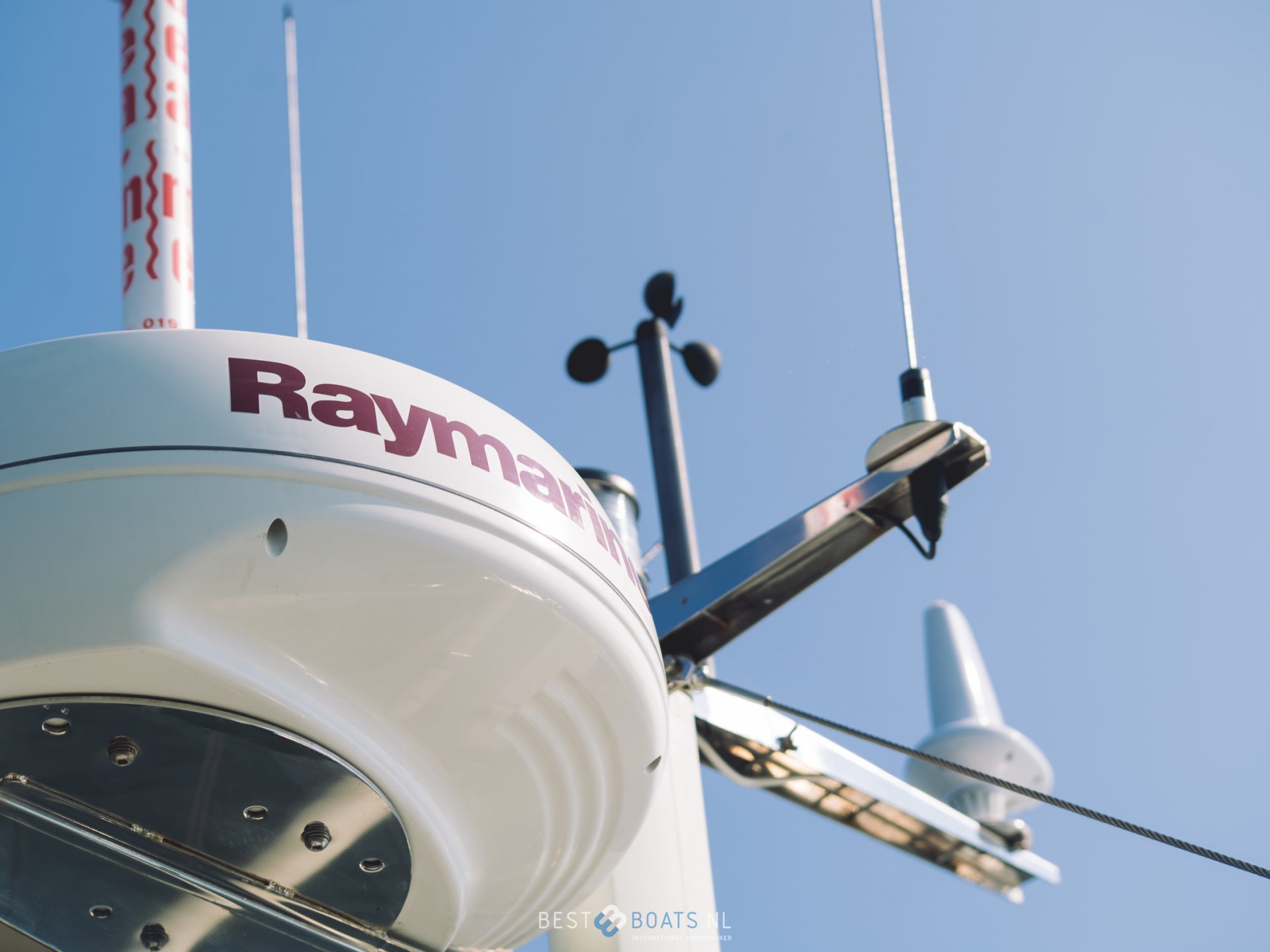

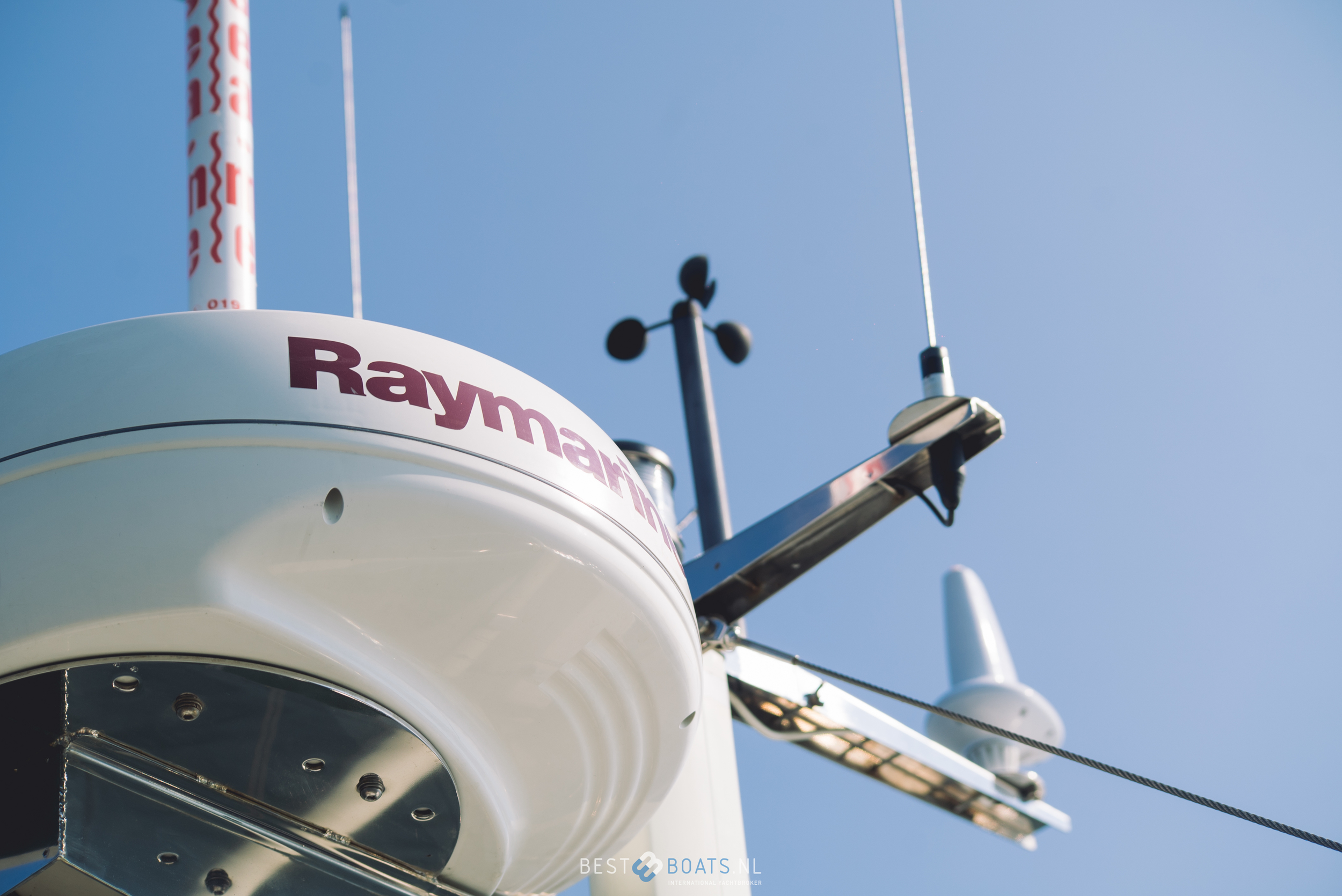

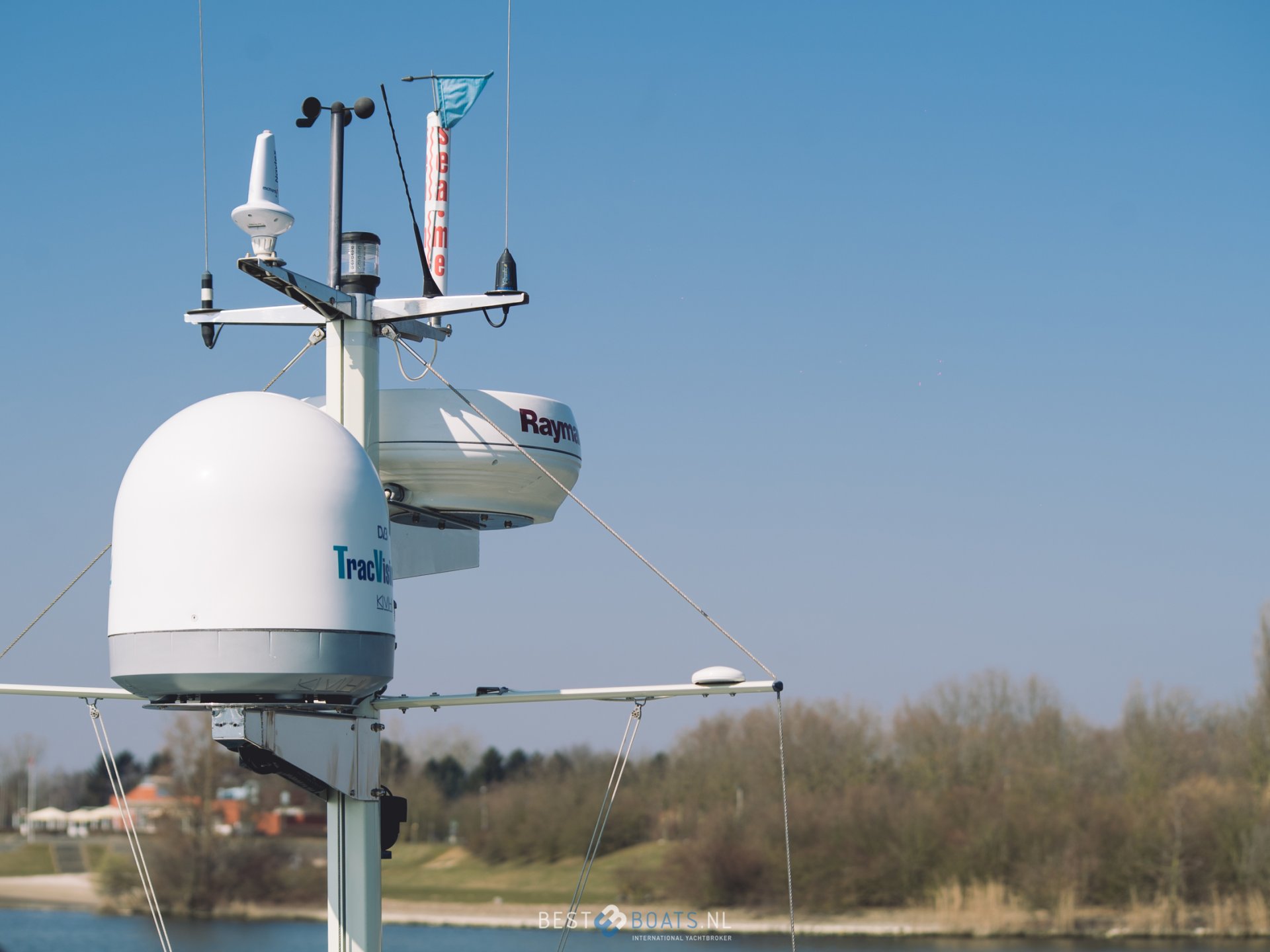

Radar
✓ Radar RL70C
VHF
✓ Raymarine
Raymarine 240E VHF-DSC with handset
Weatherfax/Navtex
-
Raymarine E85001 Sea Talk/NMEA/PC and McMurdo ICS Nav6plus Navtex
Comments

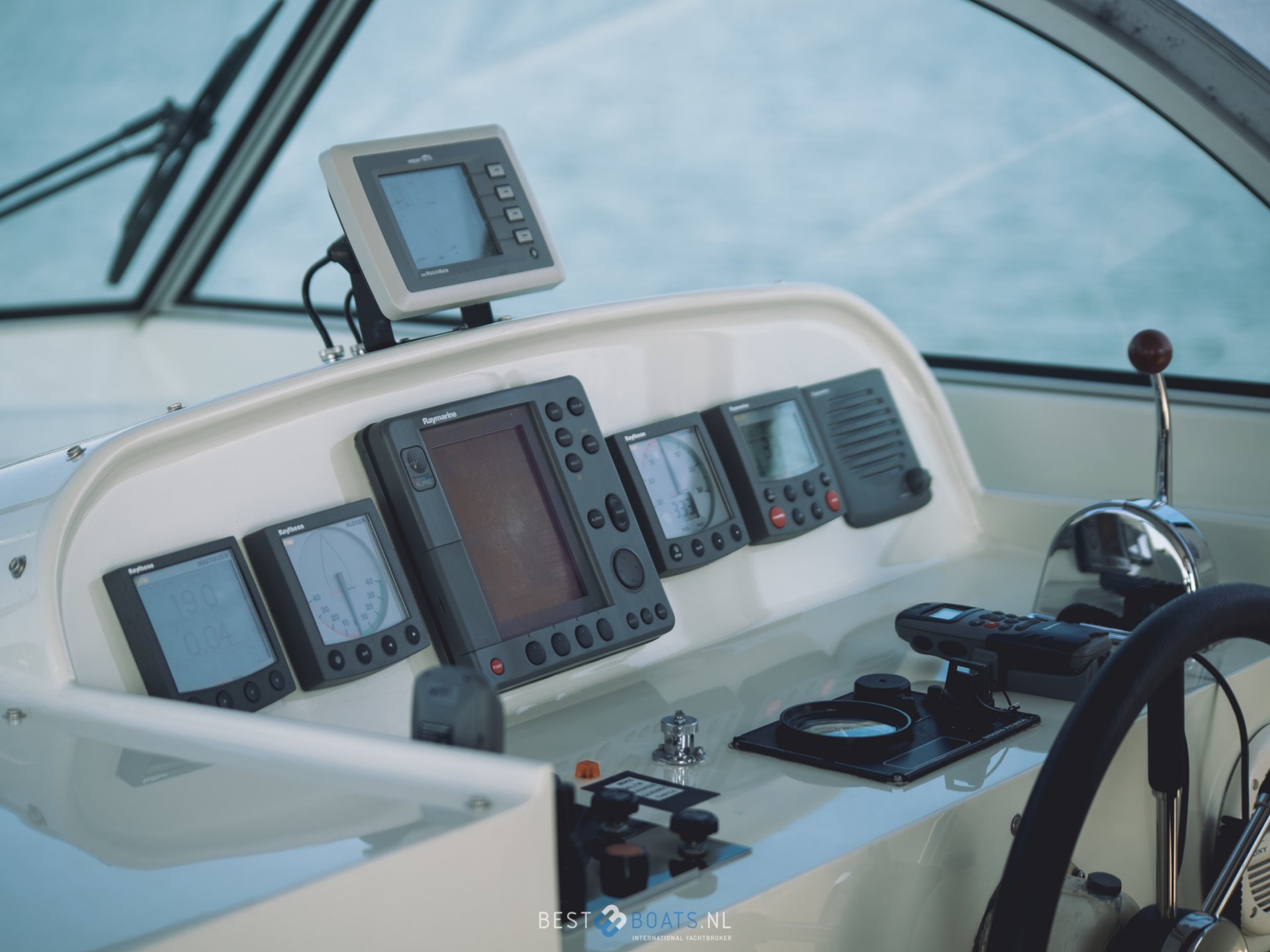

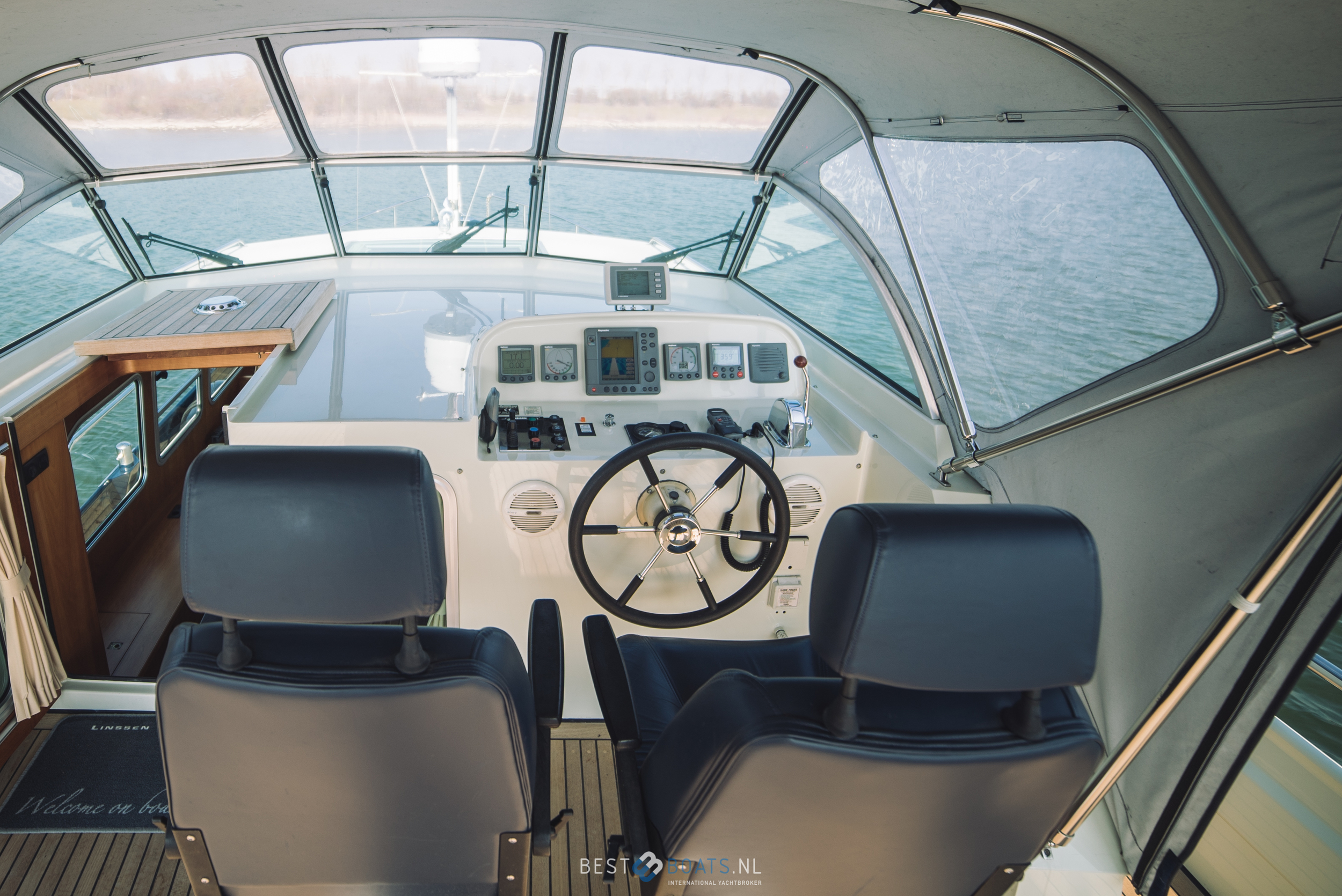

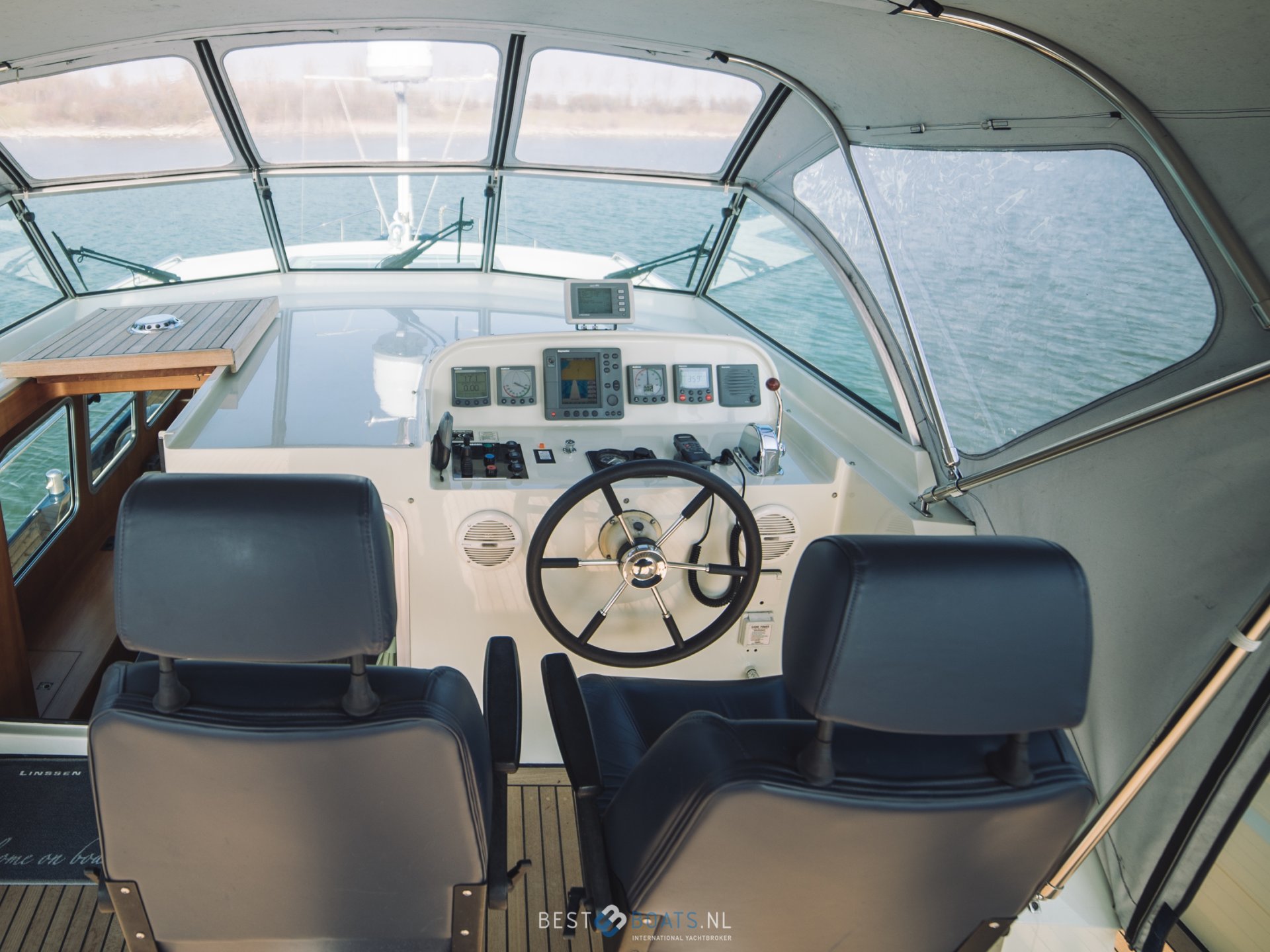

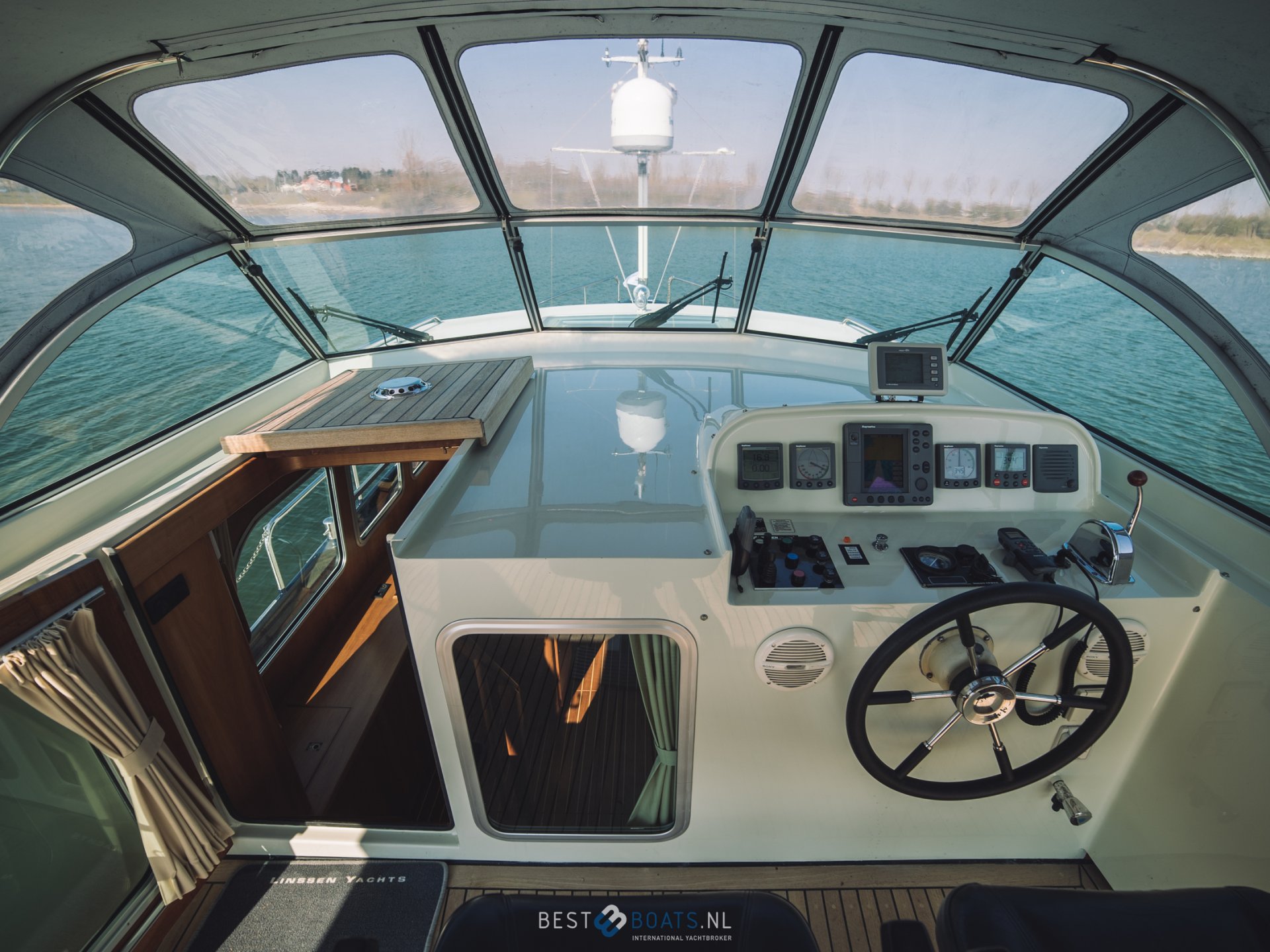

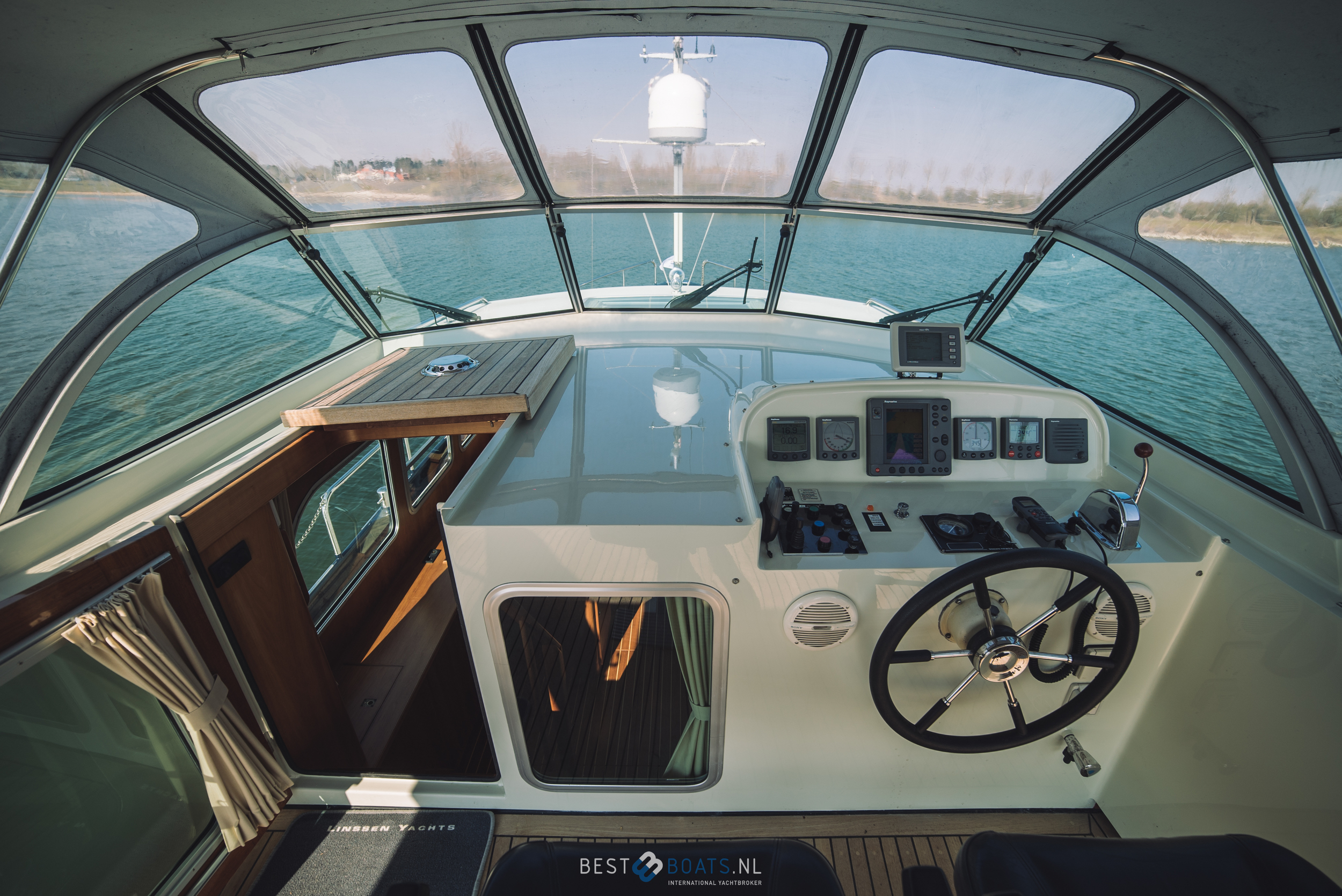

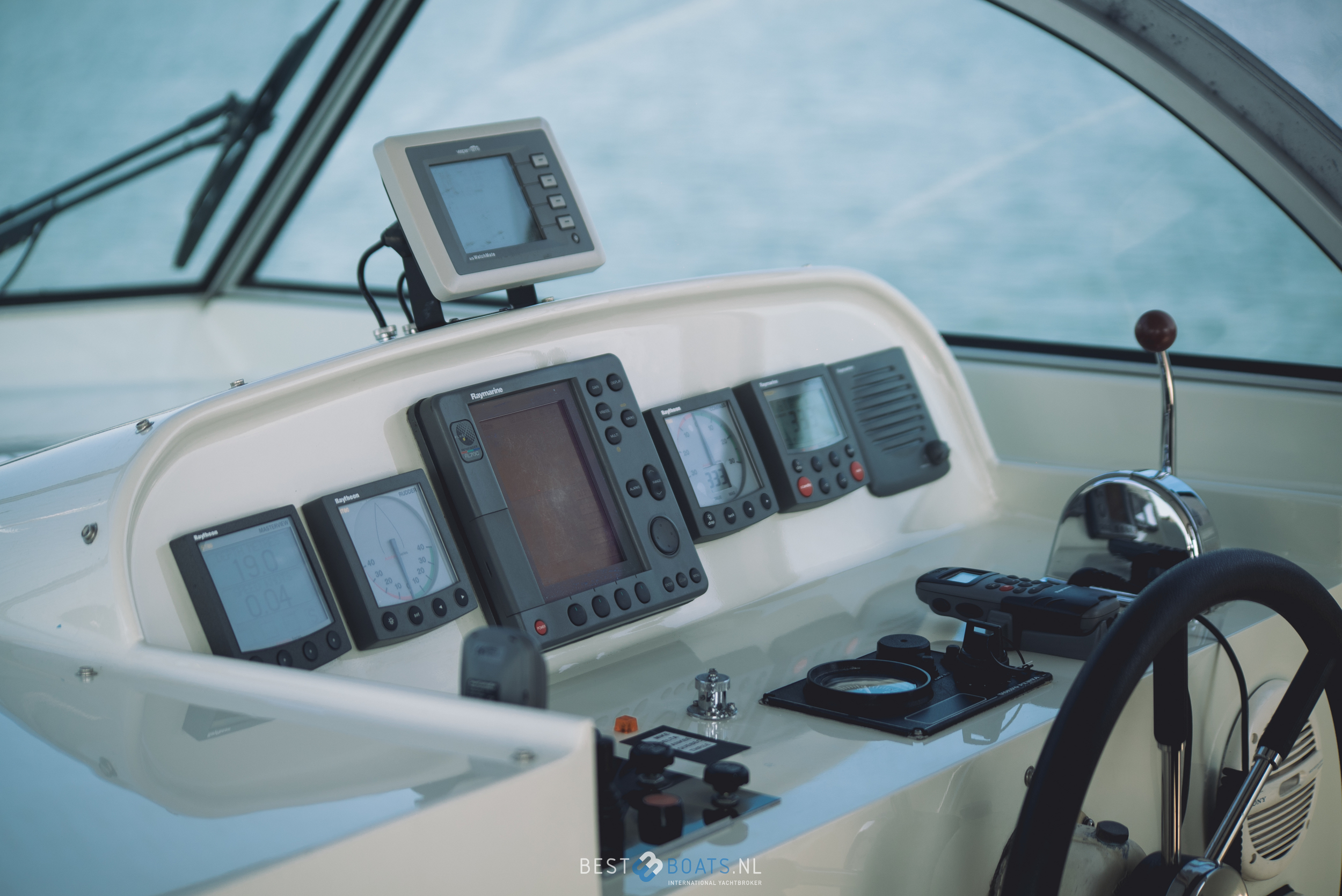

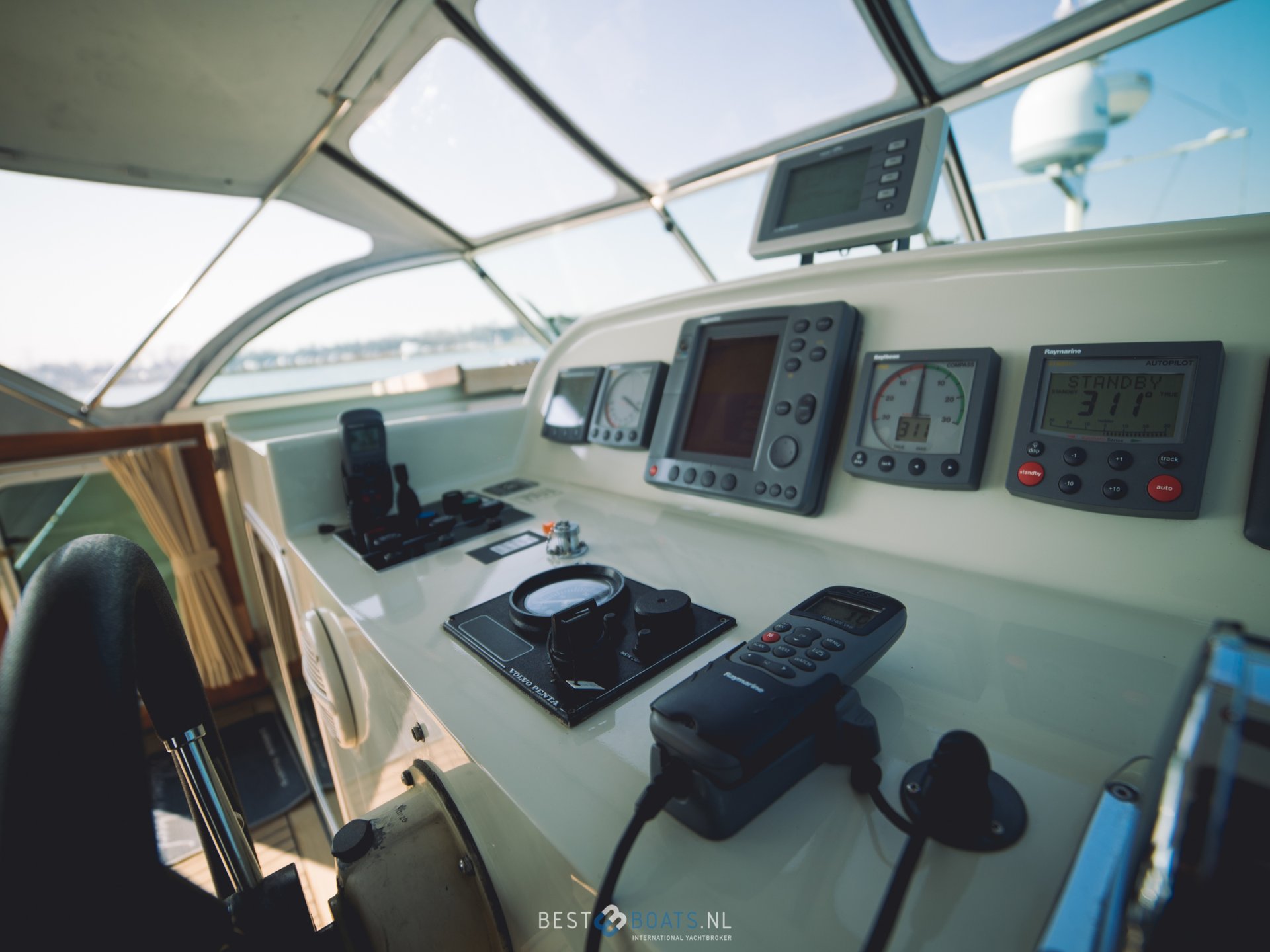

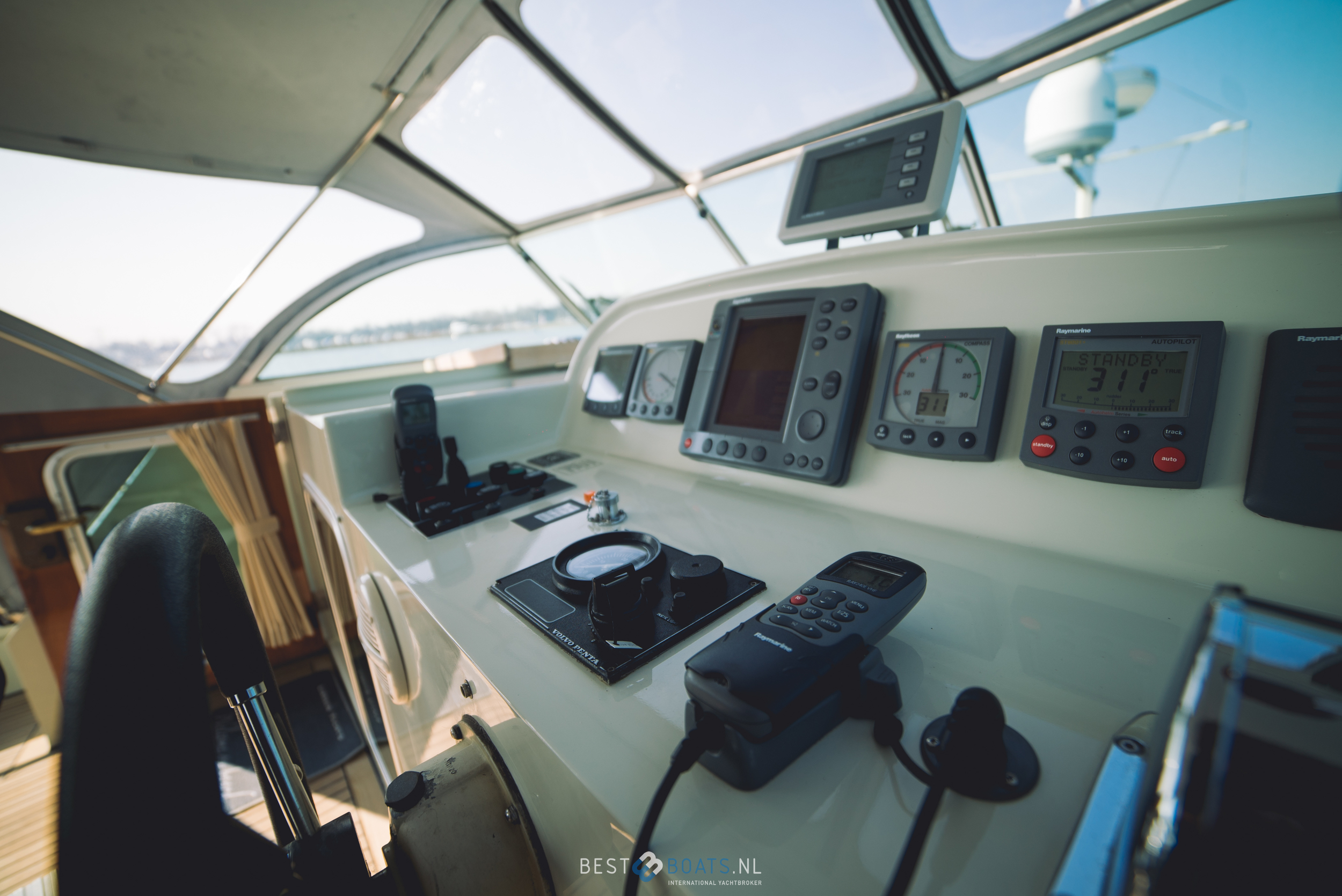

Inside and Outside steering position with a very complete Dashboard from Volvo Penta and extensive Raymarine Navigation: Raymarine ST 60 Tridata with subsidiary on helm, Autopilot, Raymarine ST 6001 with remote control, Radar RL70C, VHF radio Raymarine 240E VHF-DSC, Weatherfax/Navtex, Raymarine E85001 Sea Talk/NMEA/PC and McMurdo ICS Nav6plus Navtex, Chartplotter Raymarine RL70C.

< >
Deck equipment

Deck equipment

Anchors & material
2 x Bruce Galvanized
20 kg Bruce anchor with 100 meters chain, 15 kg Bruce anchor with 40 meters chain
Anchor connection
Chain

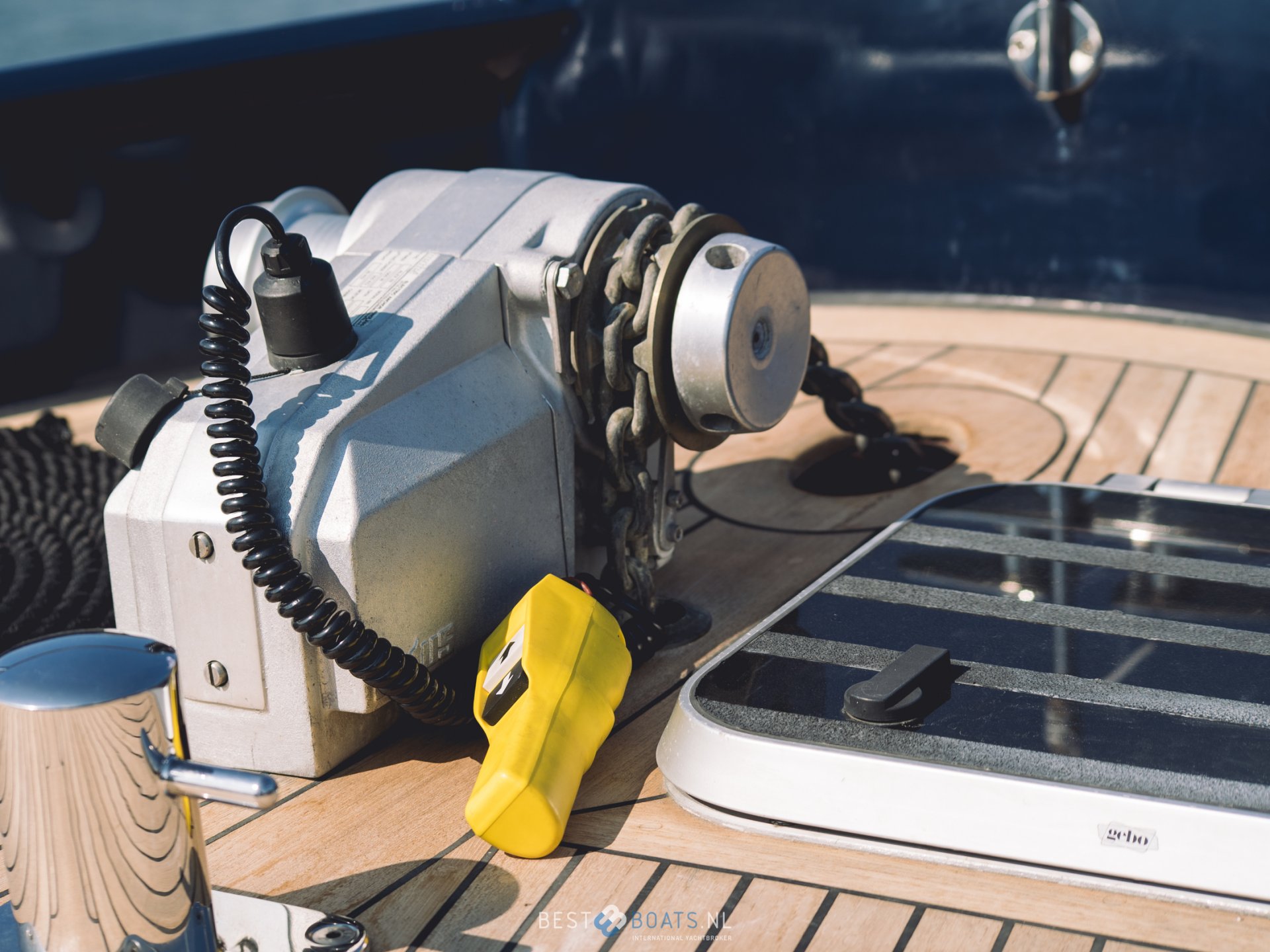

Anchor windlass
Electric

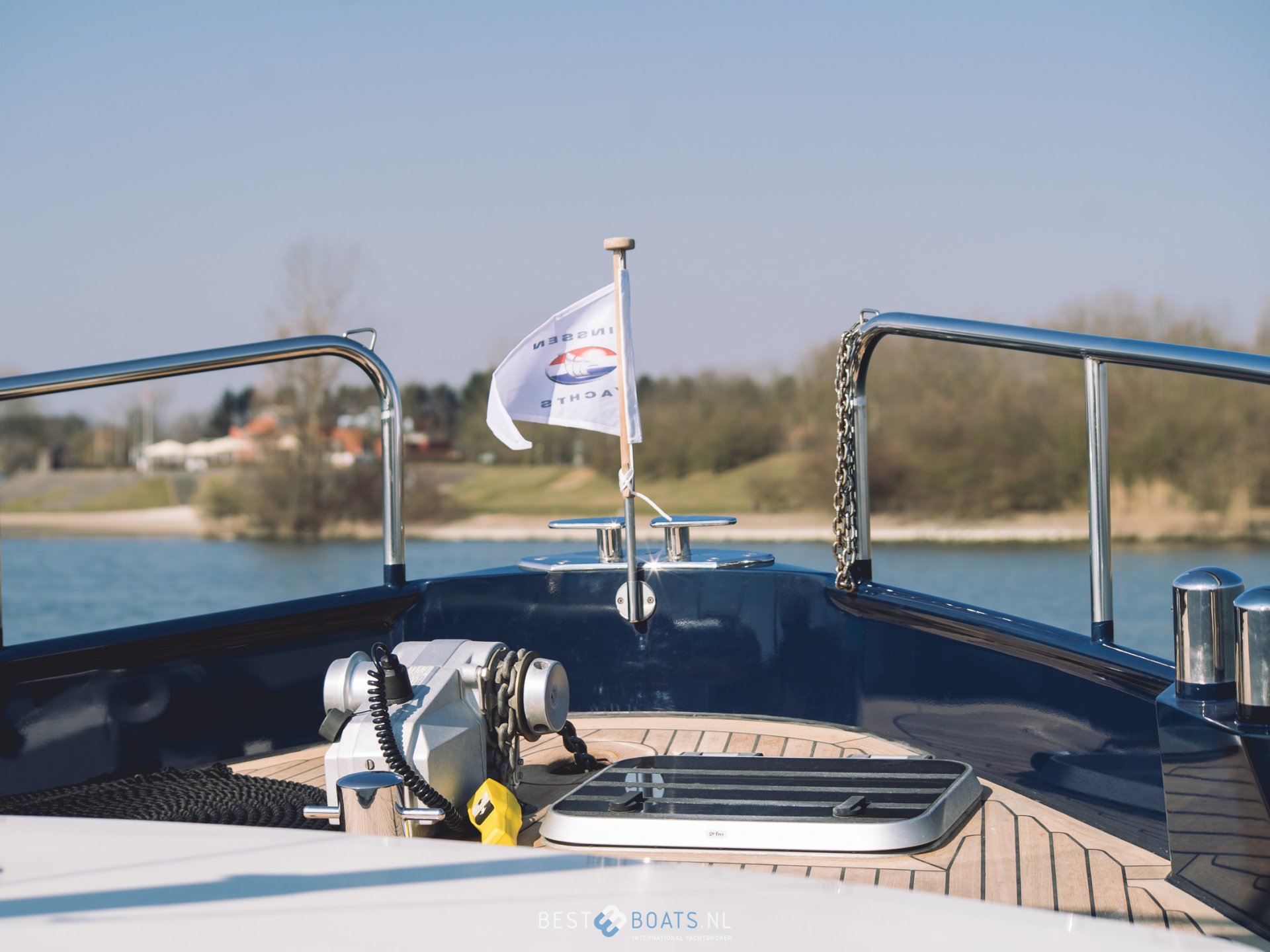

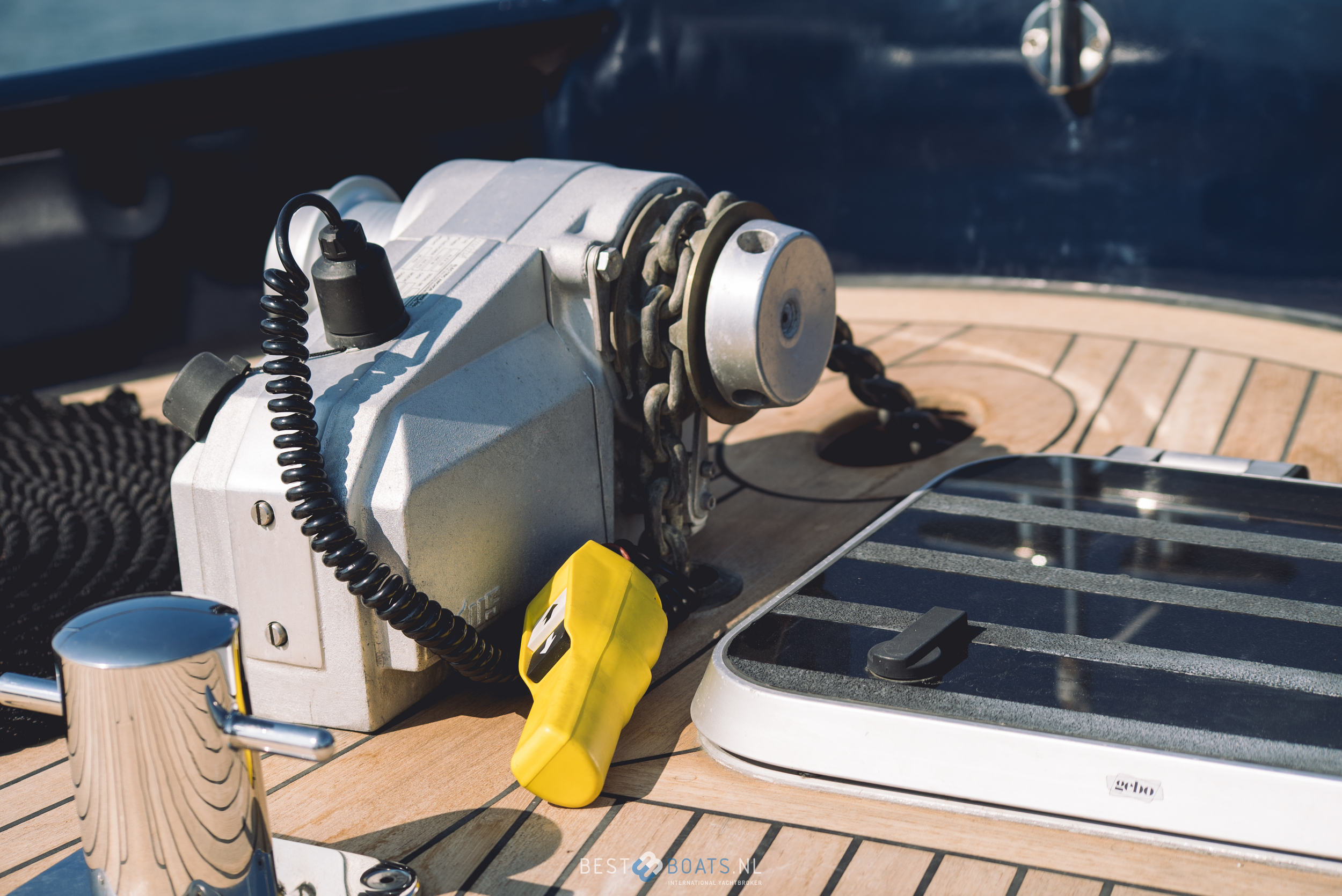

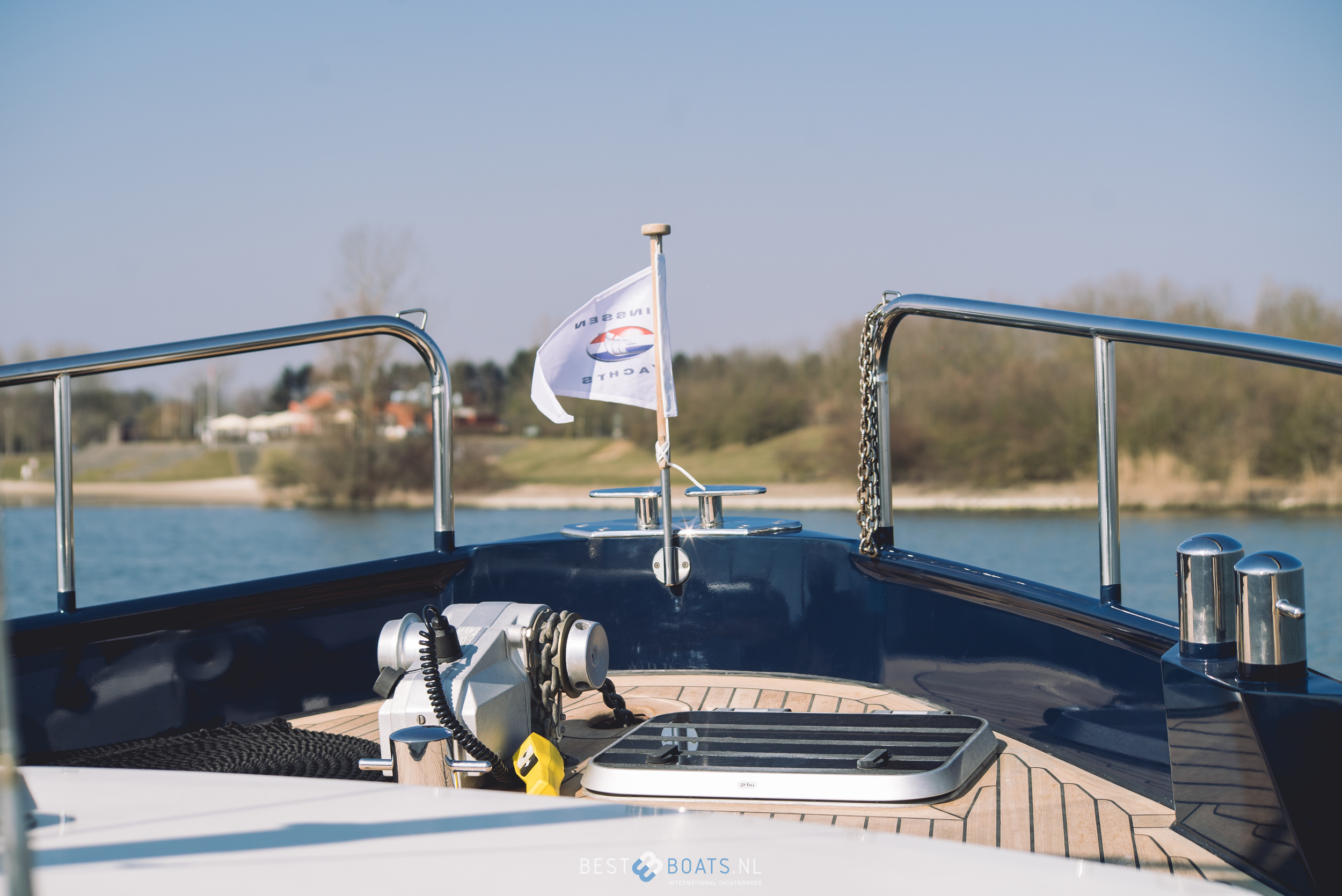

Electric anchor winch type Alexander III 1000W

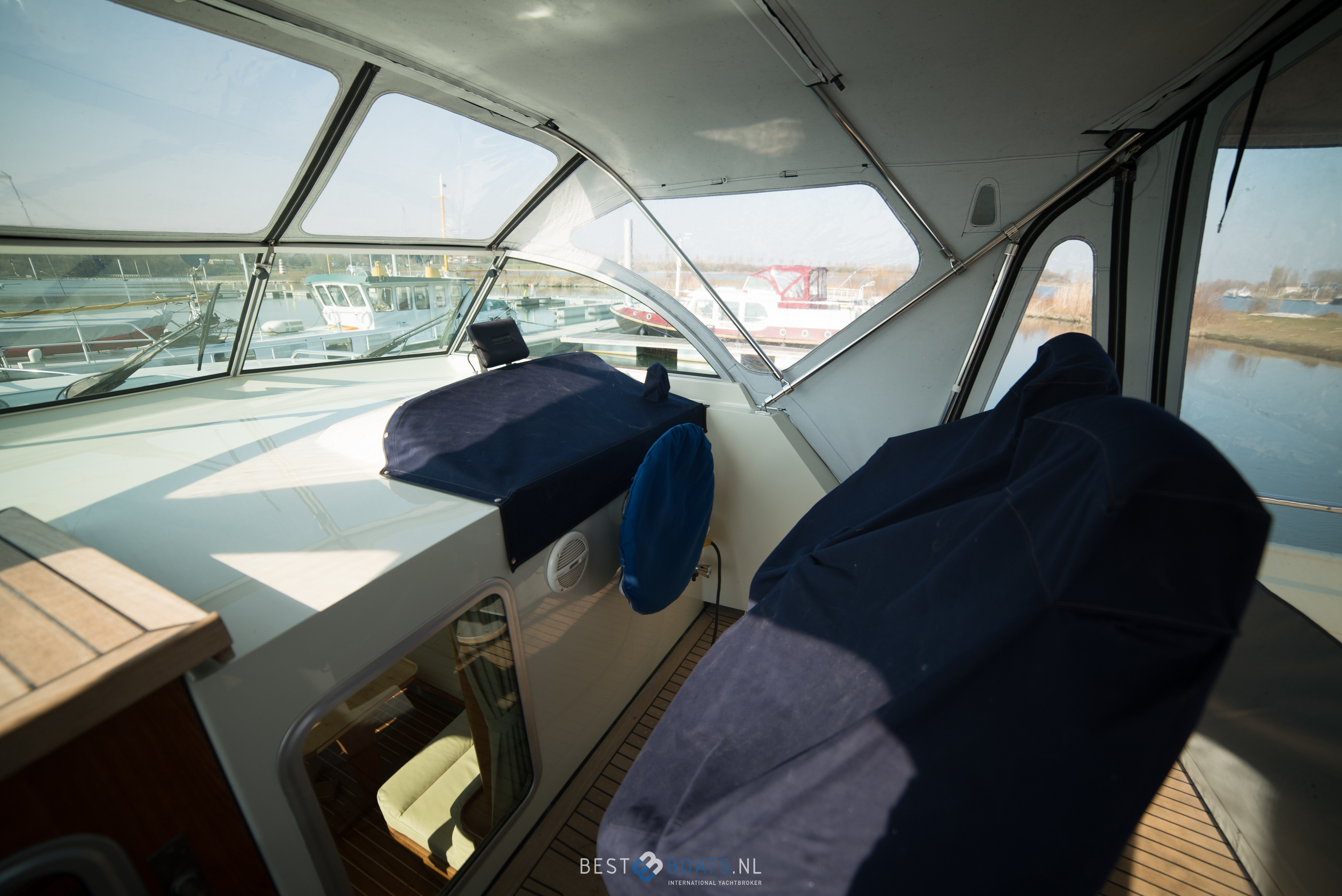

Spray hood
✓
Bimini
✓

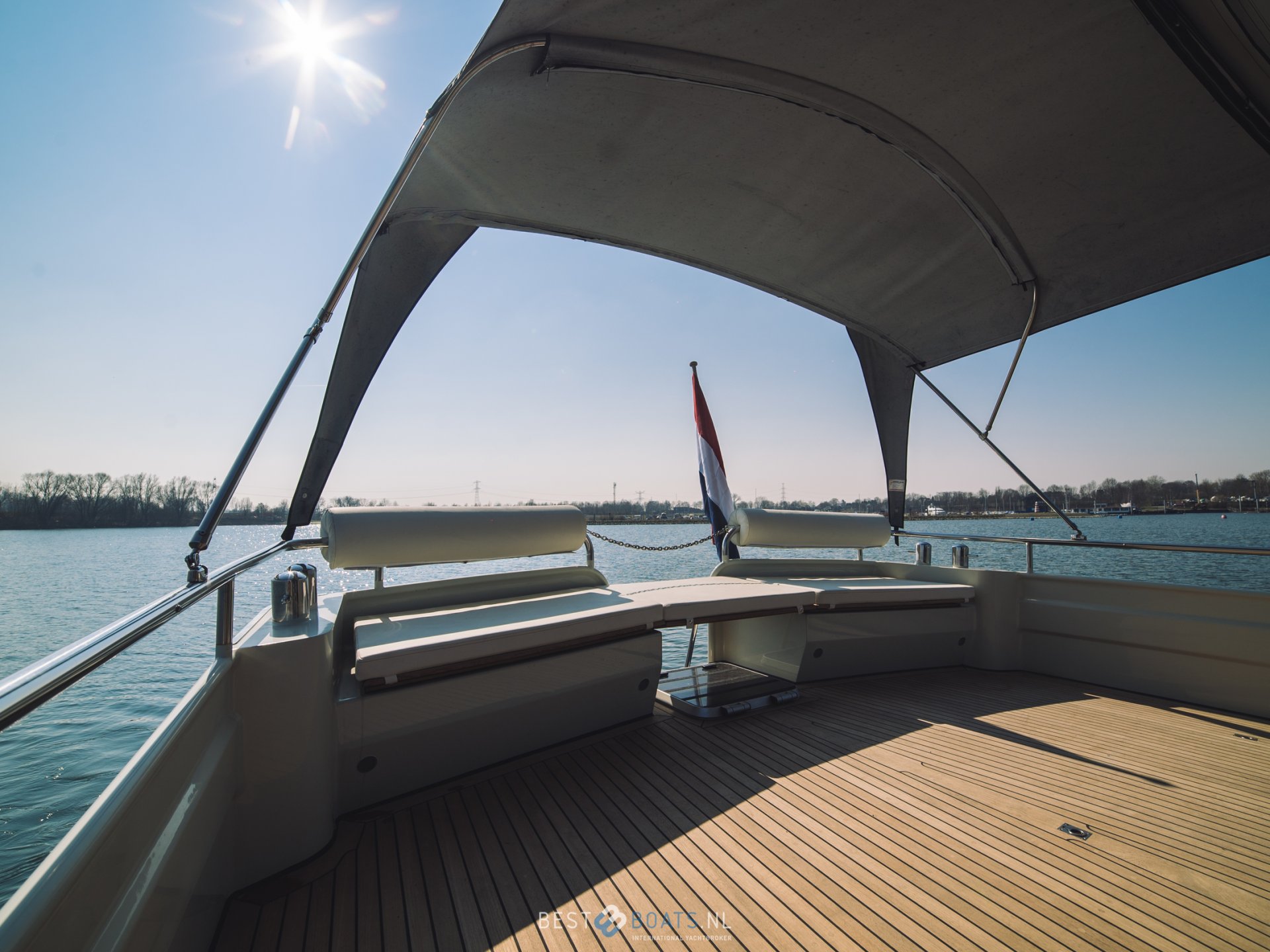

Convertible top renewed in 2016 including a bimini over the aft deck fitted in a beautiful dark blue Navy color.
Outdoor cushions
✓

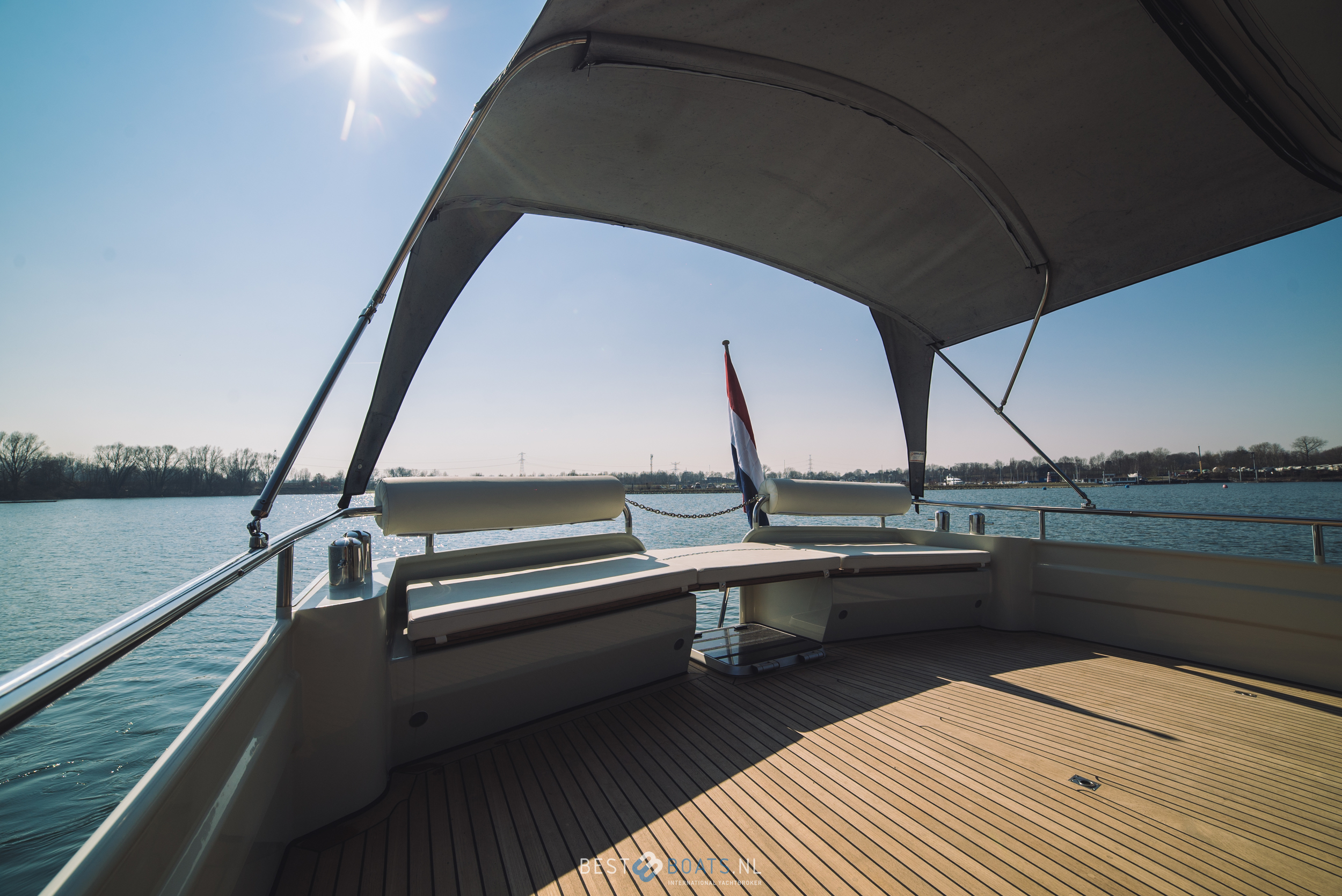

Integrated deck chests, U-shaped rear bench fitted with teak shutters with gas pressure springs and cushions.The cushions of the deck chest&nbsp;and the back rolls on the rear deck&nbsp;were reupholstered in 2016 with Skai leather upholstery
Boat cover
-
Sunscreens Salon windows
Sea rails
✓
Stainless steel sea rail with railing chains
Swimming platform
✓
With outdoor shower with hot and cold water, at bathing platform a built-in cassette ladder (swim ladder)
Swimming ladder
✓
Stainless steel bathing ladder
Sail Lowering System
-

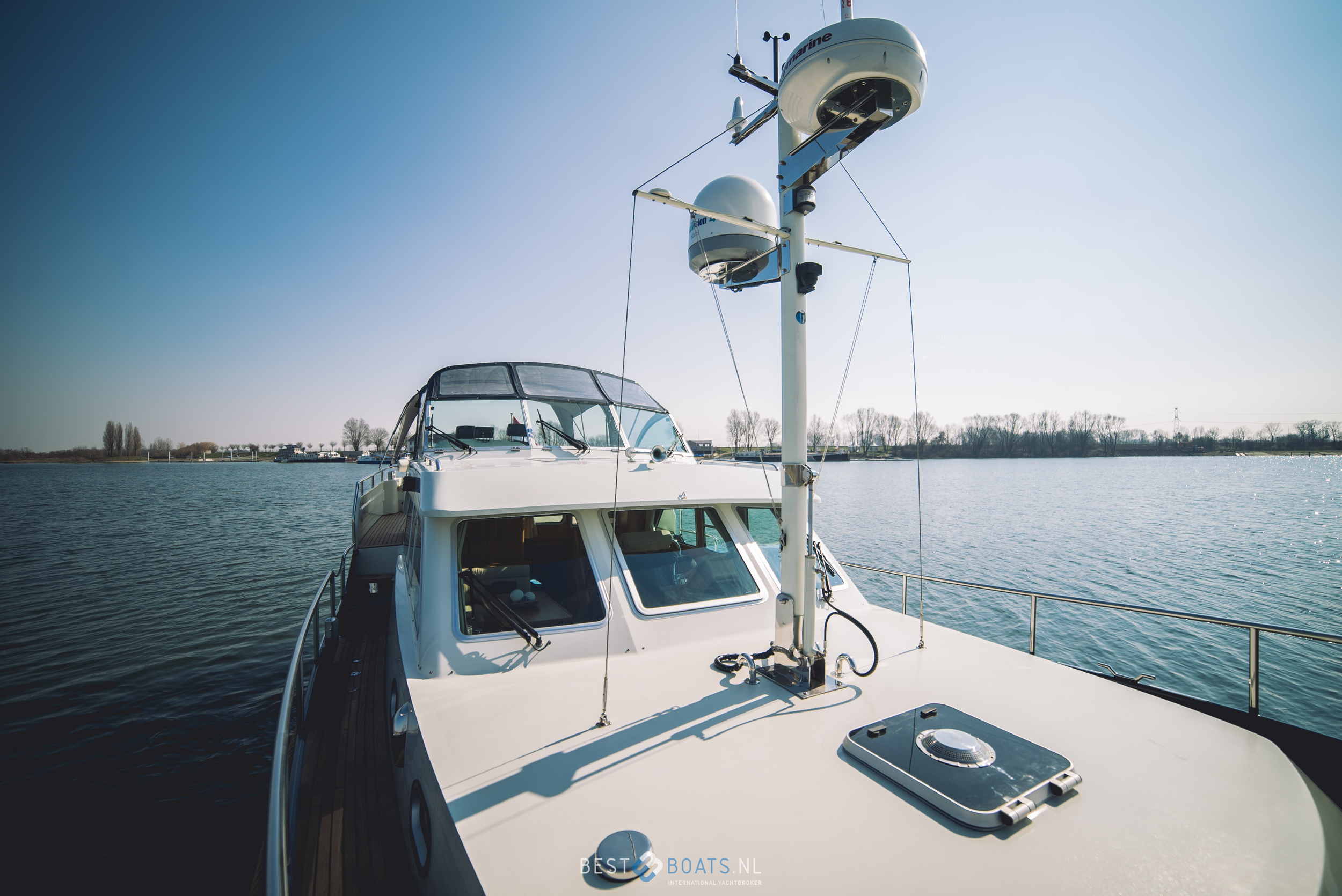

Hydraulic mast lowering system incl. controls on outside steering position
Teak deck
✓
Fenders, lines
✓
Complete set on board
Comments

A complete winter tent was built for this boat, only used once, original from the Linssen yachts supplier.
Winter tent, current value approx. € 7.500,00

< >
Safety

Safety

Bilge pump
✓ Electric
Electric bilge pump in engine room with float switch and alarm

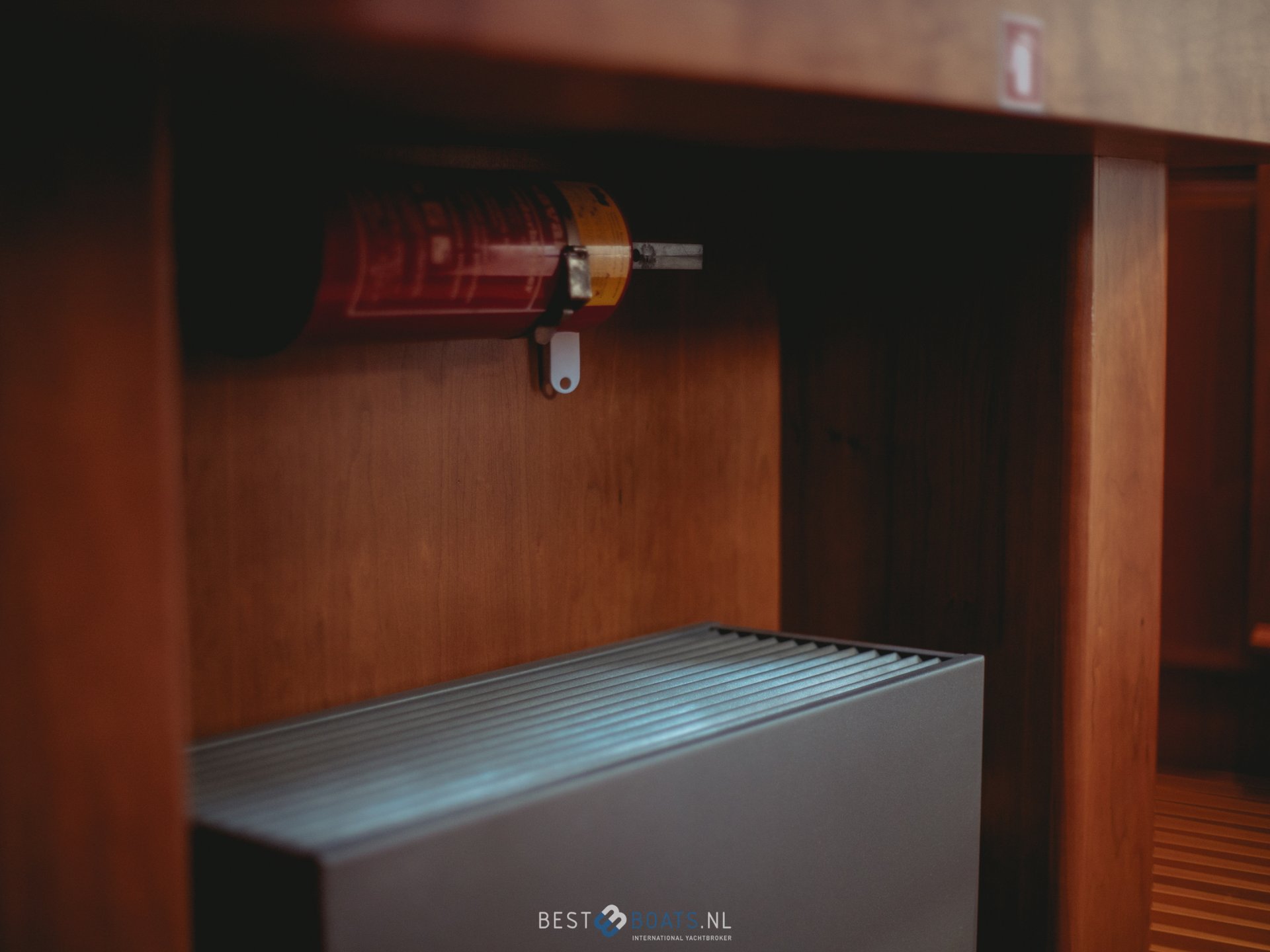

Fire extinguisher
✓
Automatic fire extinguishing system in engine room
Radar reflector
✓
< >
