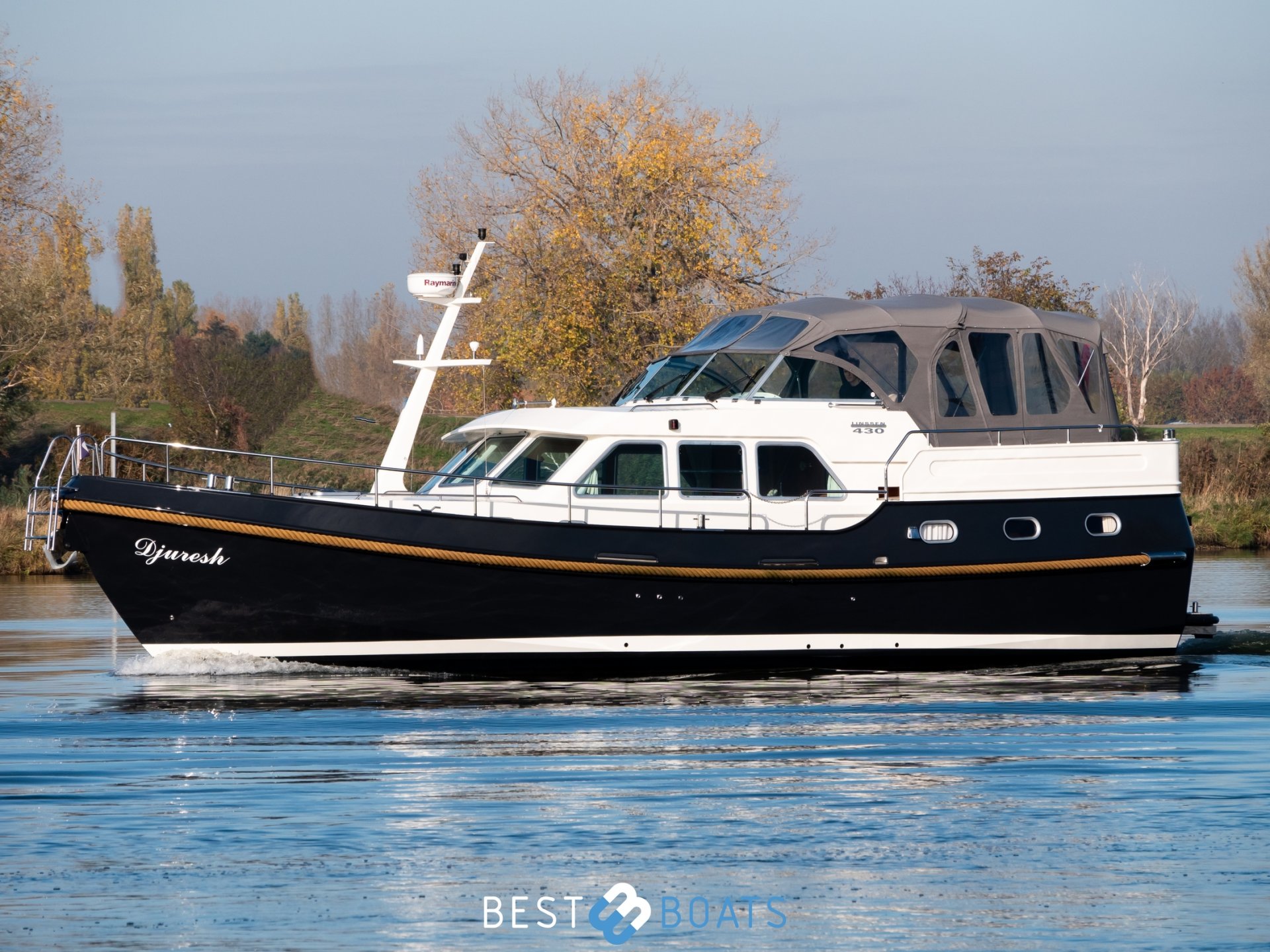

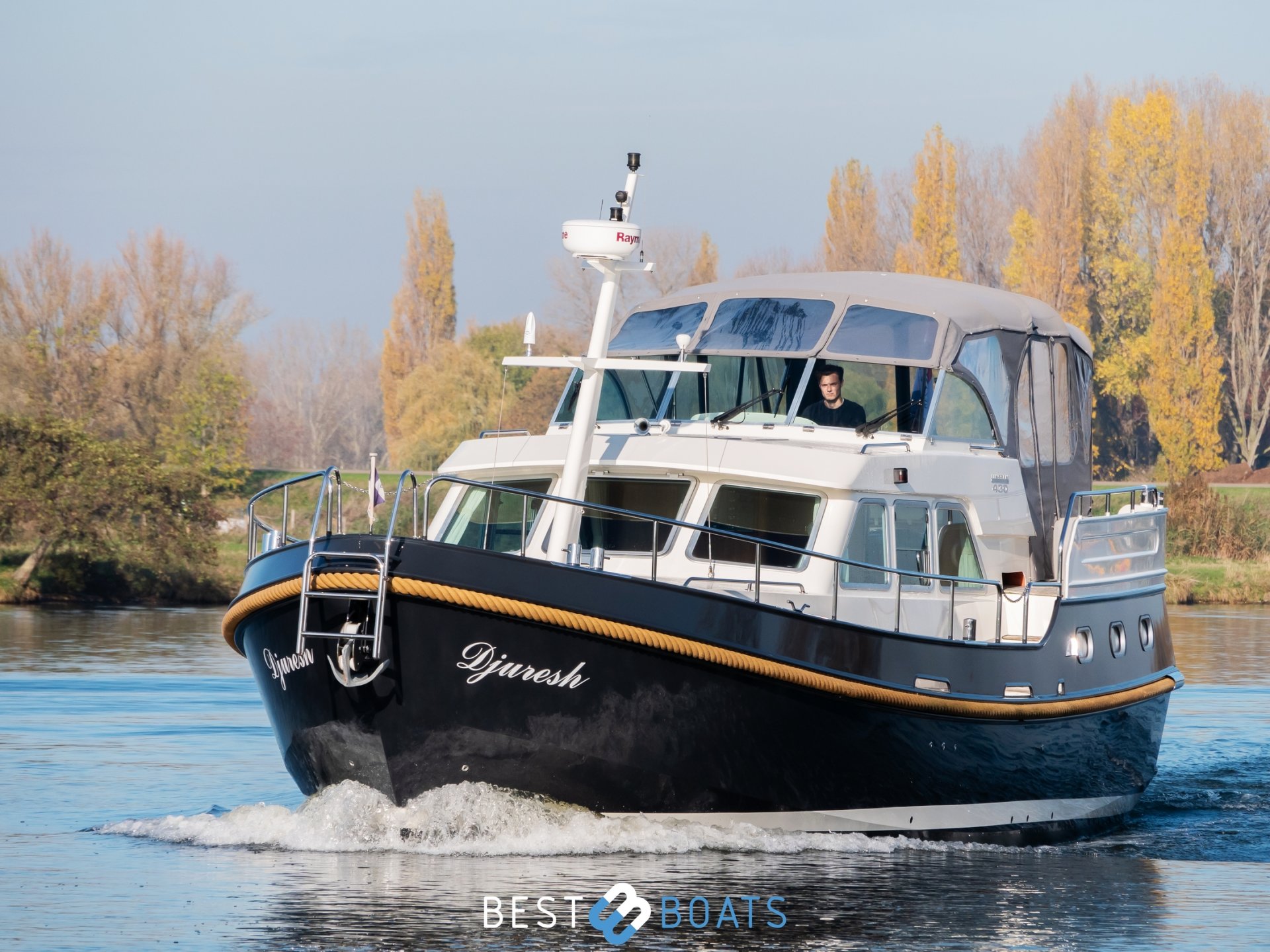

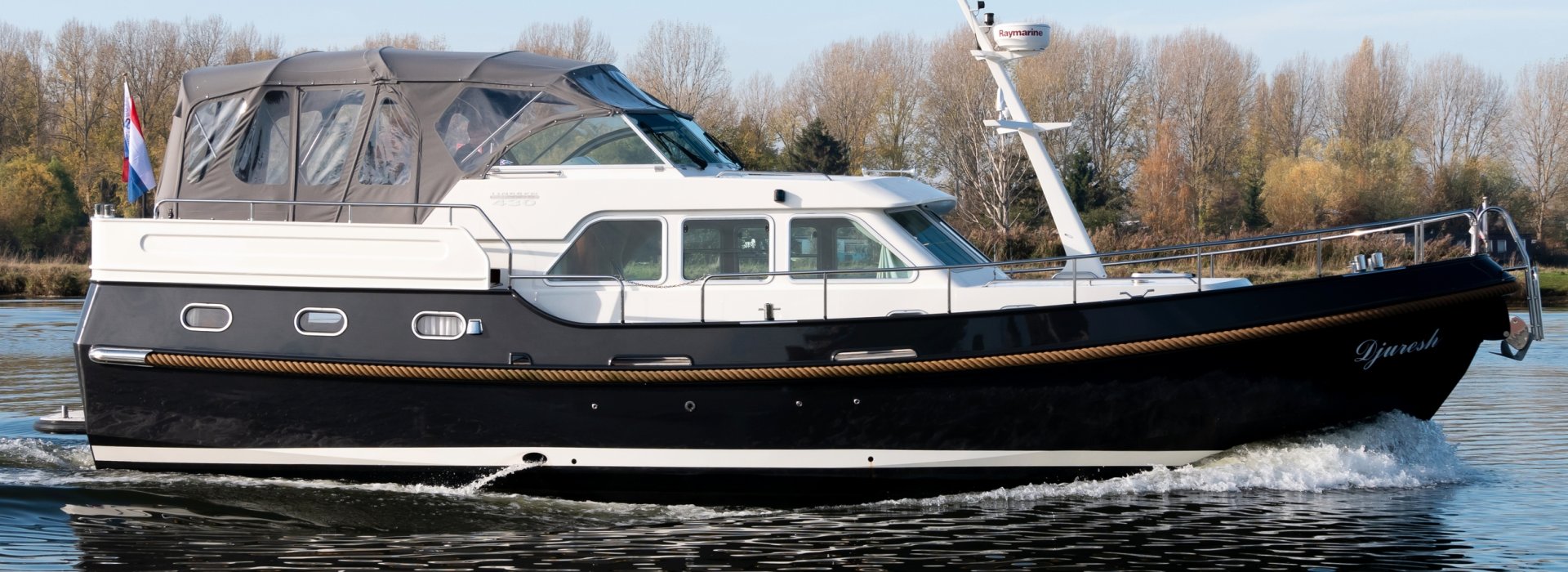

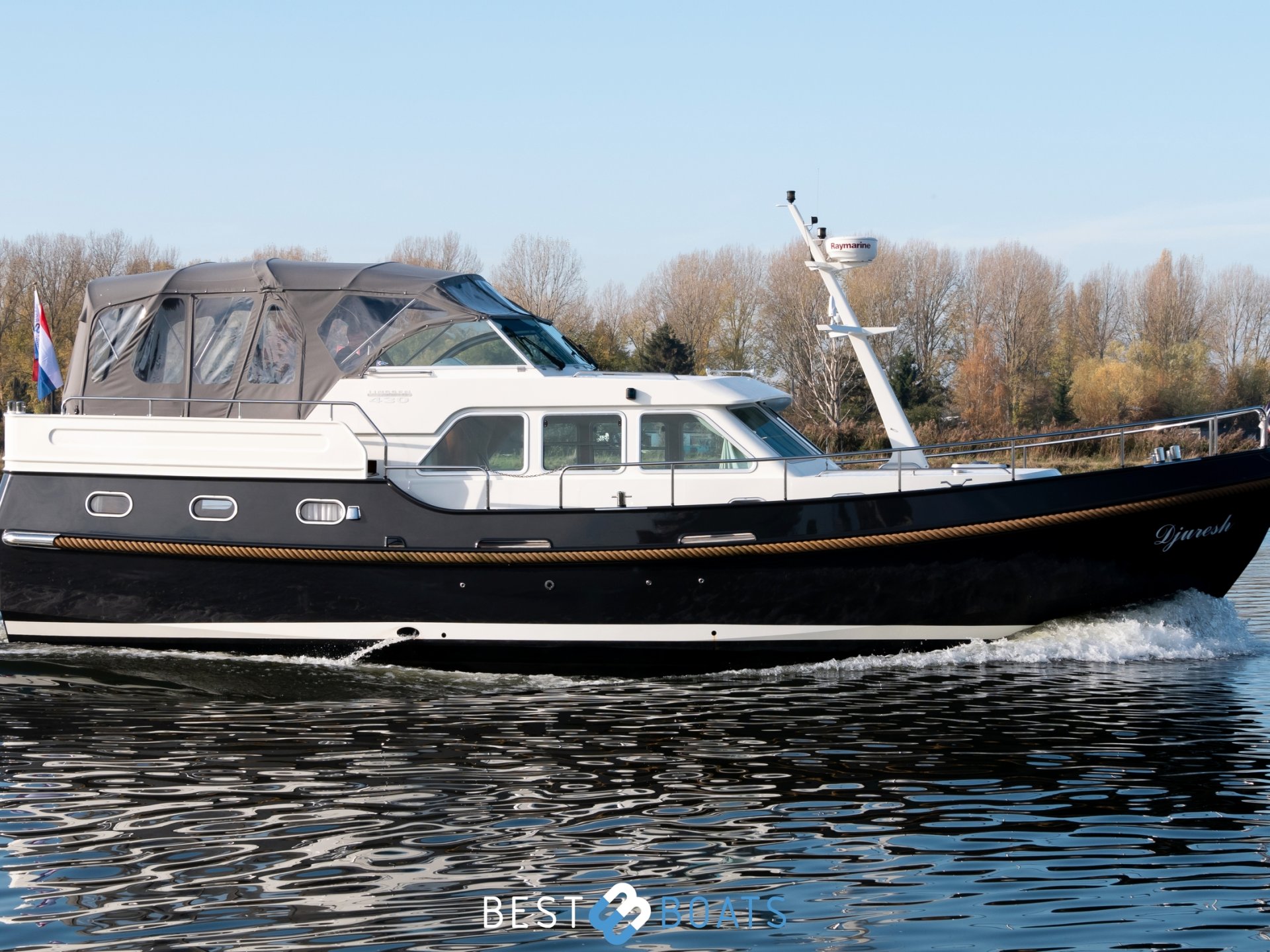

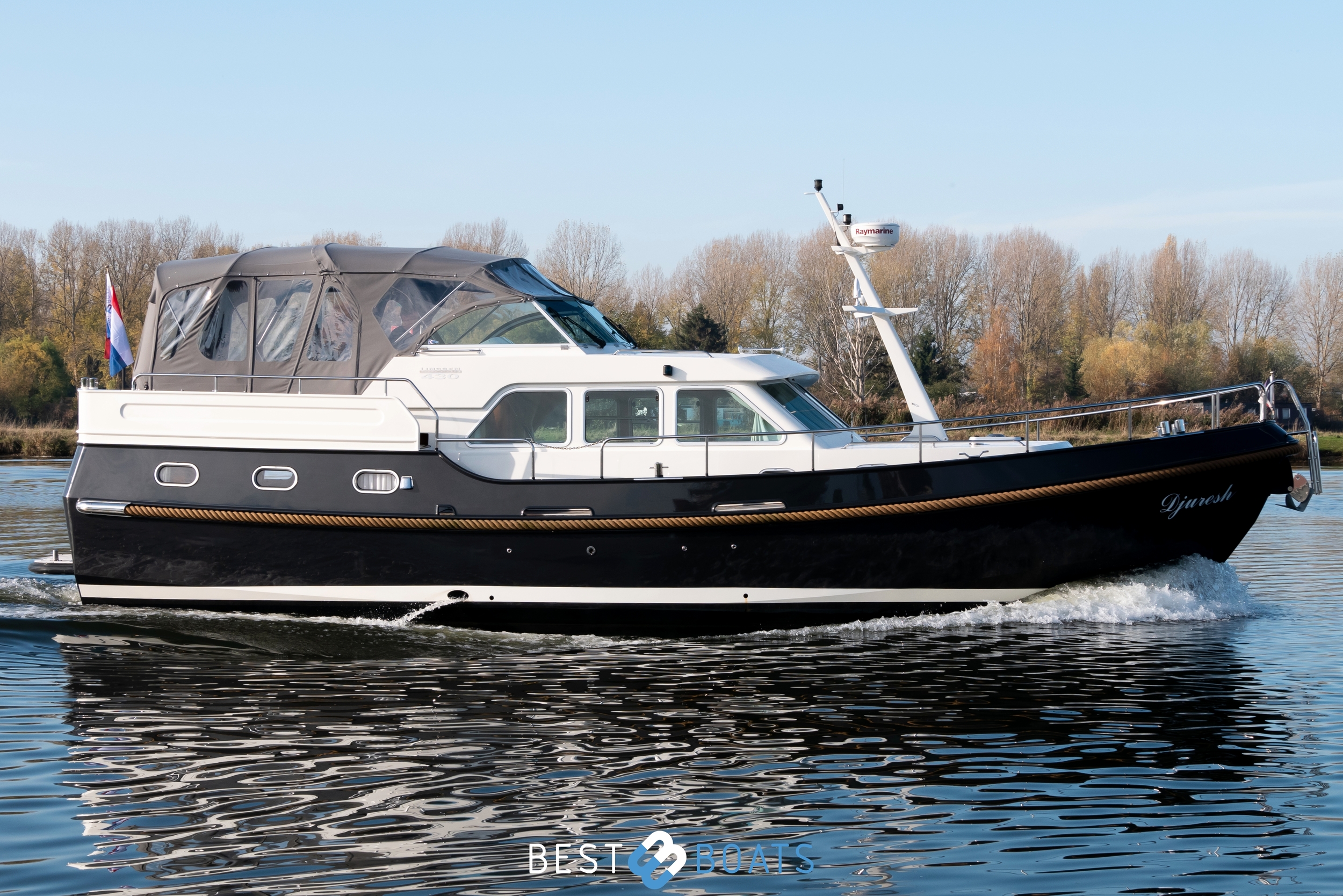

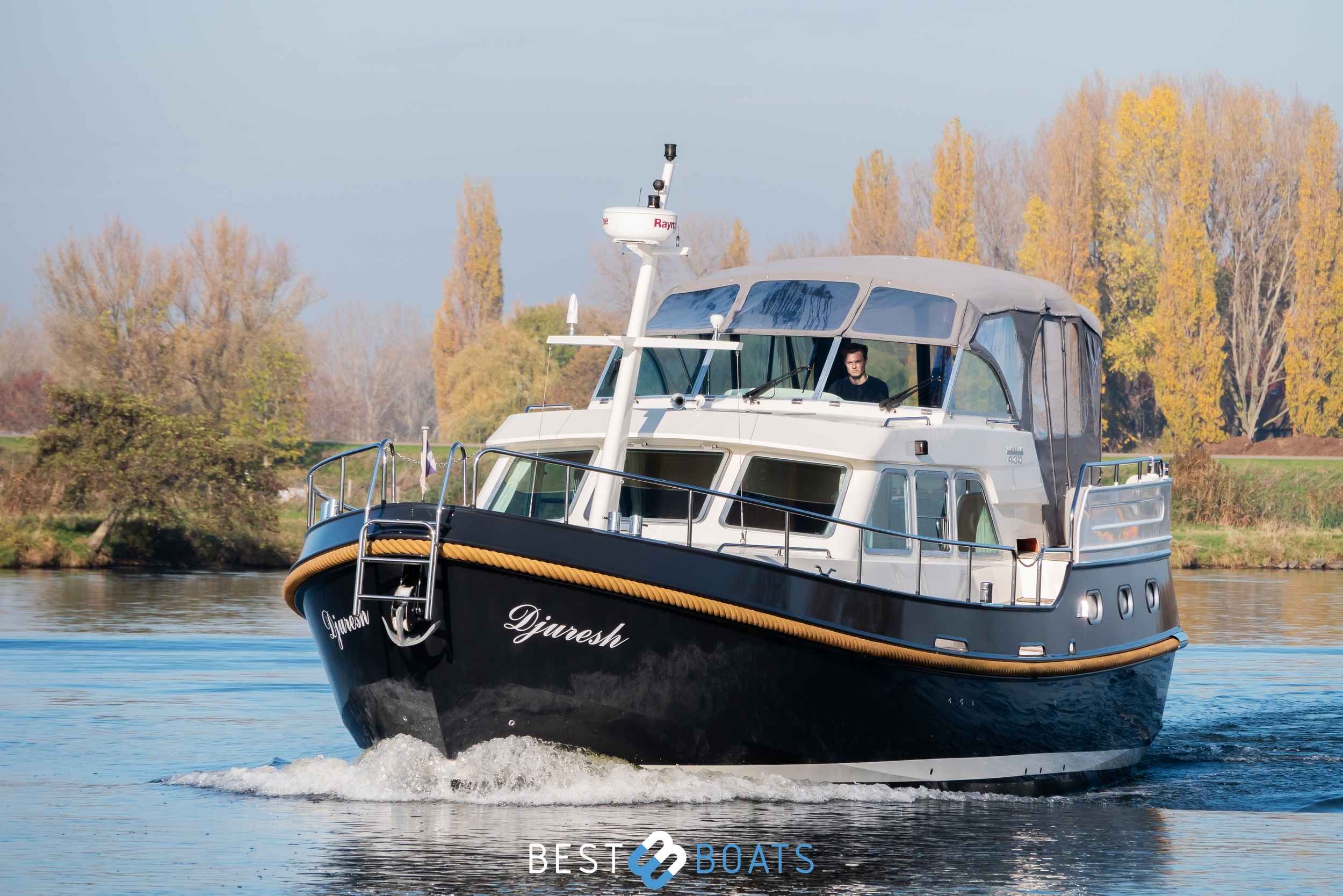

Grand Sturdy 430 AC MK II - 2020-1404

Year built: 2008
Sold

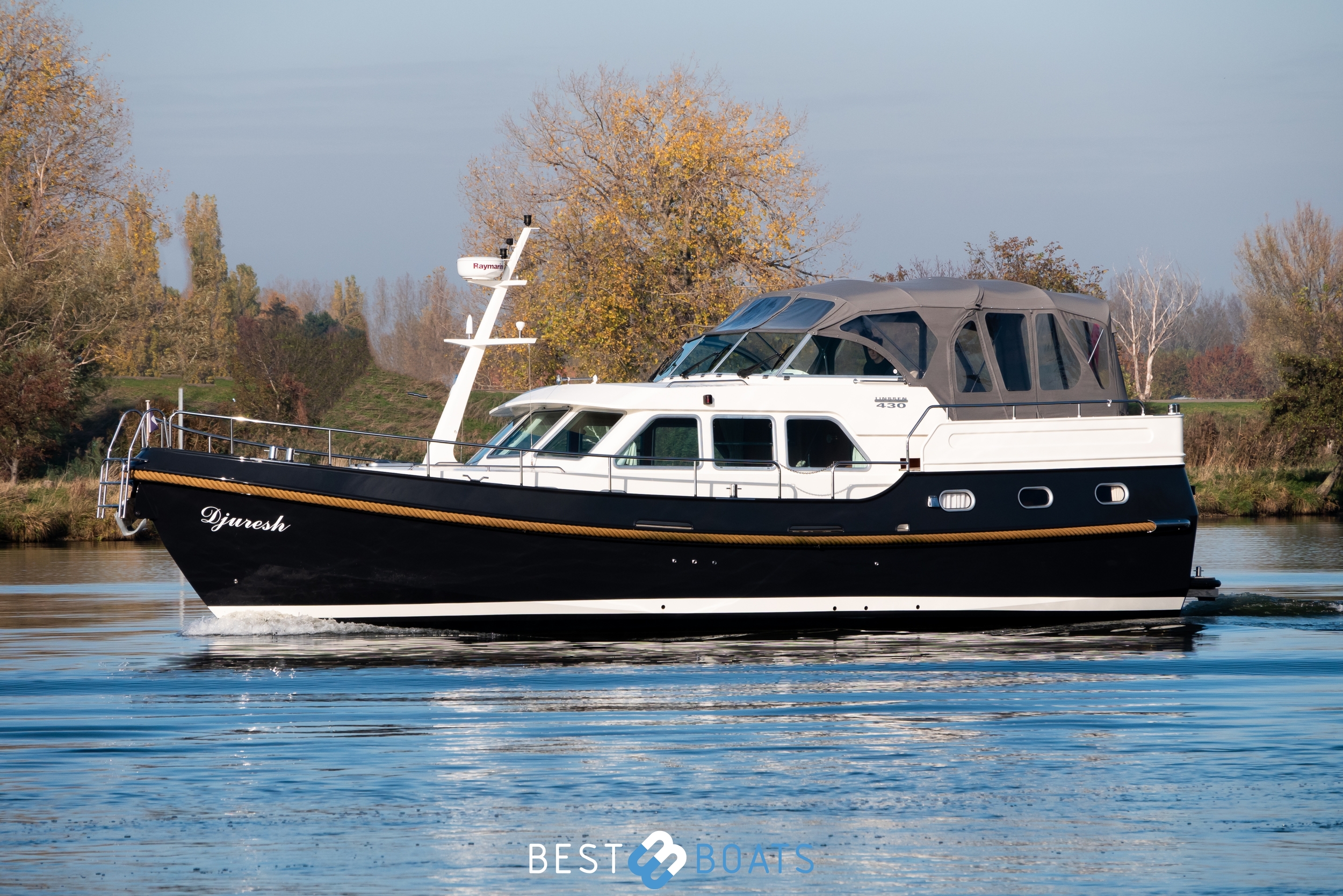

Beautifully maintained Linssen MKII with double staircase. Equipped with several new accessories in 2019.
Brand:
Linssen
Dimensions:
13.17m x 4.31m x 1.38m
Year built:
2008
Material:
Steel
Location:
Bestboats Roermond
Motorization:
Vetus DT66 170HP
Article number:
2020-1404 CHECKED
Send me a brochure
Vergelijk uw polis
Description

Description

Beautifully maintained Linssen MKII with double staircase to the Swimmingplatform. Equipped with various new accessories in 2019
 such as, new paint, new oven, new washer-dryer (AEG) and new convertible top over the entire aft deck.
The boat was professionally cleaned and waxed in November 2019 to complete the new coat of paint.
< >
Basic data

Basic data

Shipyard
Linssen Yachts
Hull number
2566
CE-category
B
Designed for sea voyages up to wind force 8 on the Beaufort scale and a wave height of up to 4 metres.
CE max weight
5300 tonnes
Hull shape
Multi chine
Hull colour
Gray
Deck colour
White
Deck construction
Steel
Windows
Single glazing in aluminium profile, in the saloon there is a sliding window on the port side and a hinged window on the starboard side.
Aft cockpit
✓
Vertical clearance
4.62 m
With folded mast: 345cm, wit lowered mast and windows: 300cm
Minimum height
300 cm
Draught
138 cm
Waterline length
1093 cm
Displacement
19 tonnes

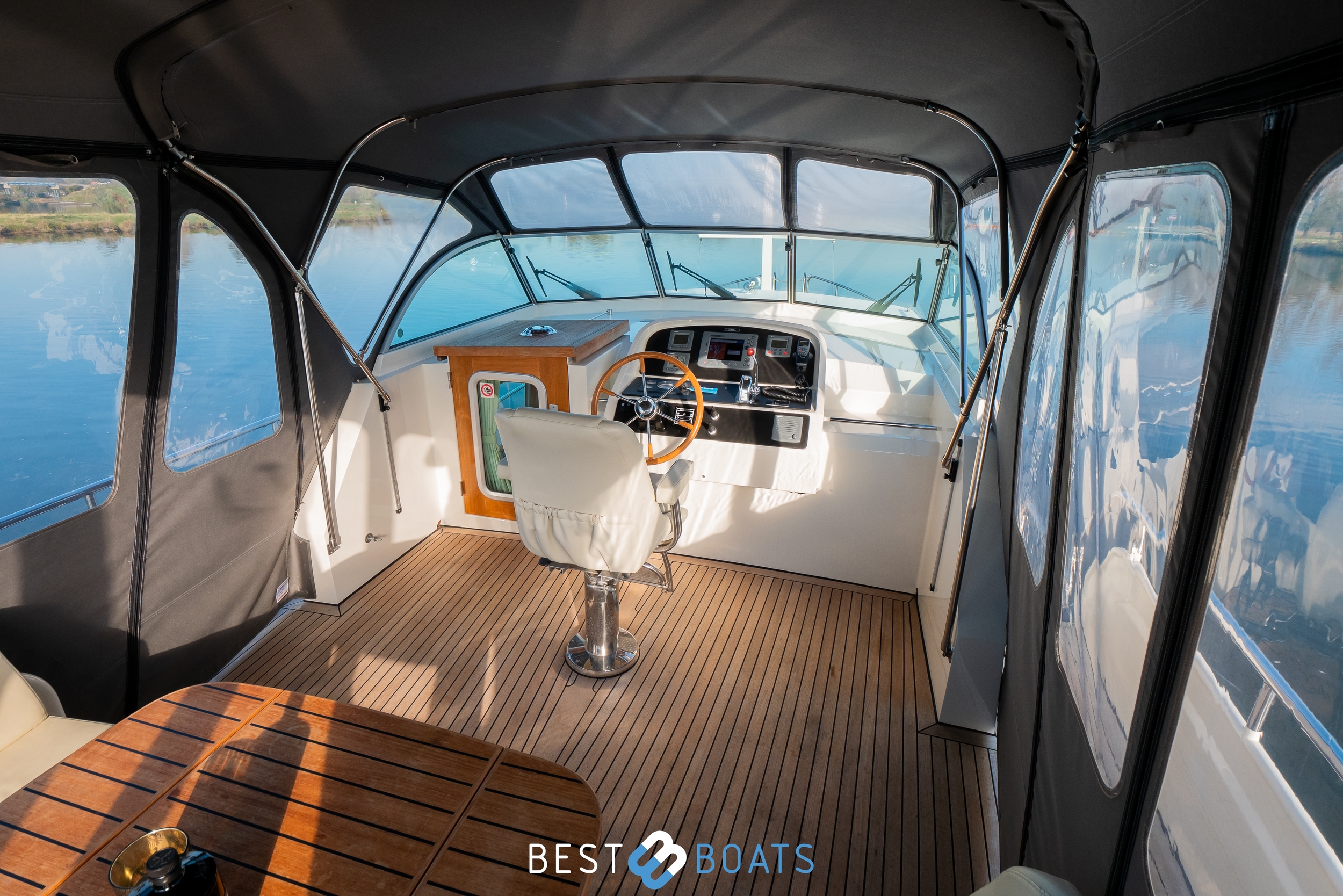

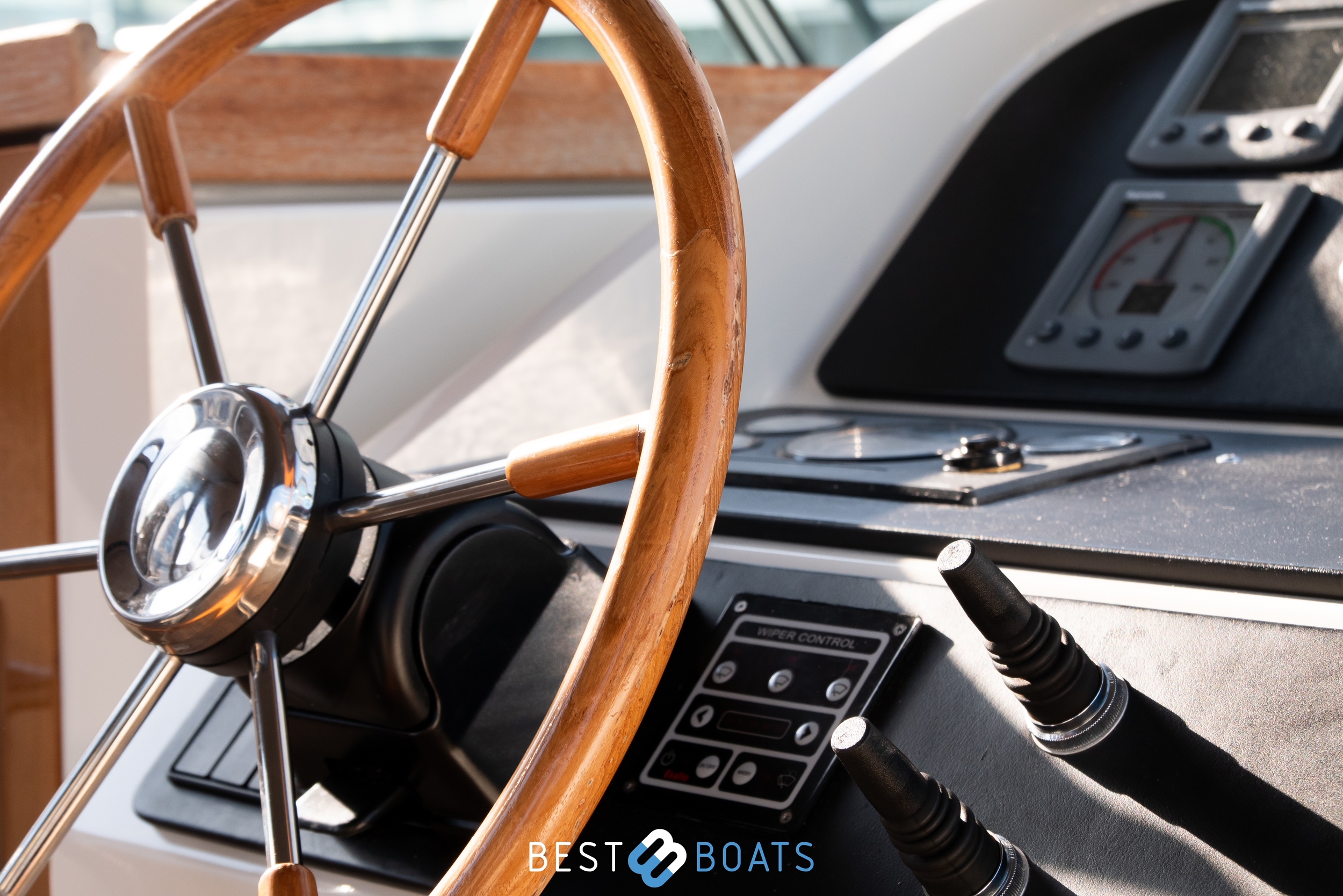

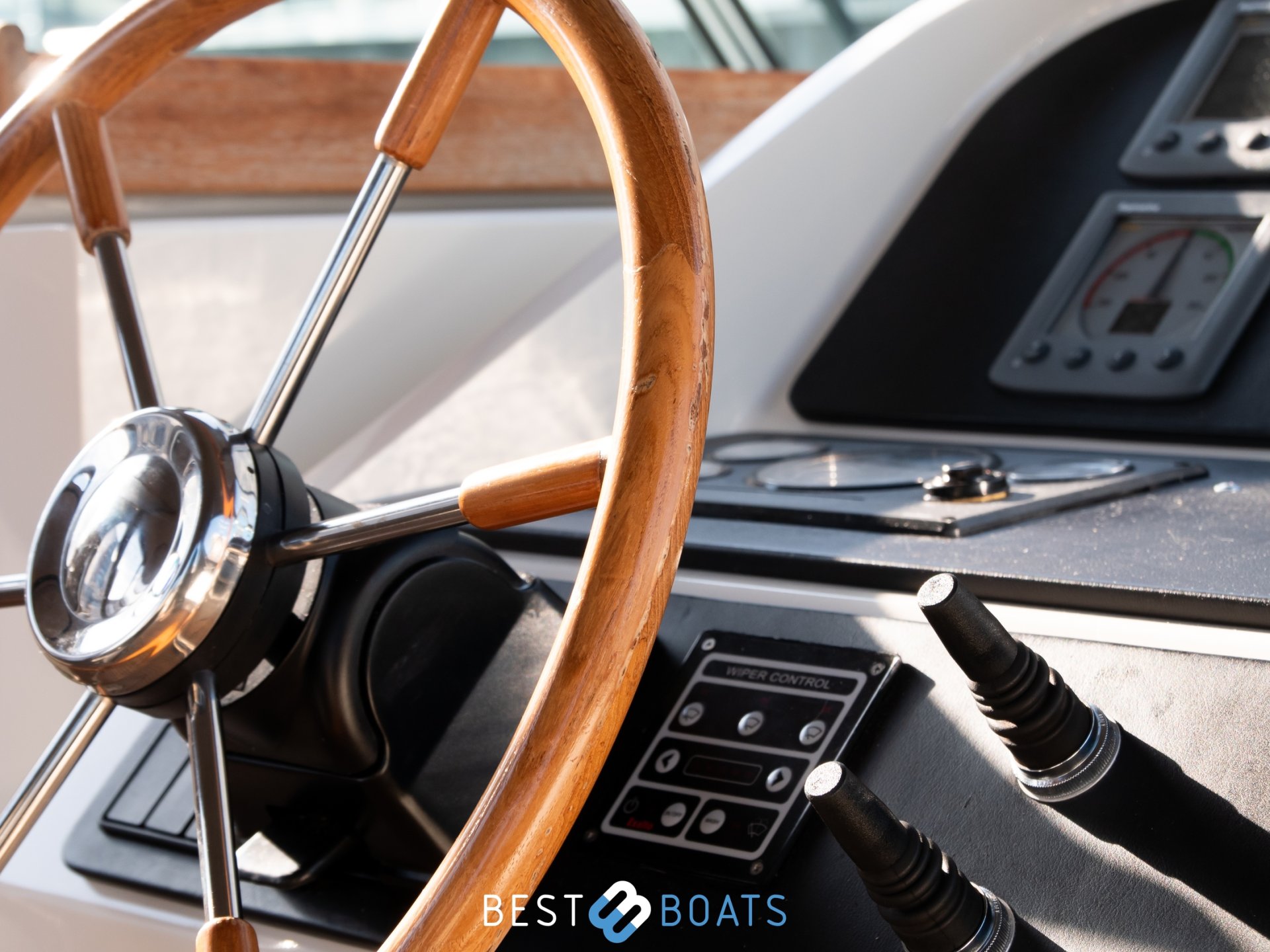

Steering system
Wheel

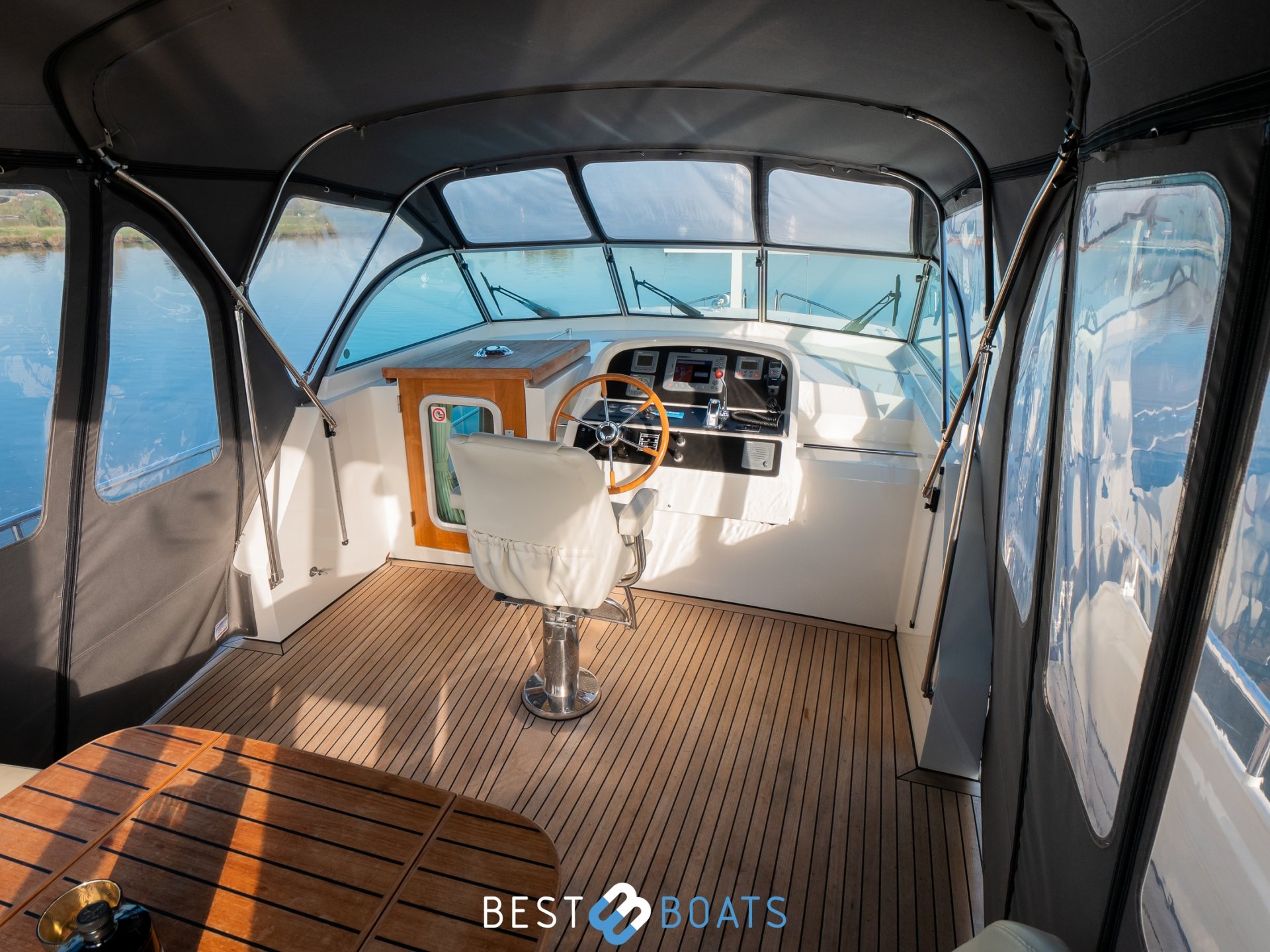

Outside under convertible top, heated steering wheel
Position steering system
Outside
Rudder
Single
Keel/Lee board
Full keel
Comments

Beautifully maintained Linssen MKII with double staircase to the Swimmingplatform. Equipped with various new accessories in 2019
such as, new paint, new oven, new washer-dryer (AEG) and new convertible top over the entire aft deck.

The boat was professionally cleaned and waxed in November 2019 to complete the new coat of paint.

< >
Accommodation

Accommodation

Saloon
✓
Layout and spaces inside

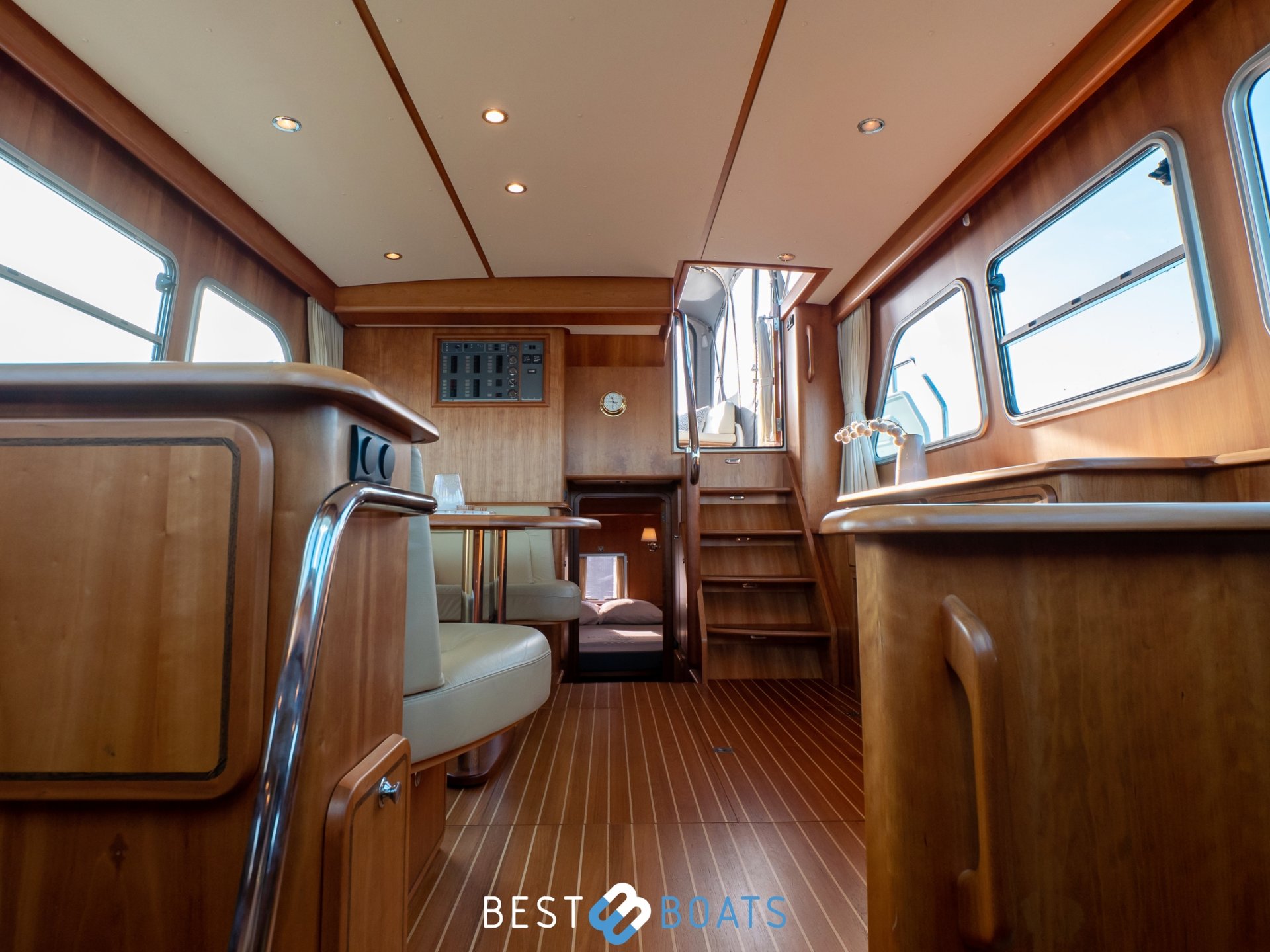

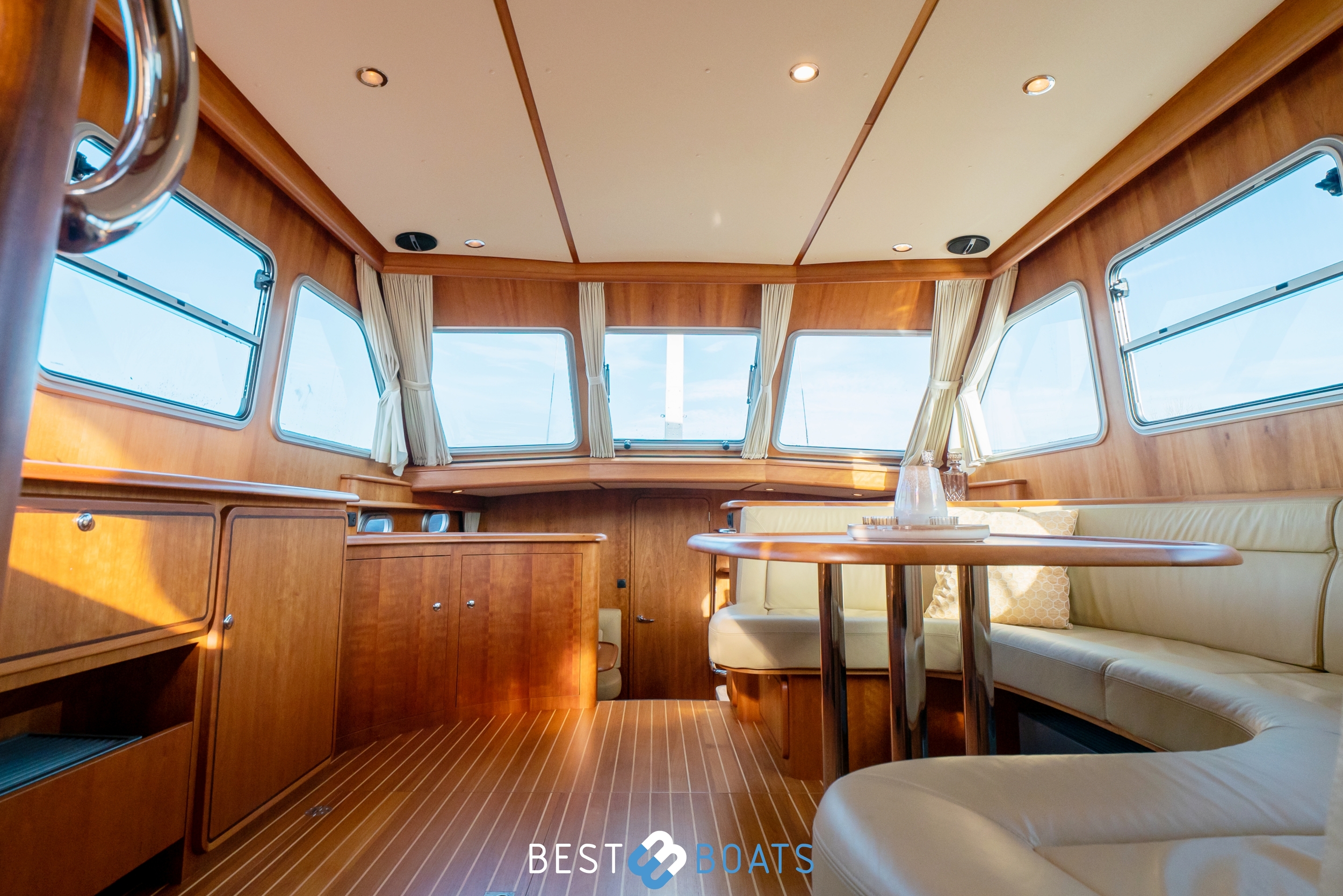

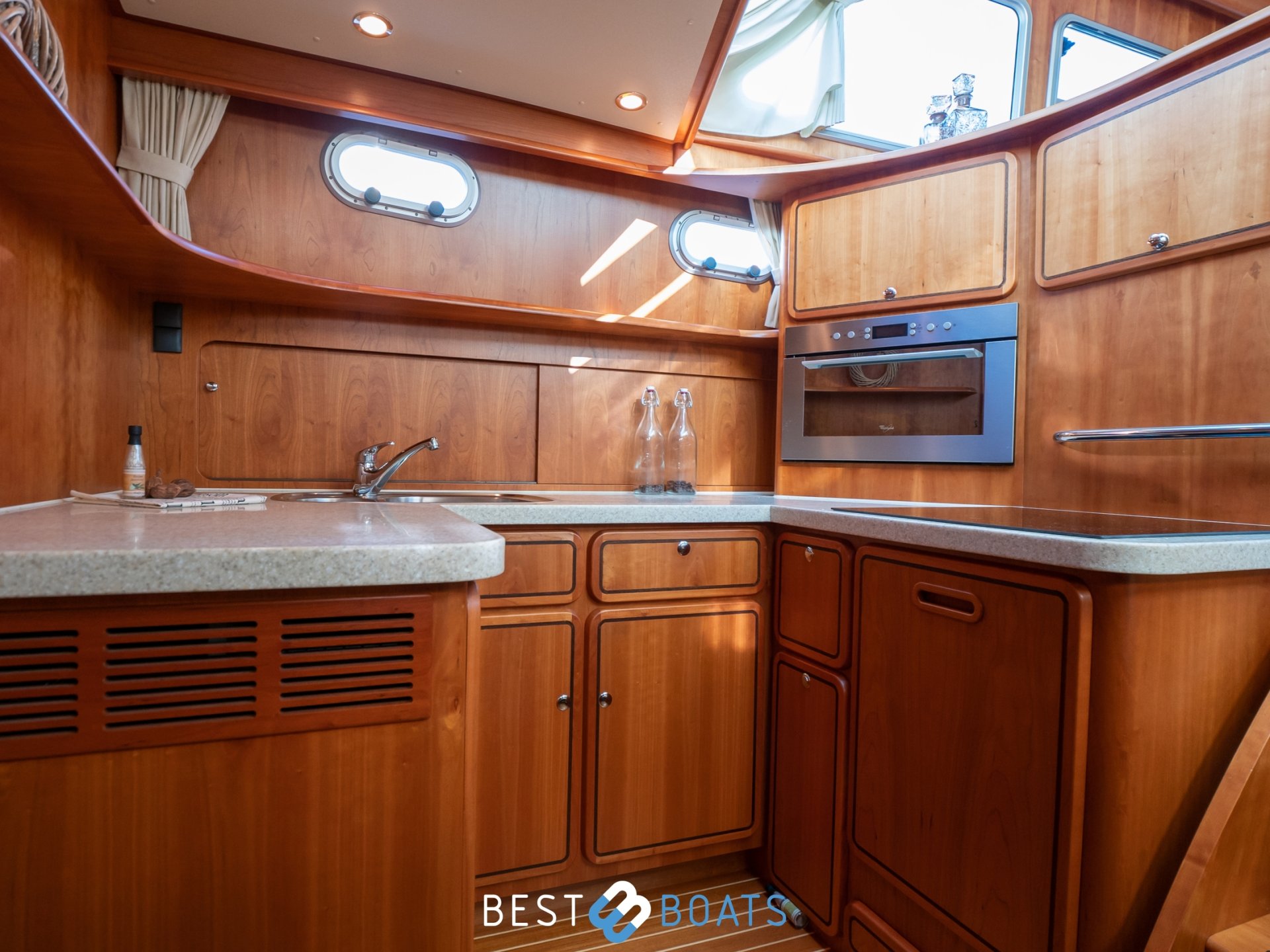

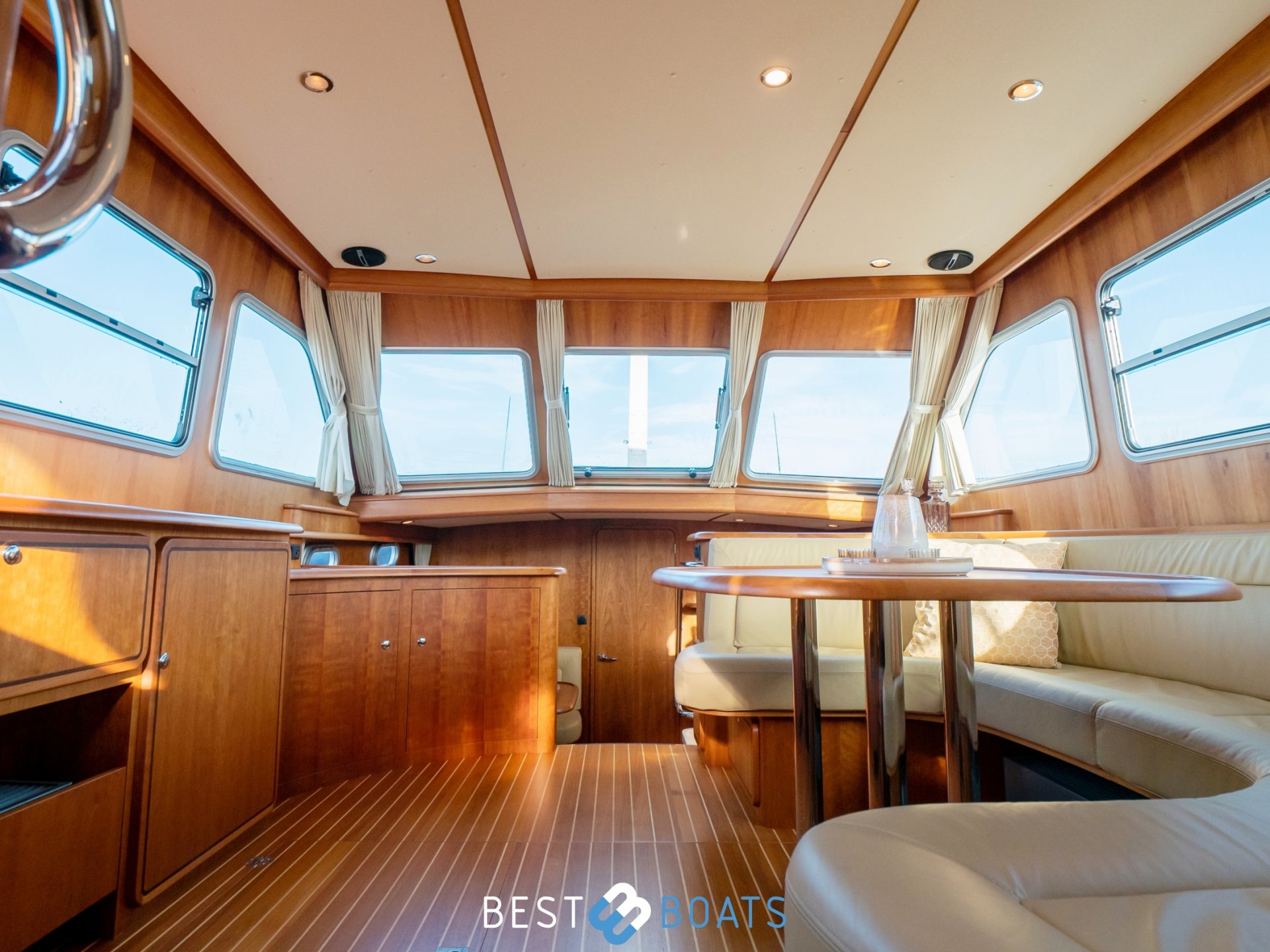

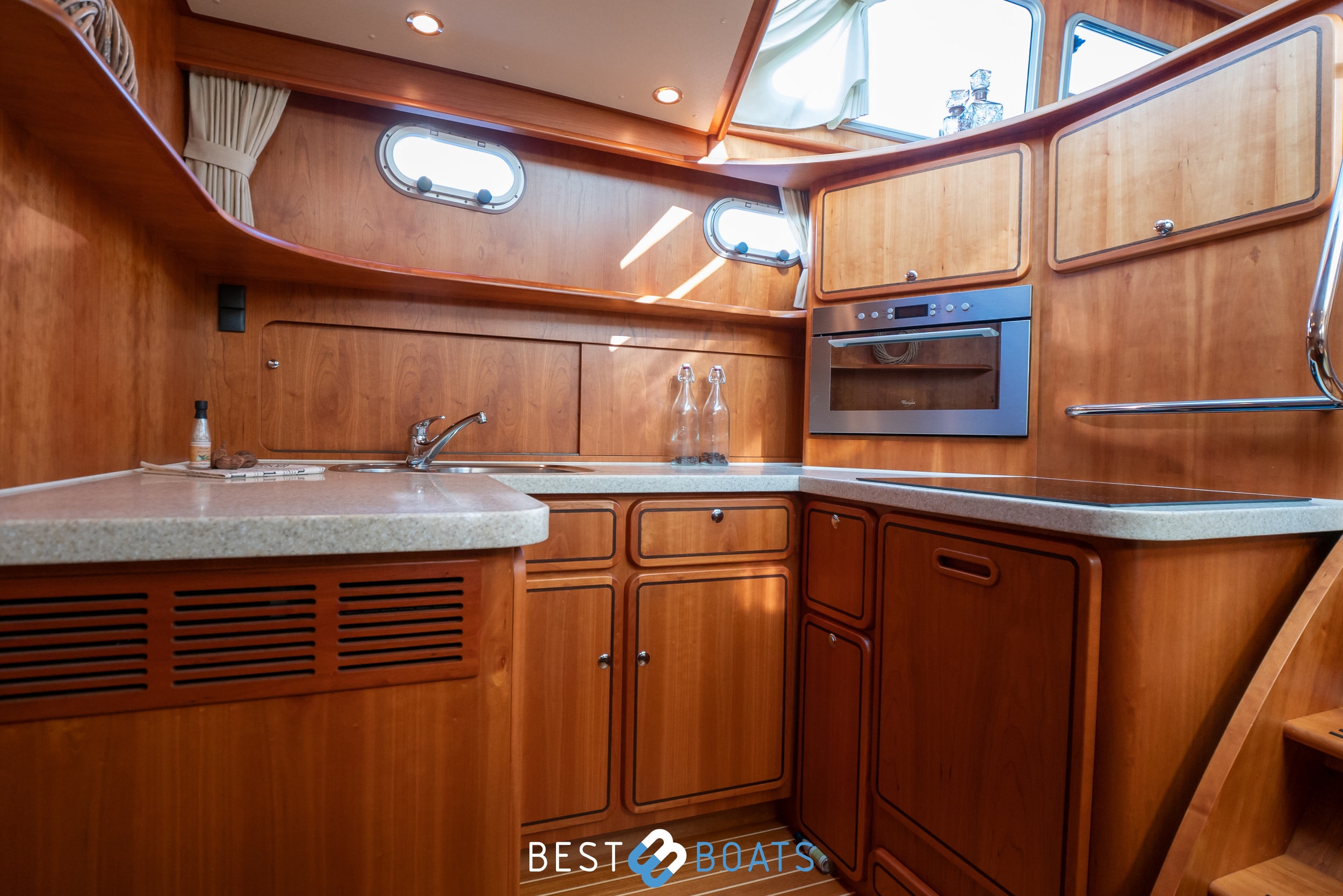

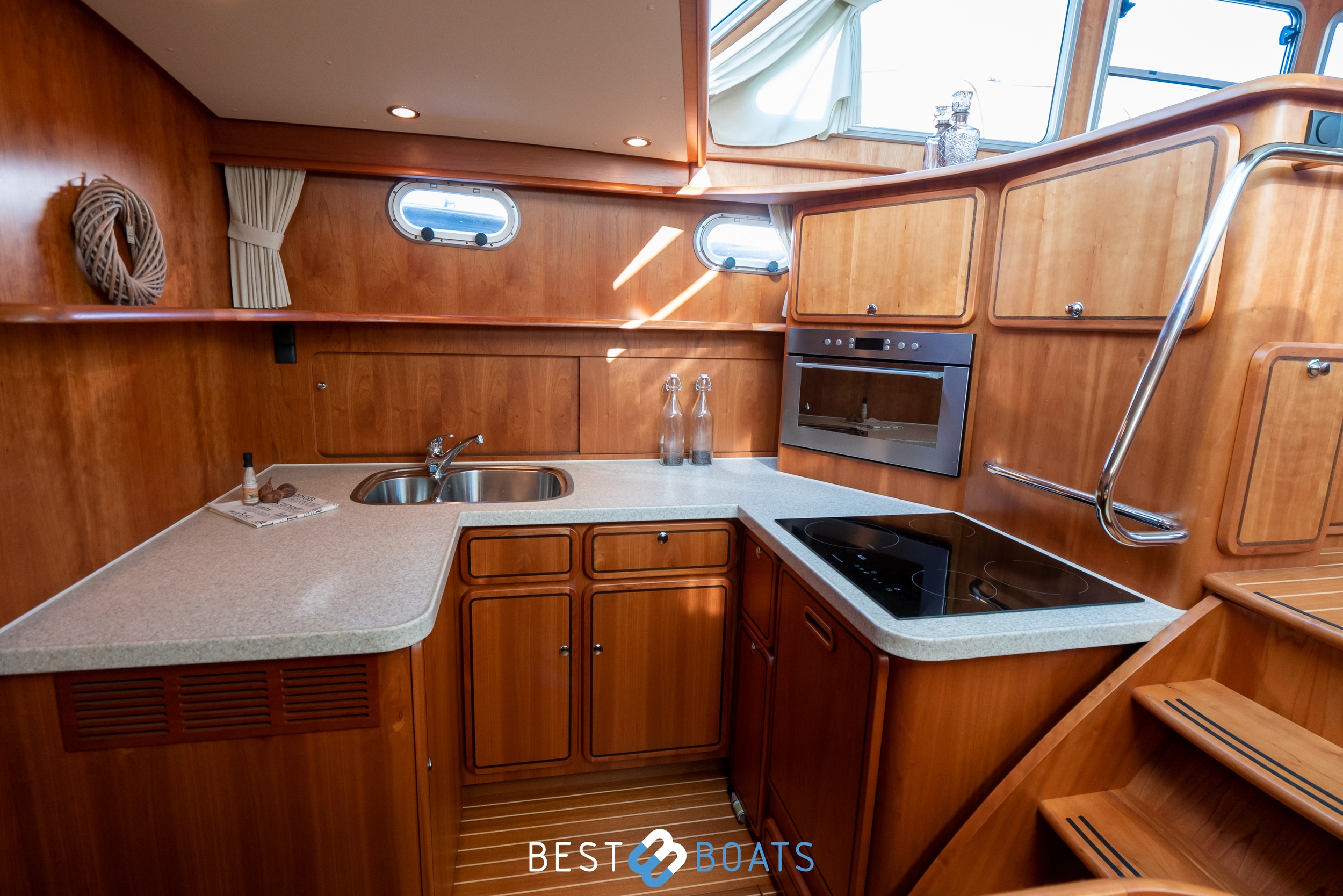

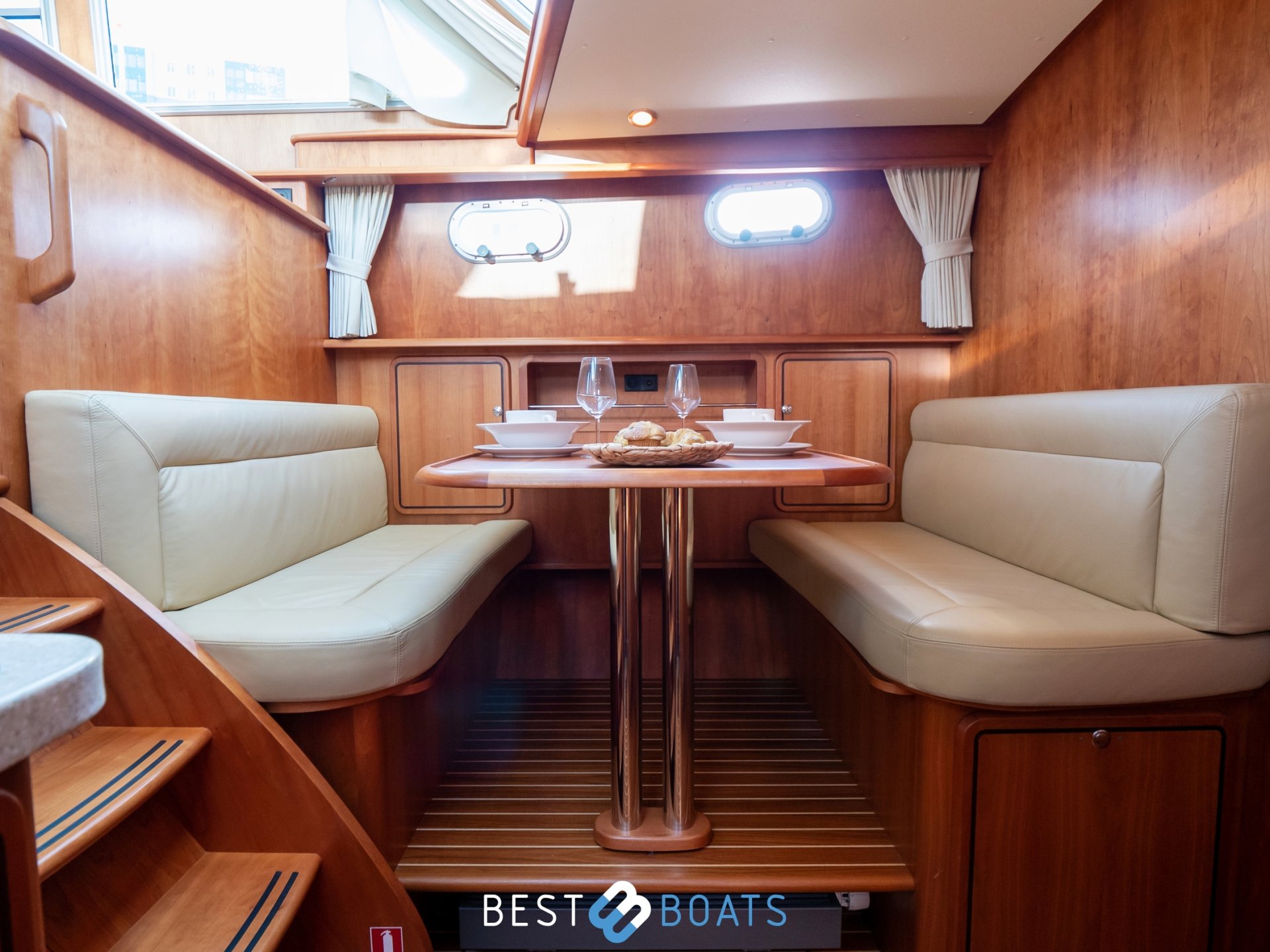

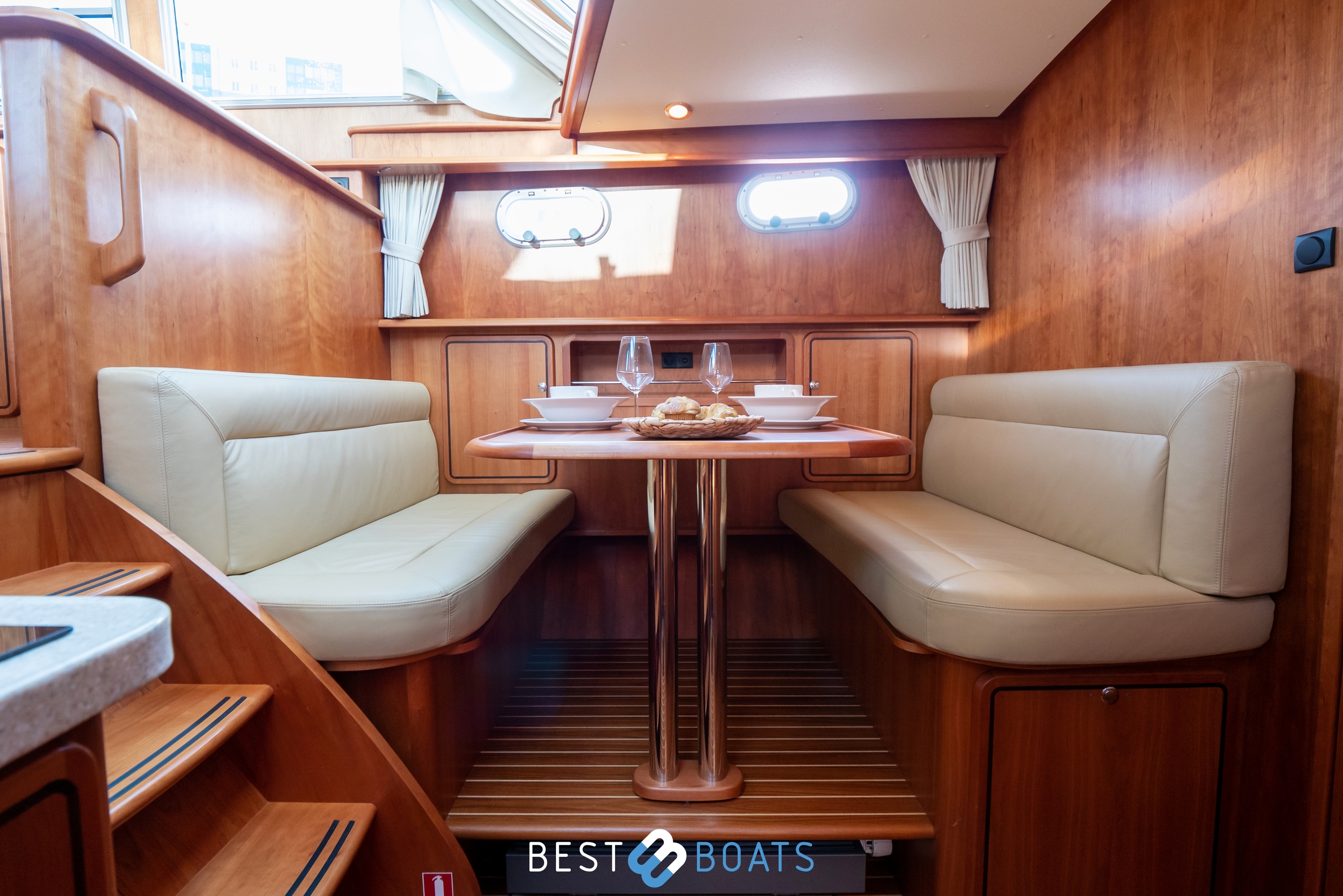

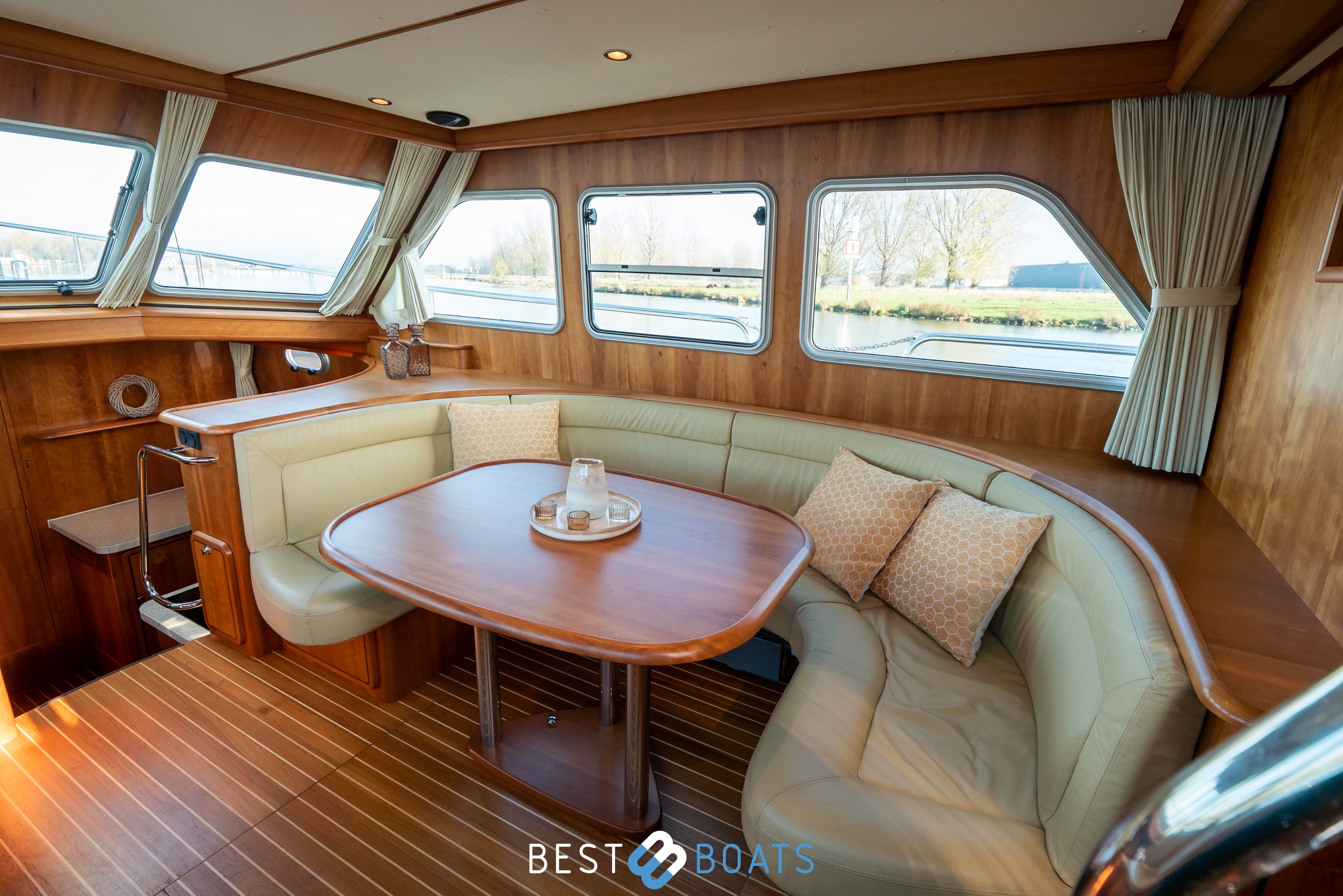

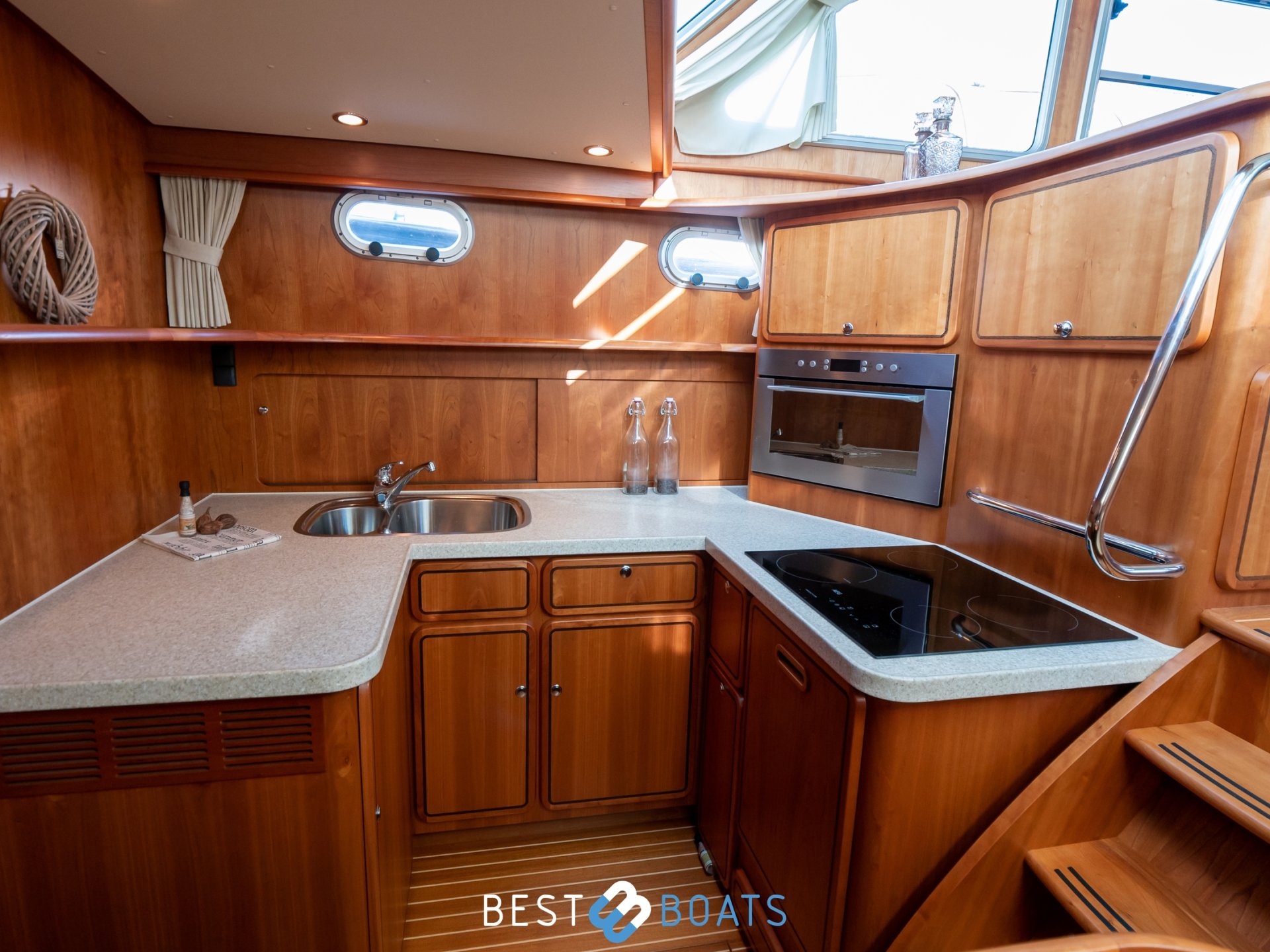

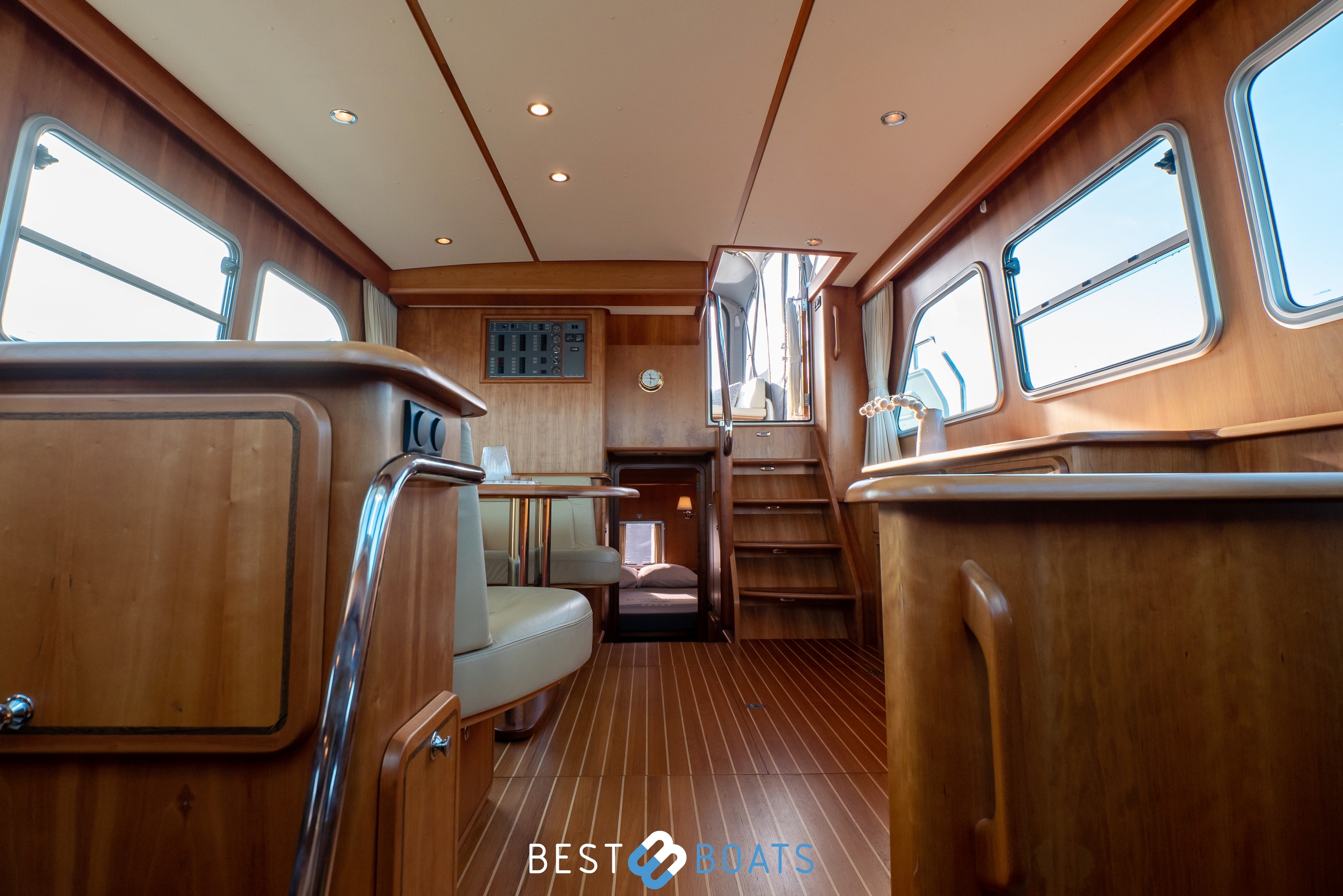

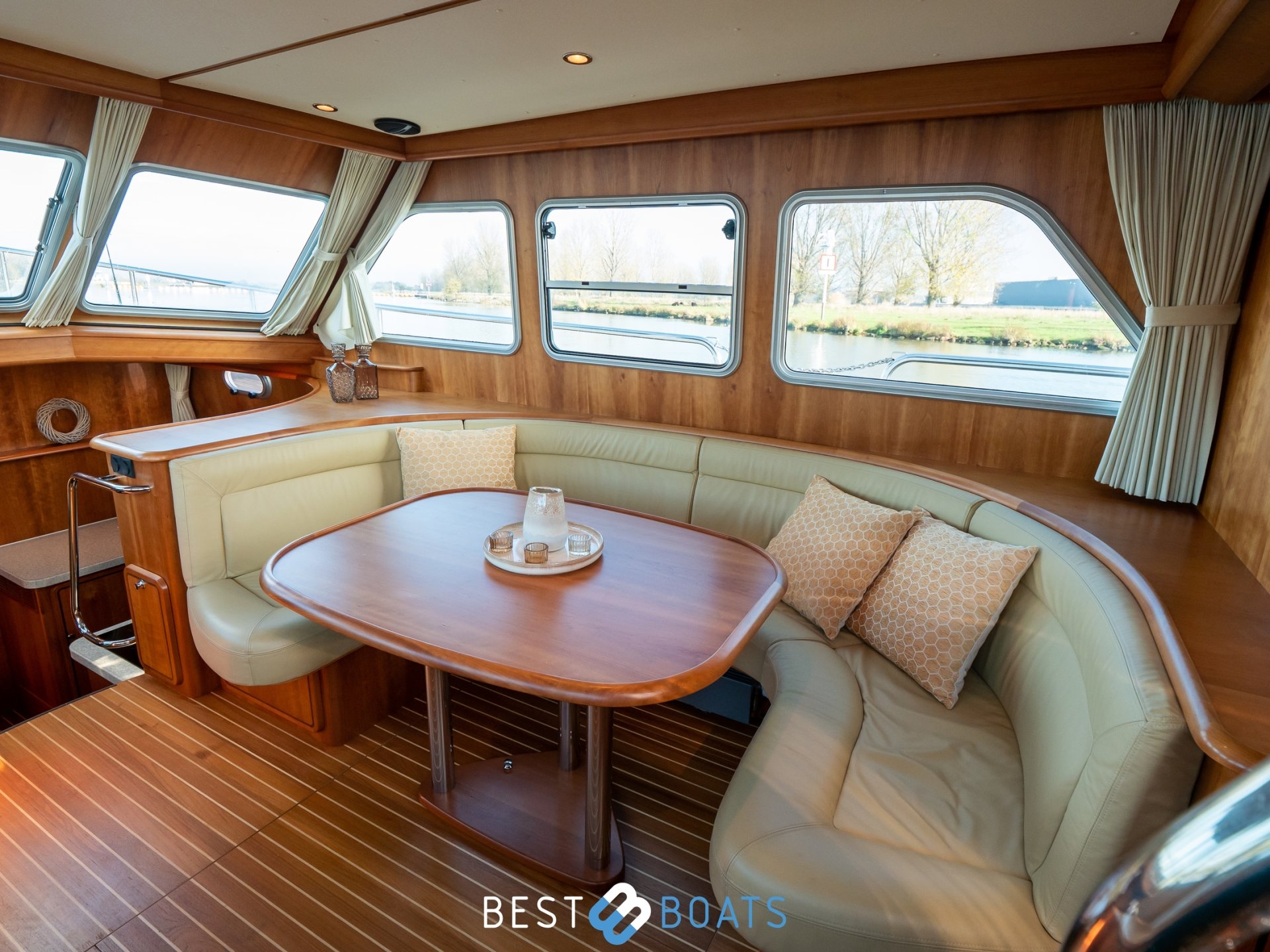

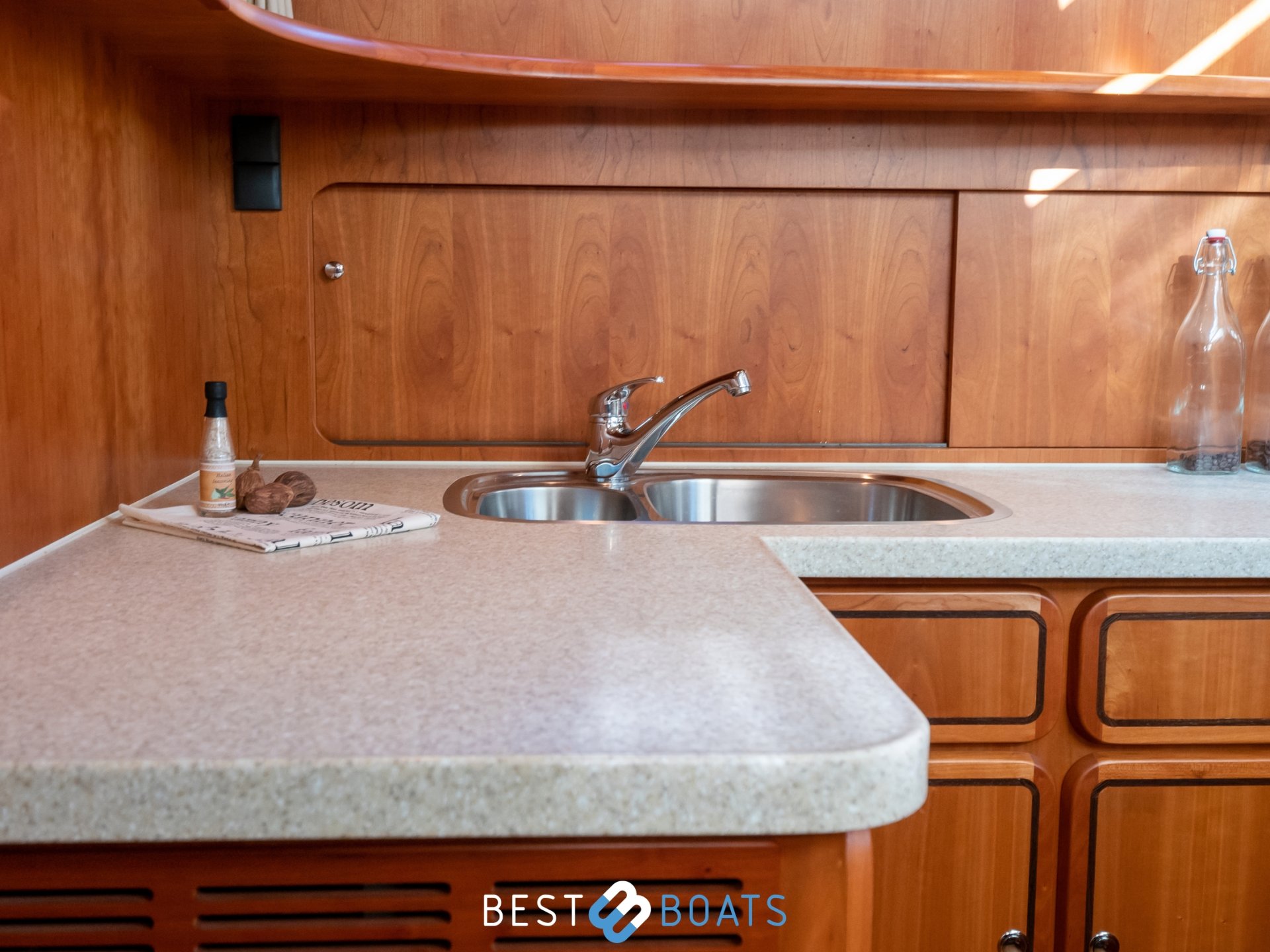

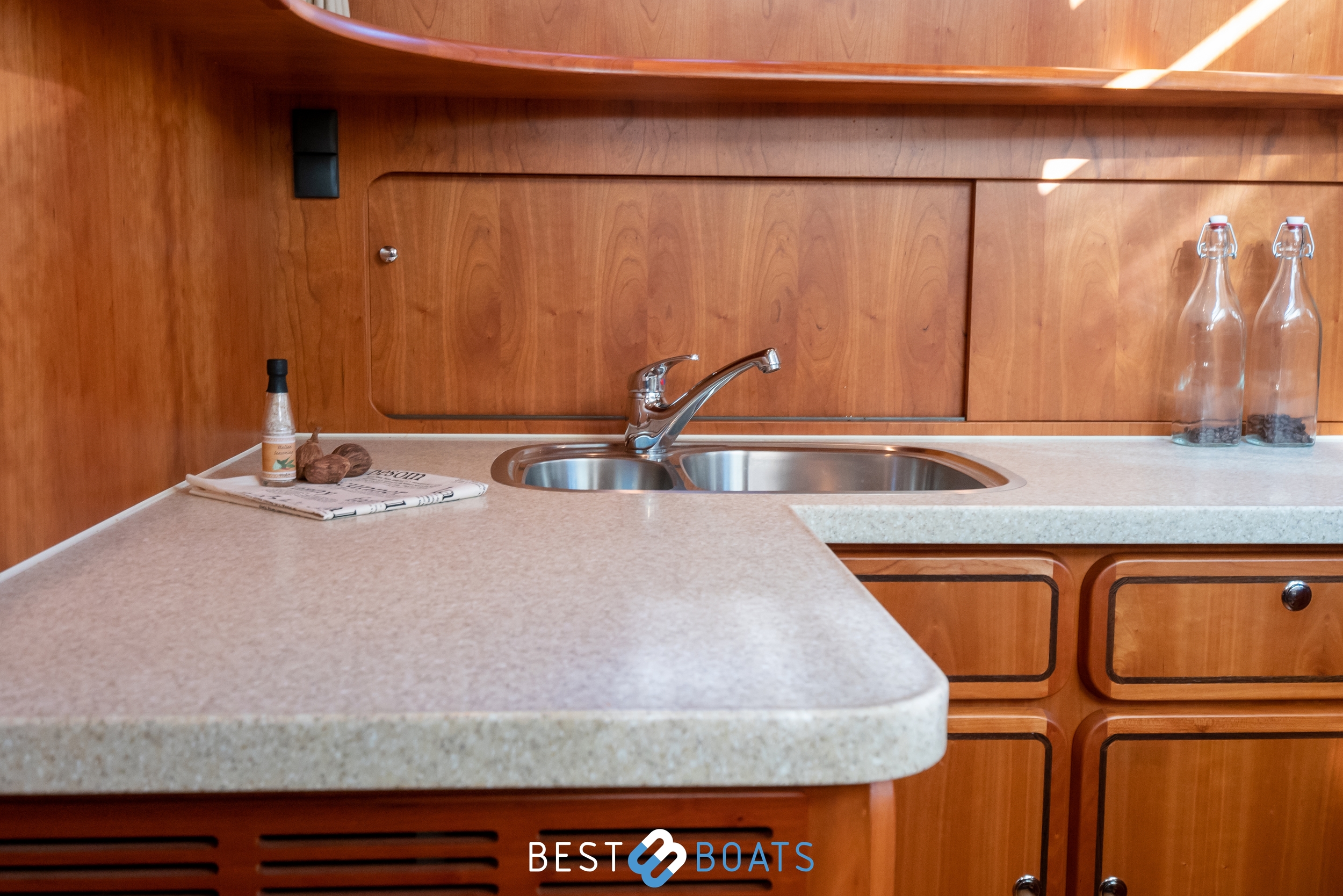

Upon entering the yacht you are directly in the saloon, here you will find a long U-bank and lots of storage space. Further on into the yacht you go down a flight of stairs where on the starboard side the galley is in U-shape, on the port side is the dinette with two benches facing each other.
Headroom
200 cm
Headroom saloon: 200cm, headroom aft cabin: 200cm, headroom forward cabin 195cm.
Separate dining area
✓
Engine room
✓
Cabins
2

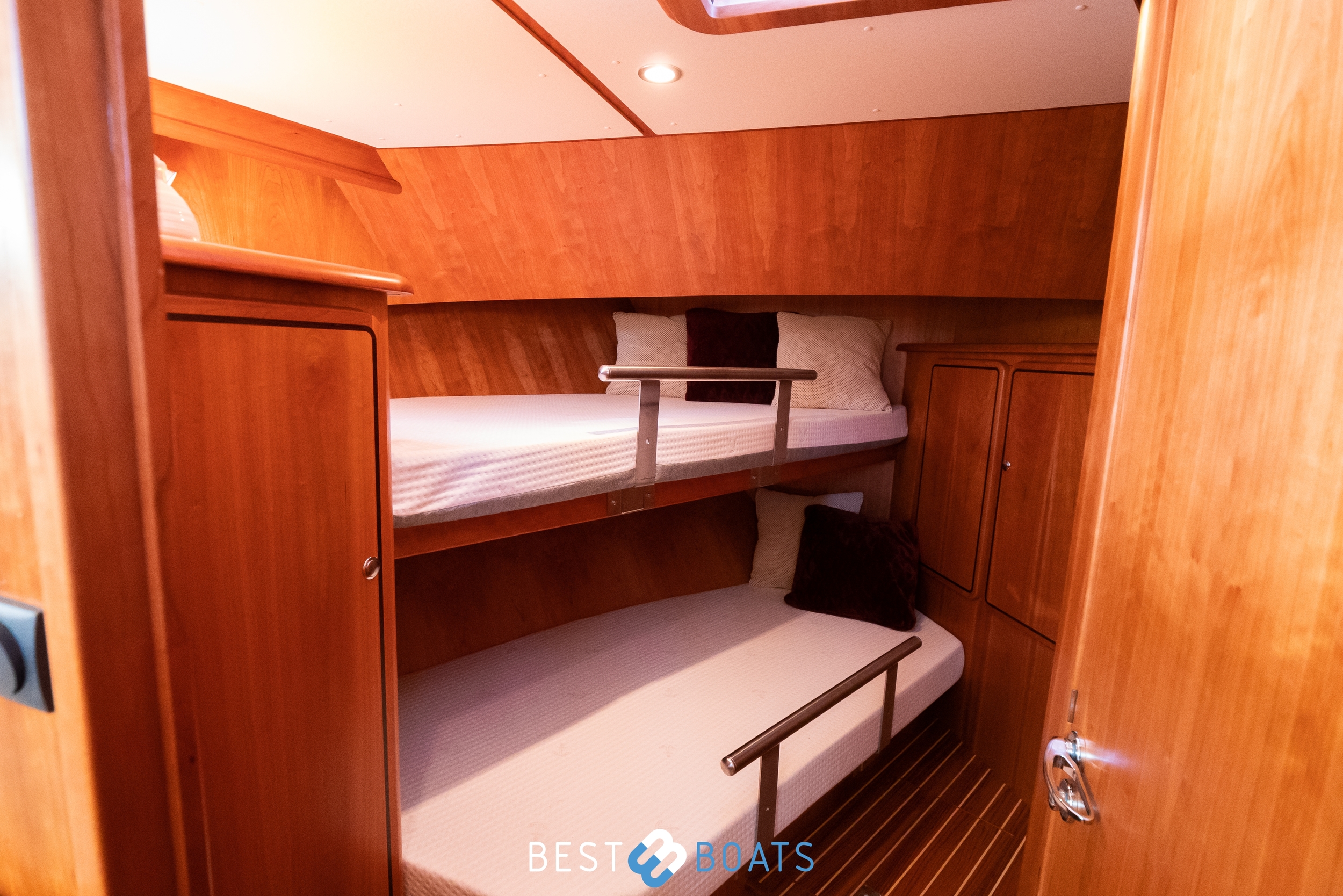

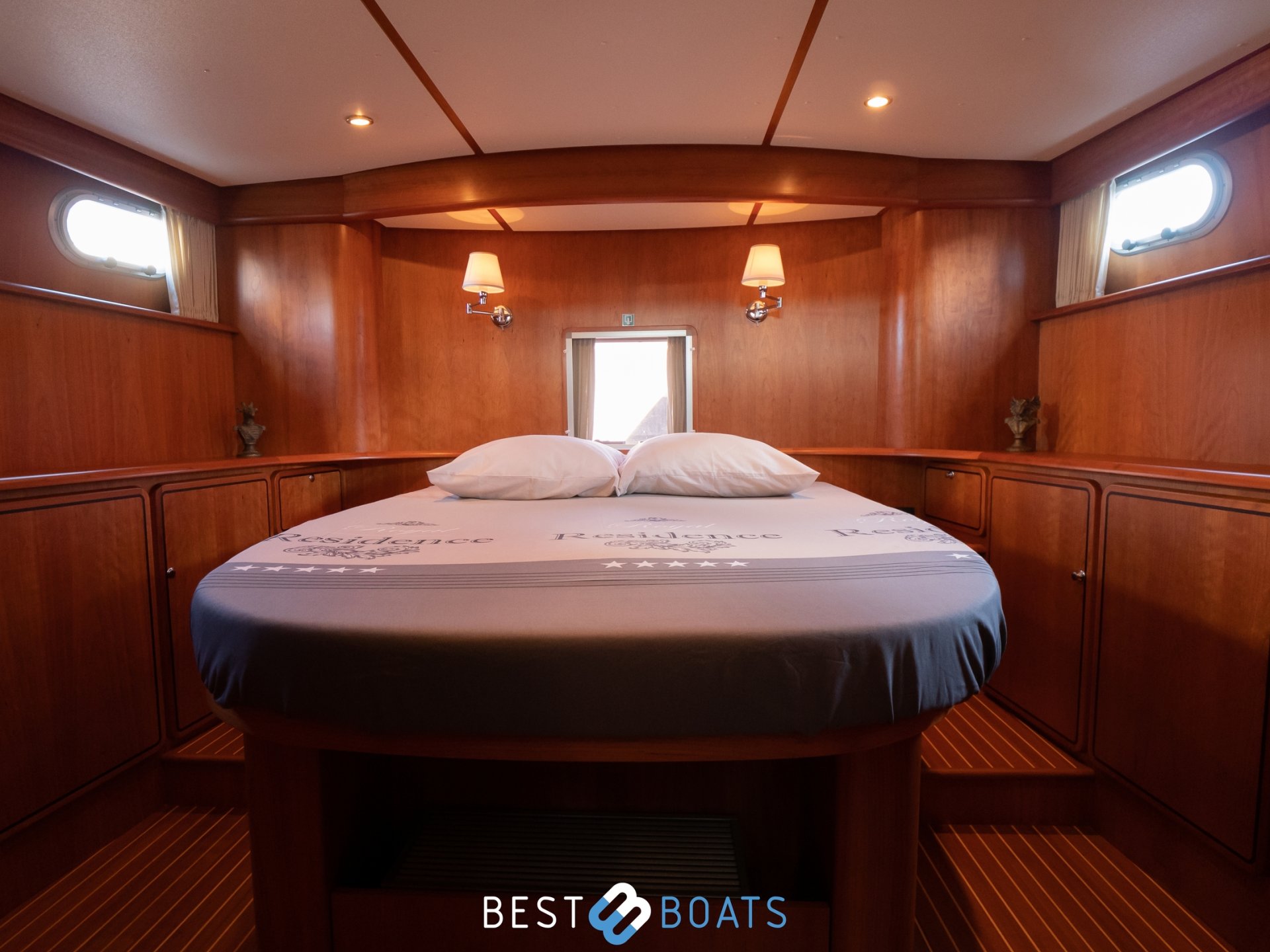

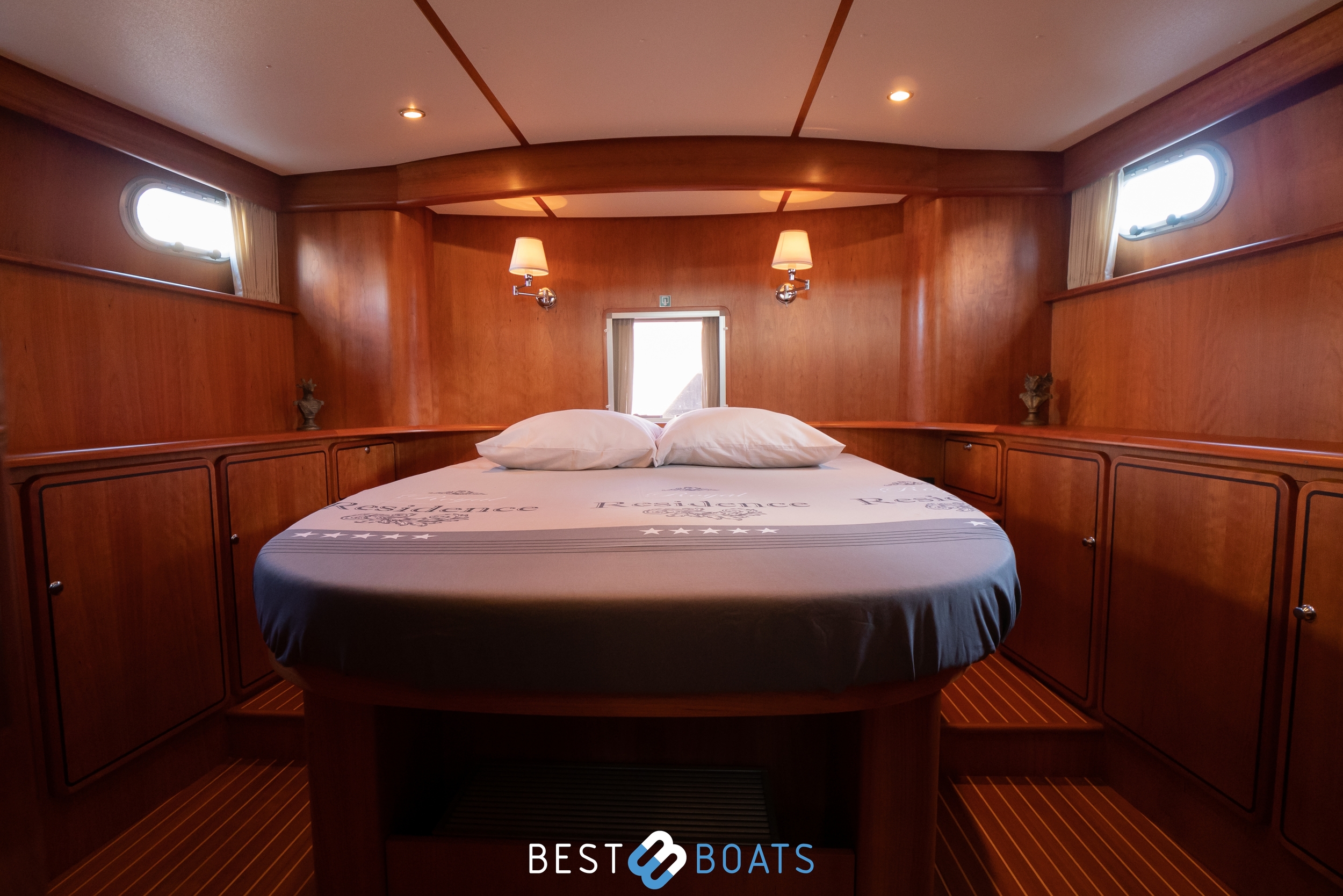

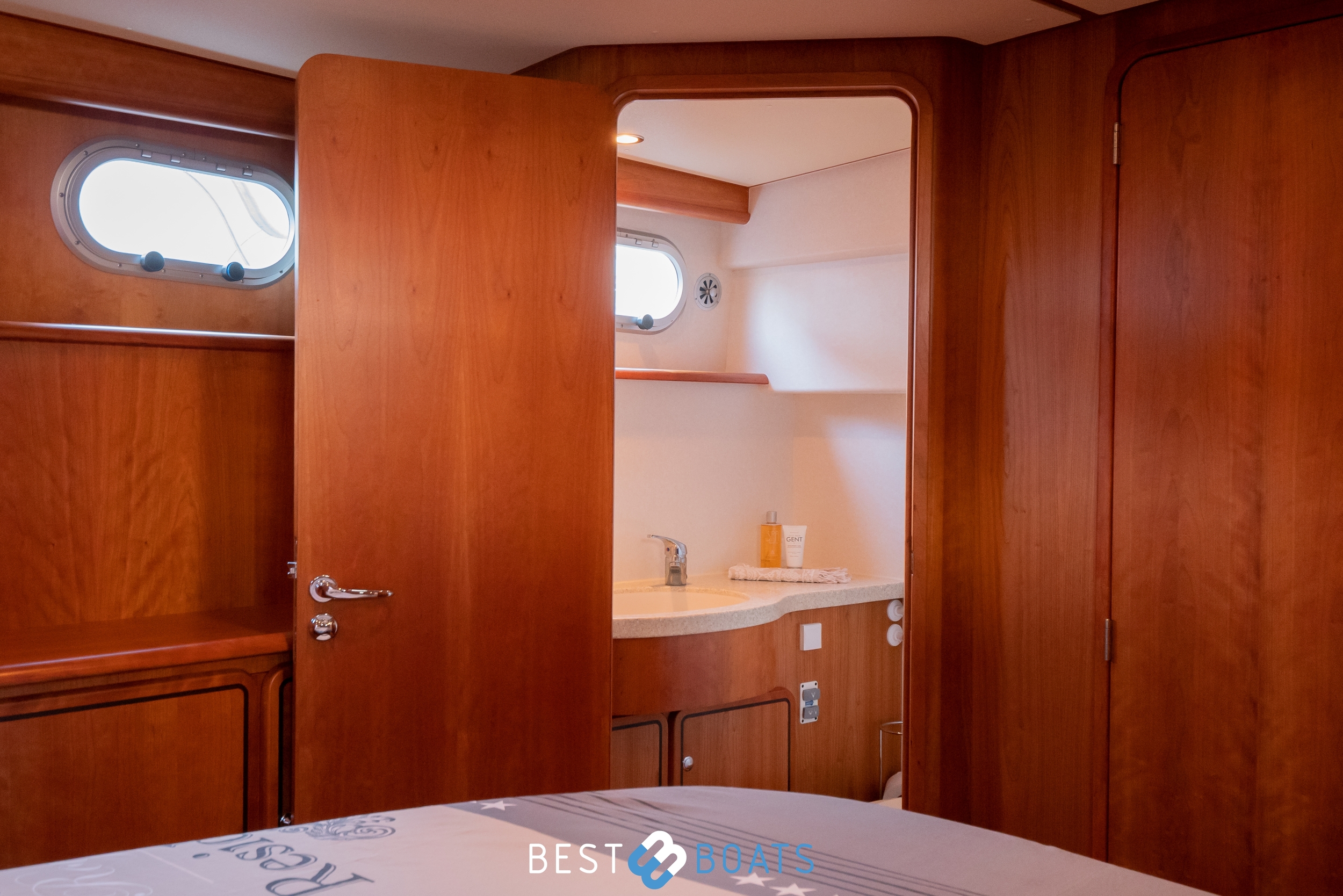

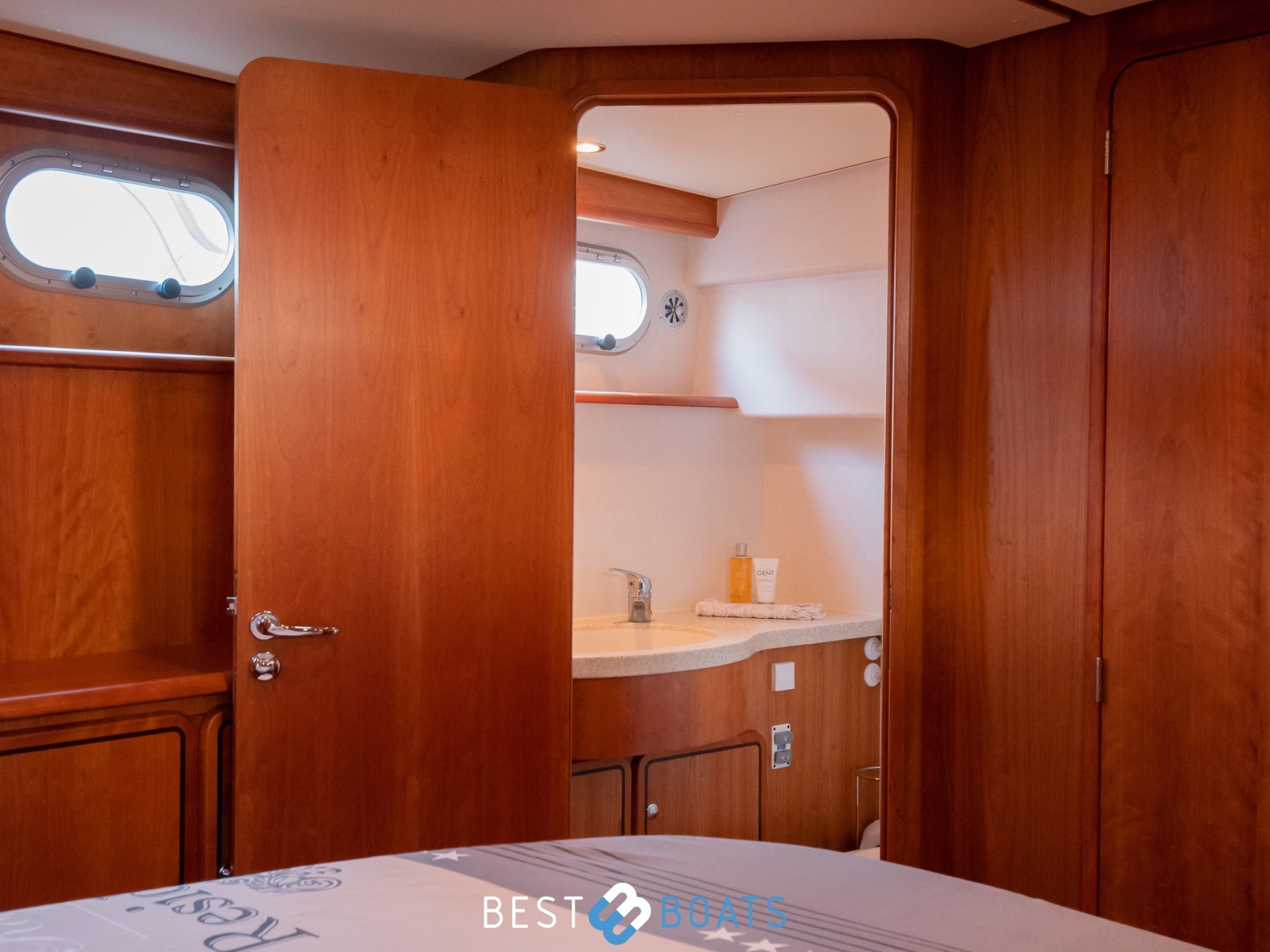

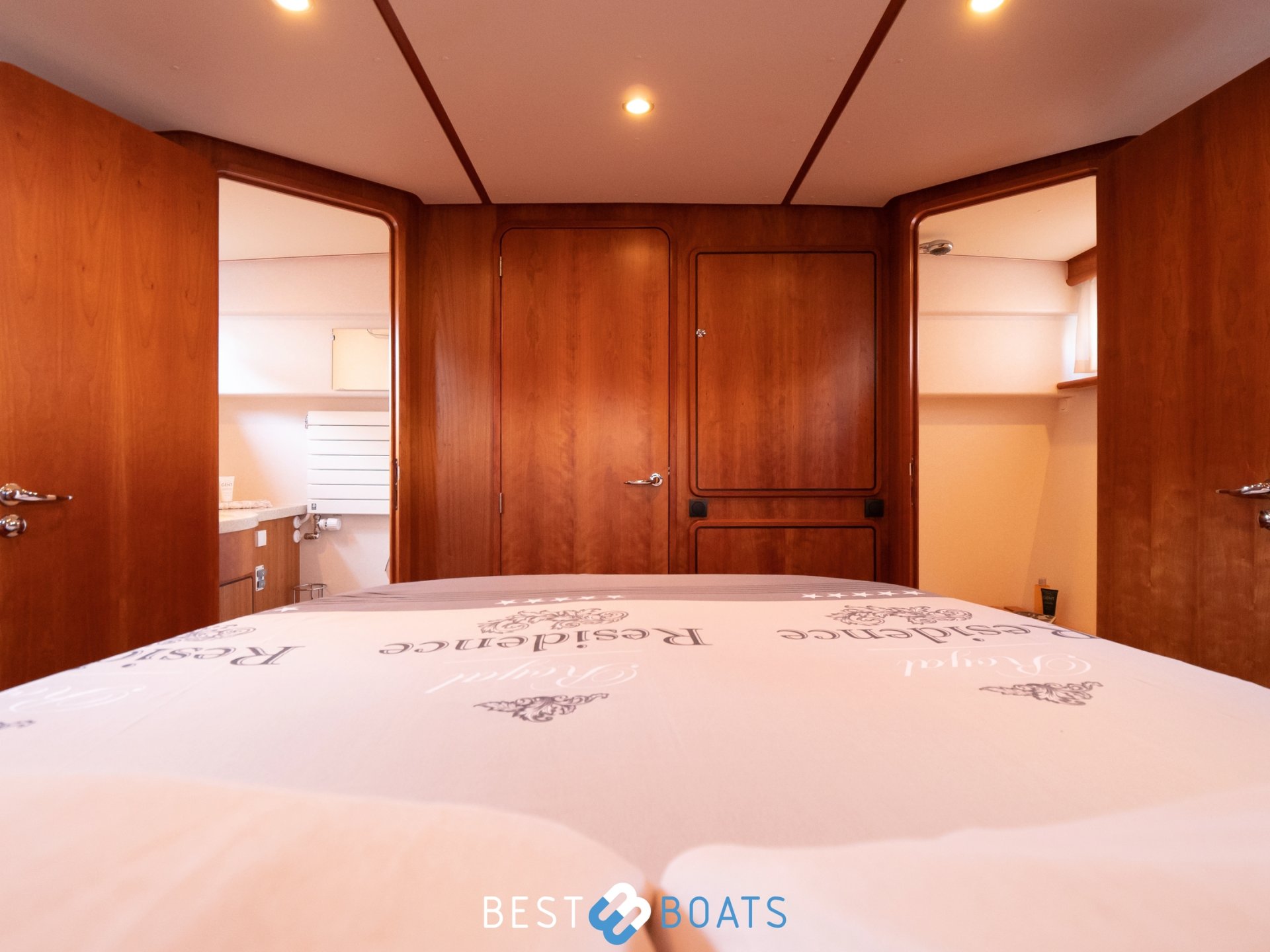

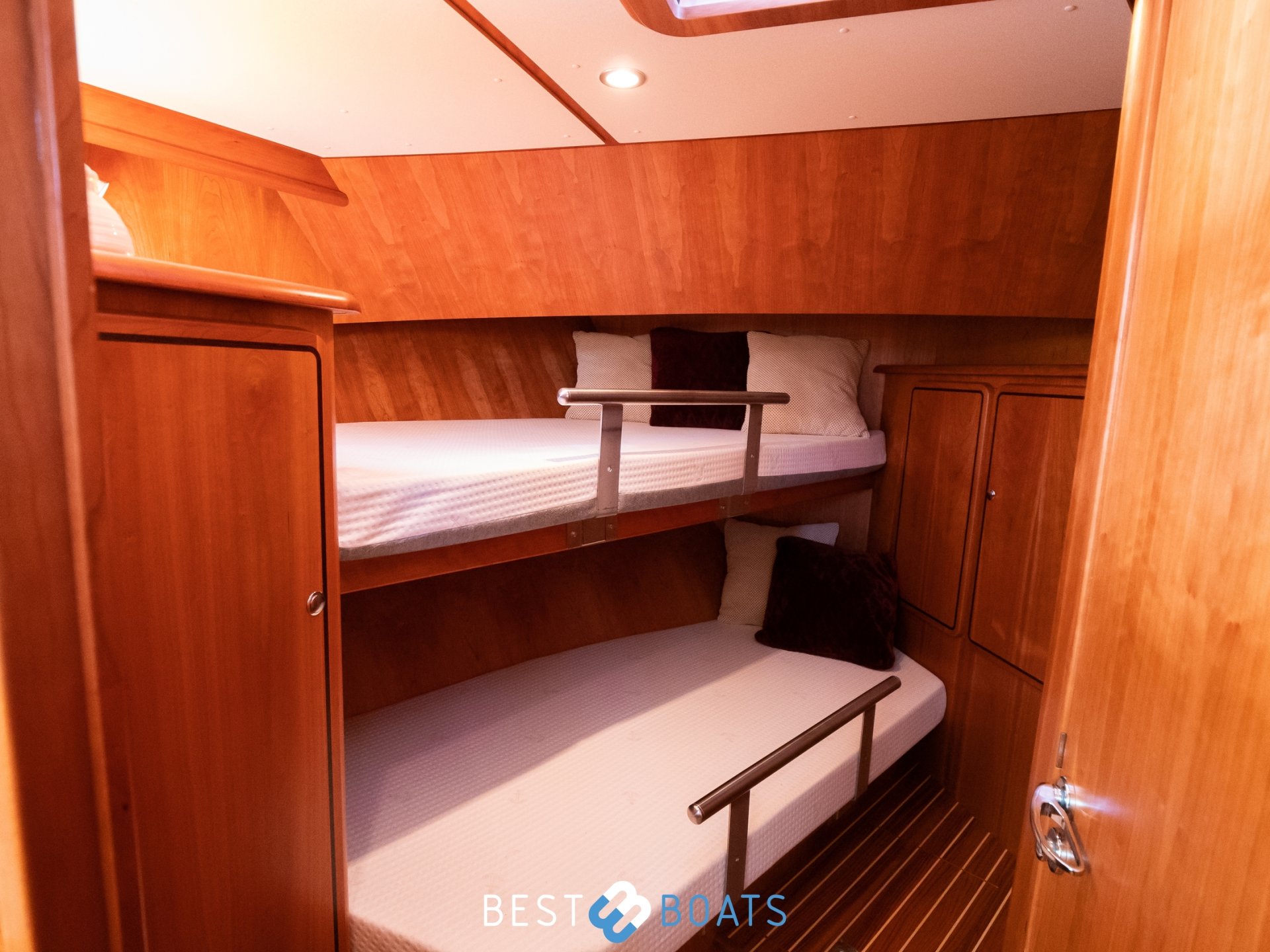

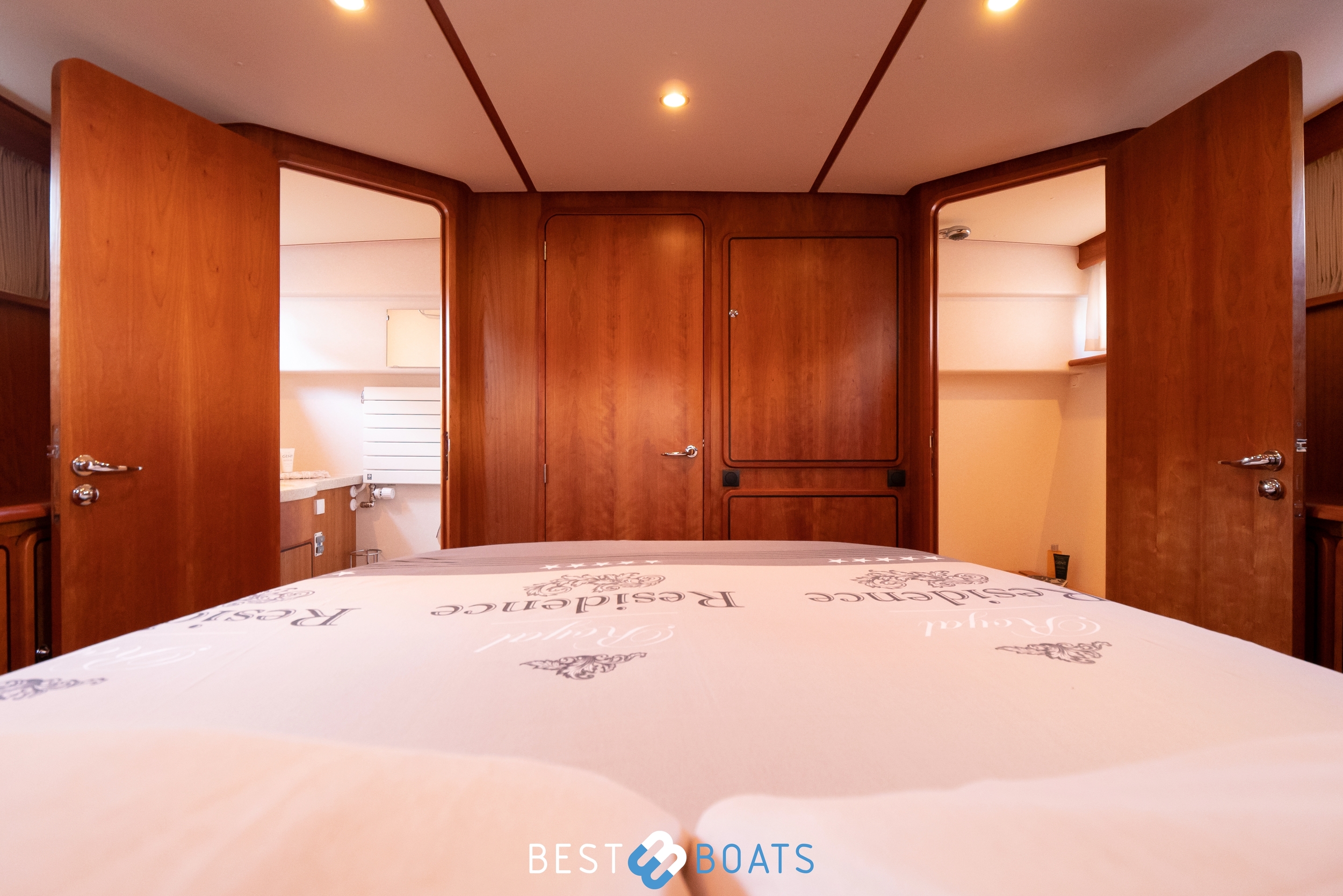

In the forward cabin is a bunk bed with a toilet en-suite, in the aft cabin is a detached double bed with private shower and separate toilet.
Berths

The dinette can be converted into 2 extra beds
Type Interior
Classic, warm
Sofas with beige leather upholstery, the interior is covered with cherry wood.
Color upholstery
Beige
Mattresses
✓
Curtains
✓ Cream coloured curtains
Water tank & material
440 Liter
Water tank gauge
✓
VDO
Waste water tank
220 Liter
Holding tank meter: WEMA
Waste water tank drainpump
✓
Deck suction
✓
Water system
Pressure system + manual
Hydrophoric
Hot water
✓ Quick Nautic Boiler B3 60 litres
Outside water
- Deck wash pump - Deck shower
Number of showers
1

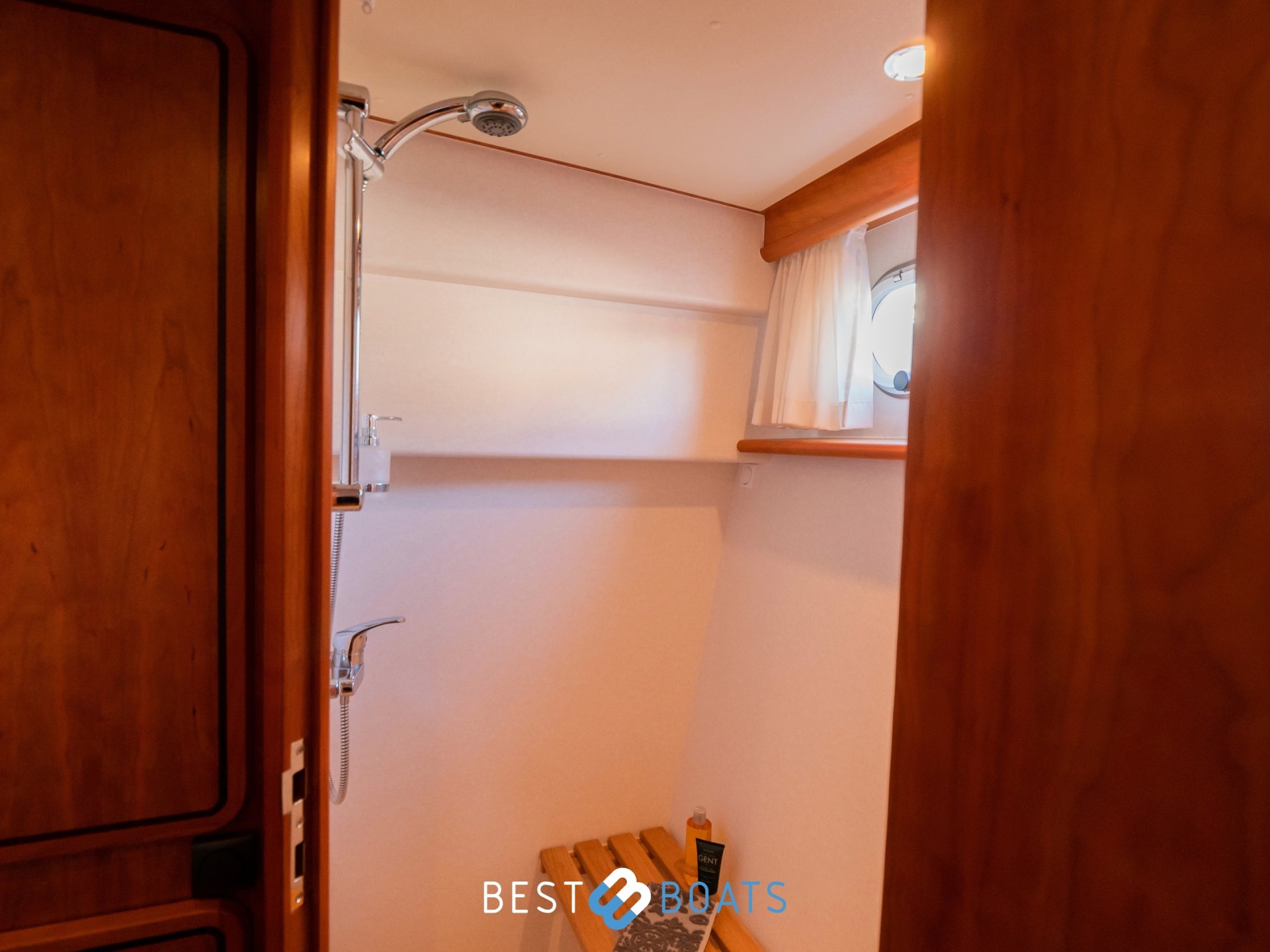

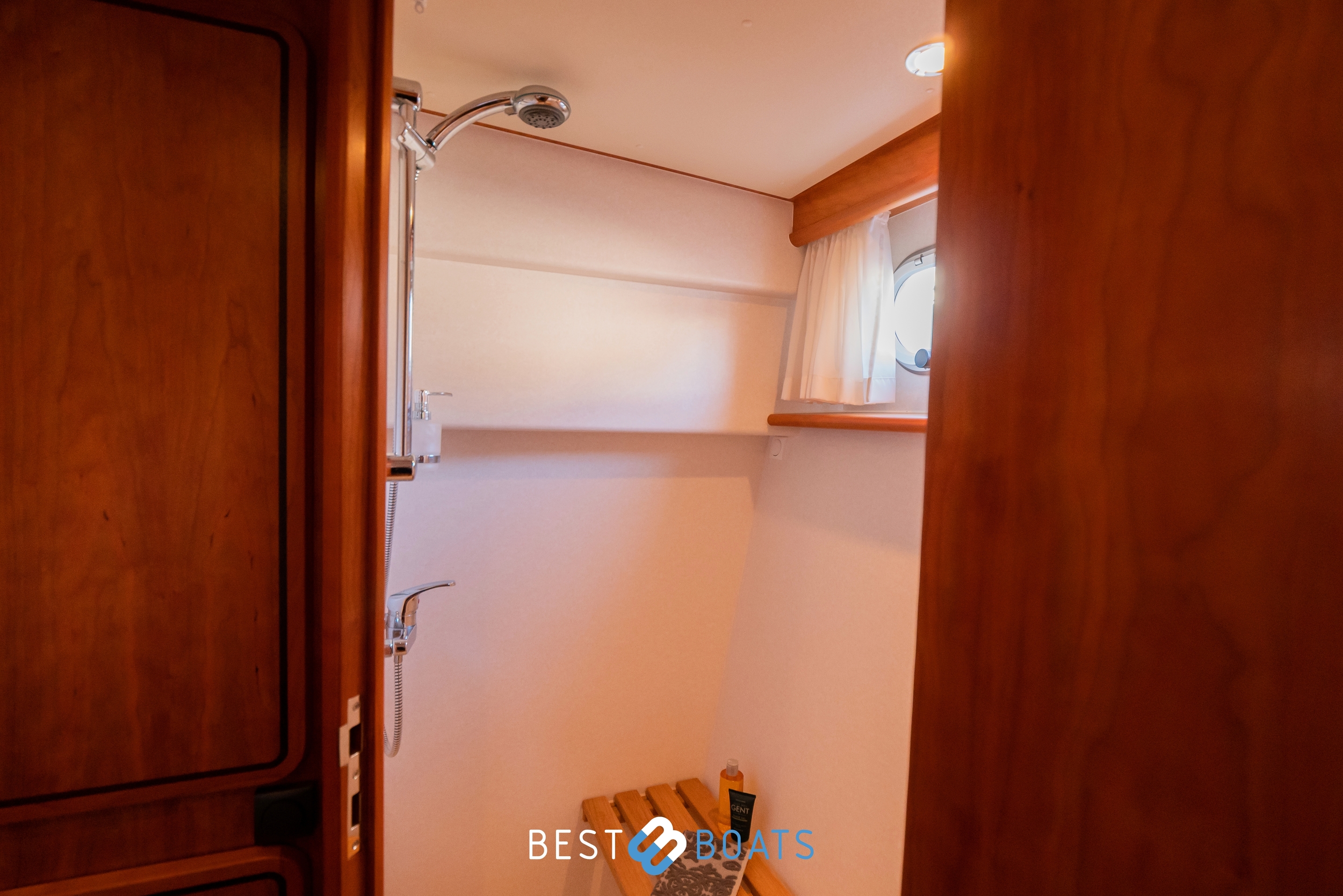

Shower in the aft cabin separate from the toilet
Toilets
2 Electric

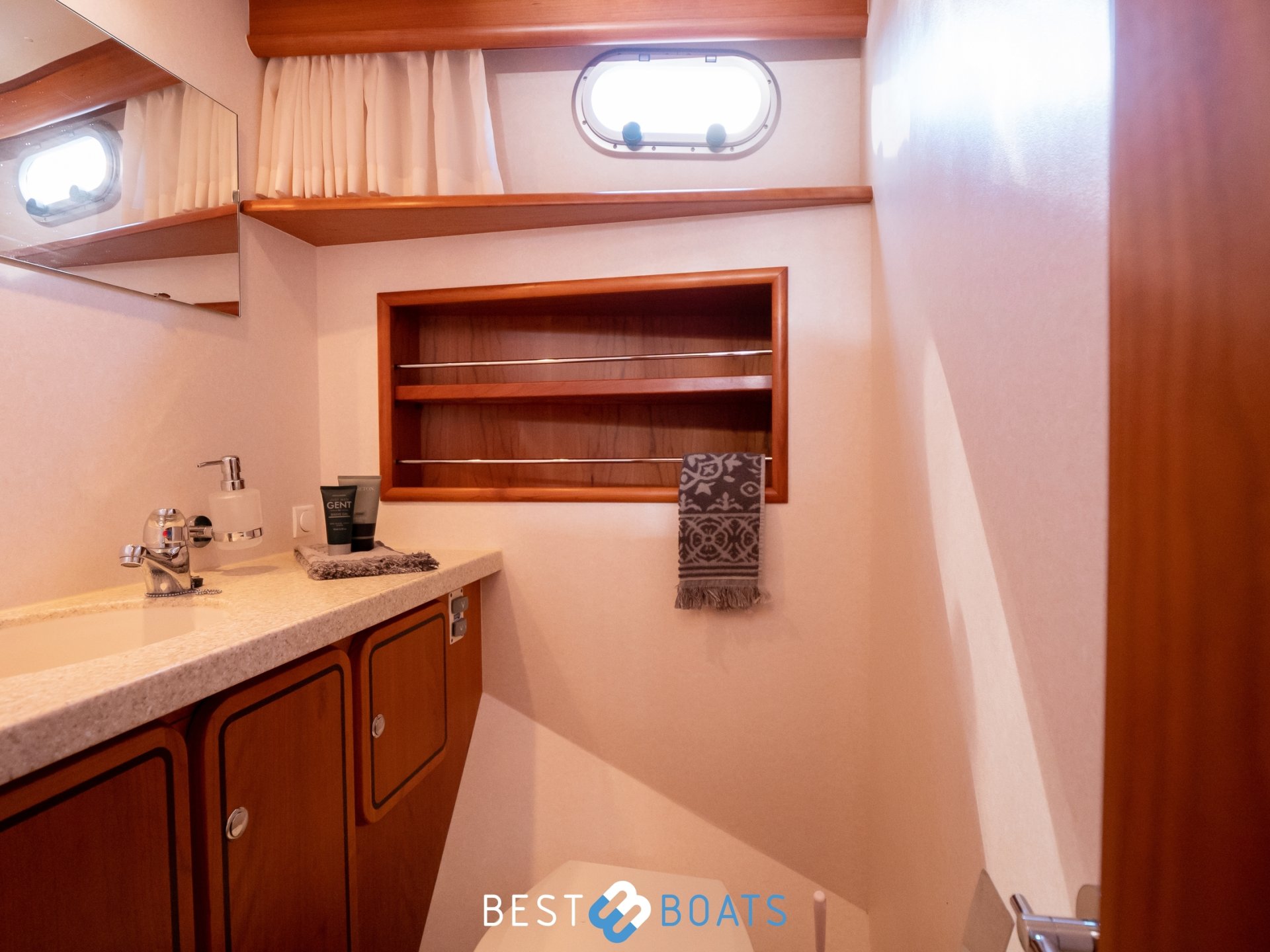

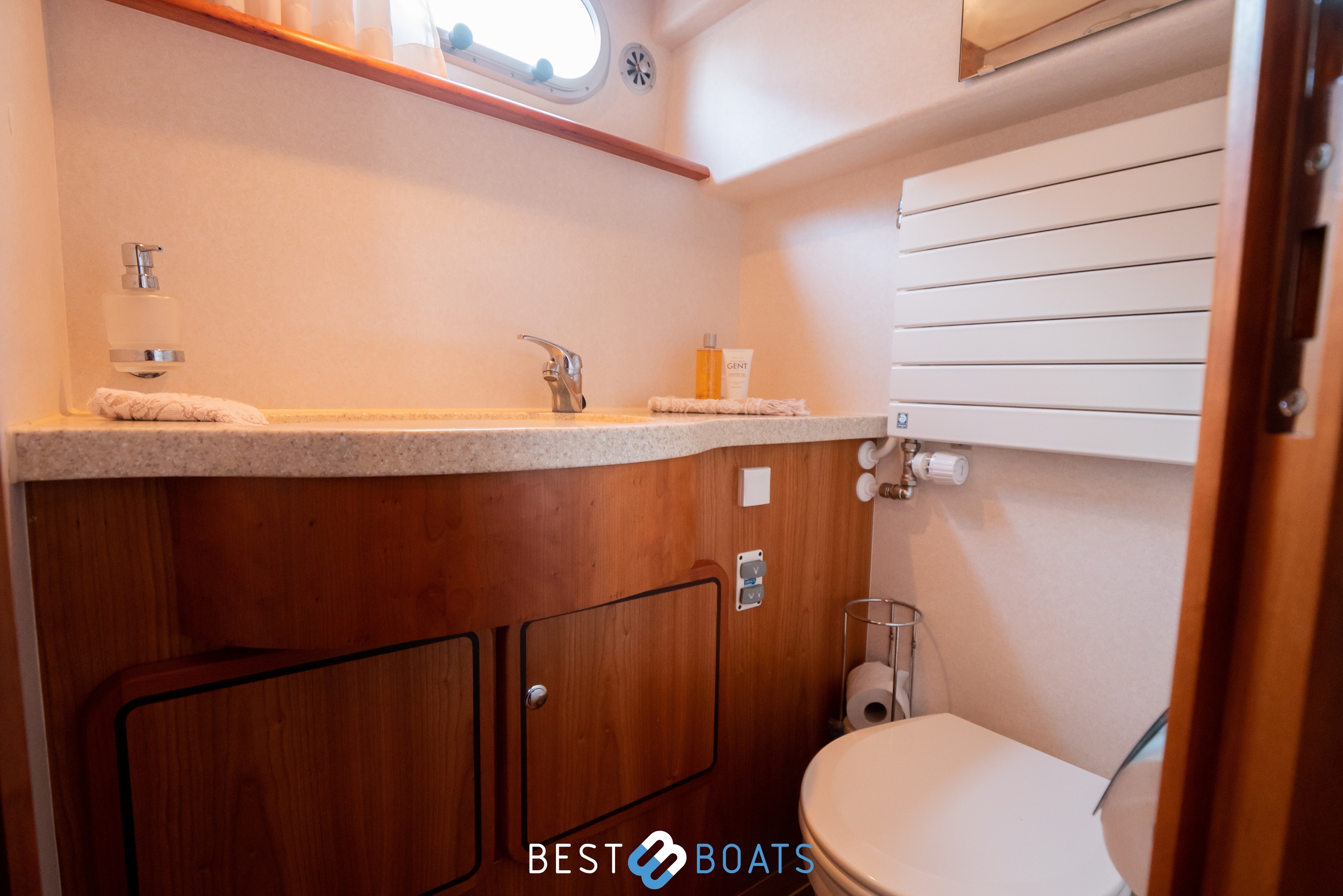

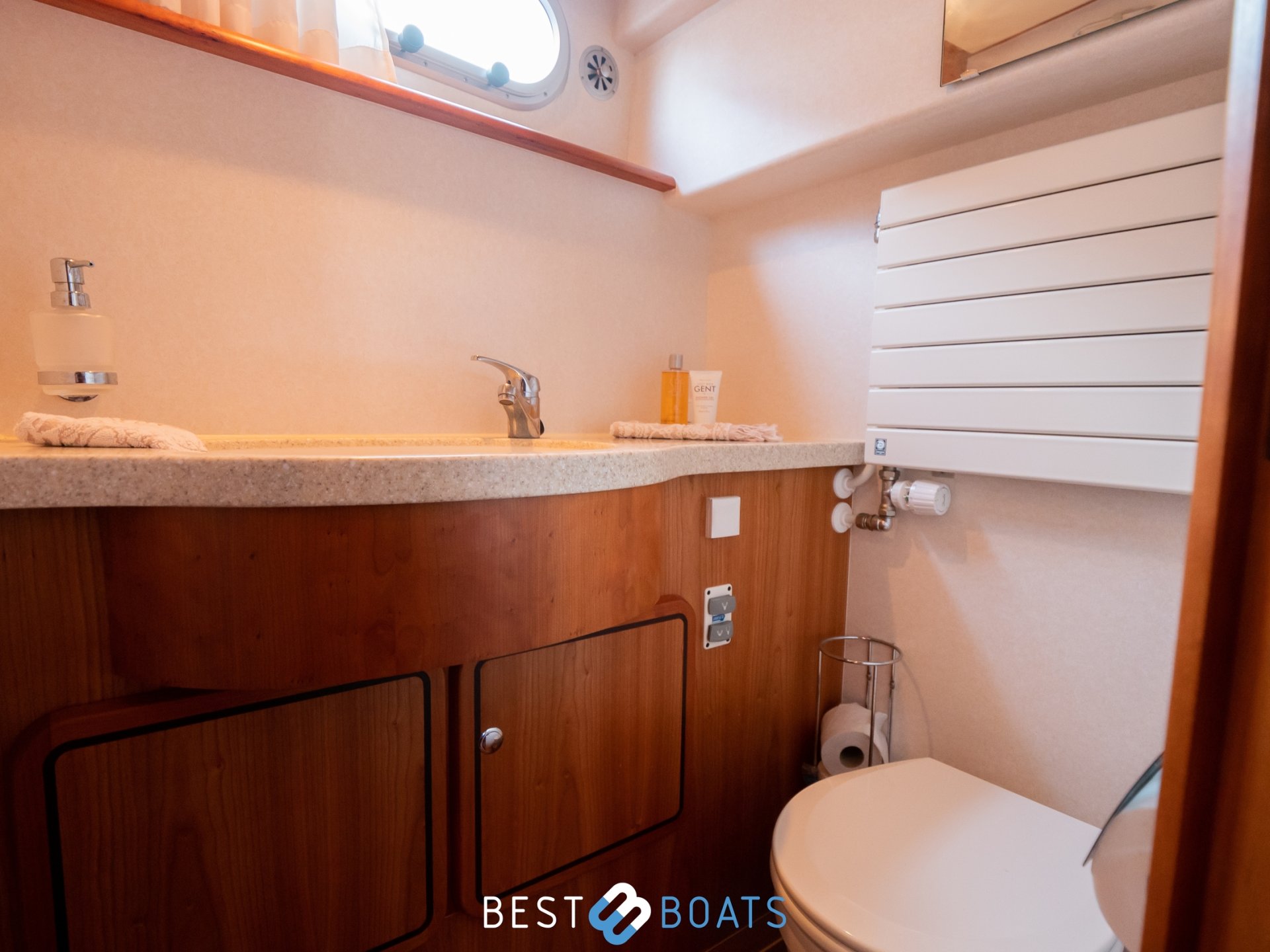

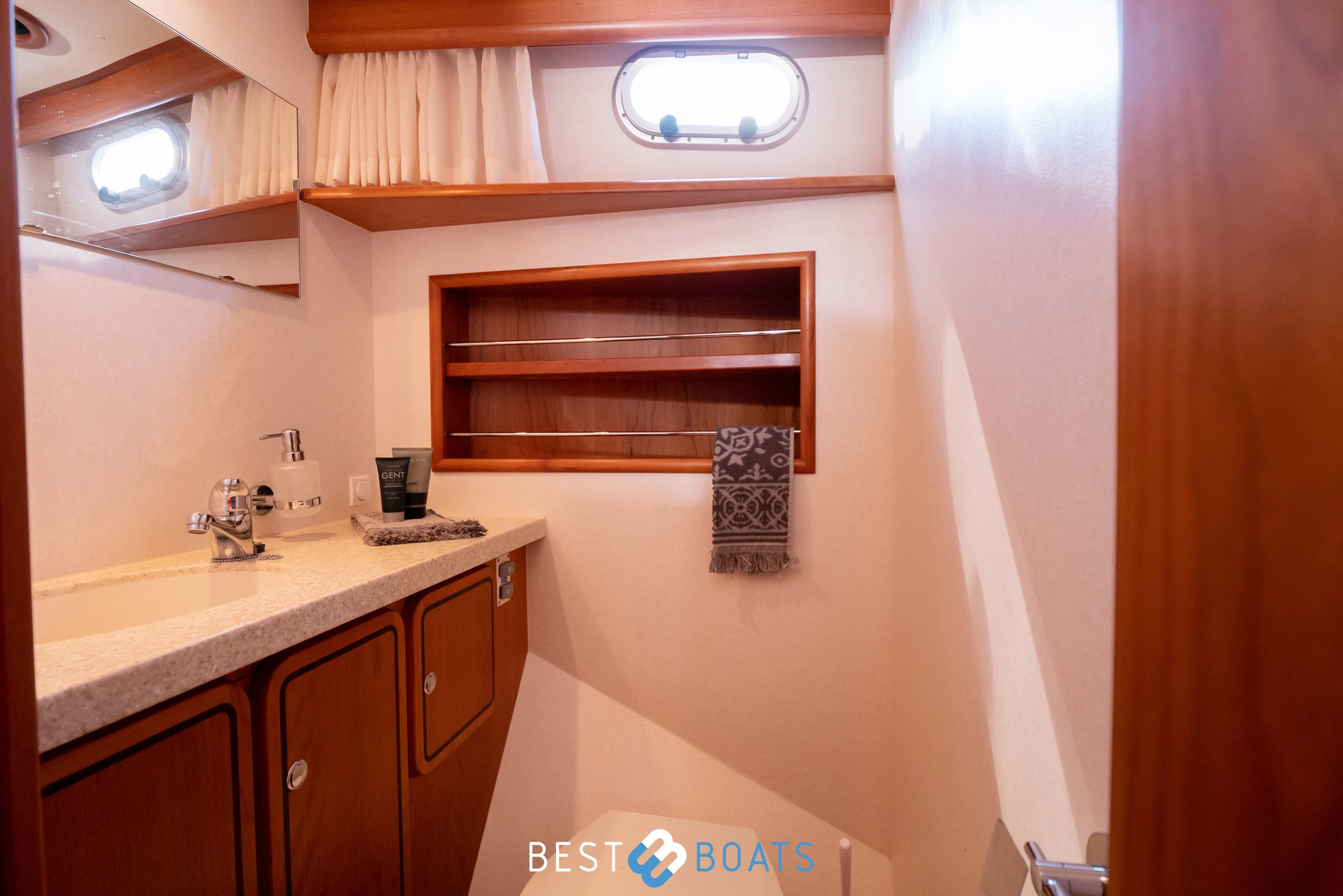

One toilet in the aft cabin and one toilet in the forward cabin, both in Jabsco Quiet Flush.
Television
✓
Radio/CD player
✓
Sony 50Wx4, two Sony speakers in the salon
Cooker & fuel
4 Burner(s)
ENO
Oven
✓
Microwave oven Whirlpool 755IX
Microwave
✓
Microwave oven Whirlpool 755IX
Fridge & power source
✓
110 Liter
Coolmatic RSD110
Freezer
✓ Freezer compartment in fridge
Heating
✓ Stove
Eberspächer Hydronic M D10W, radiators throughout the ship, two radiators in the saloon, one under the couch and one concealed in the cabinets on the port side, one radiator under the table in the kitchen, in the stern there are two radiators, one under the bed and one in the bathroom behind the toilet and in the forward cabin there is also a radiator.
Comments

Details:

  • Miele dishwasher

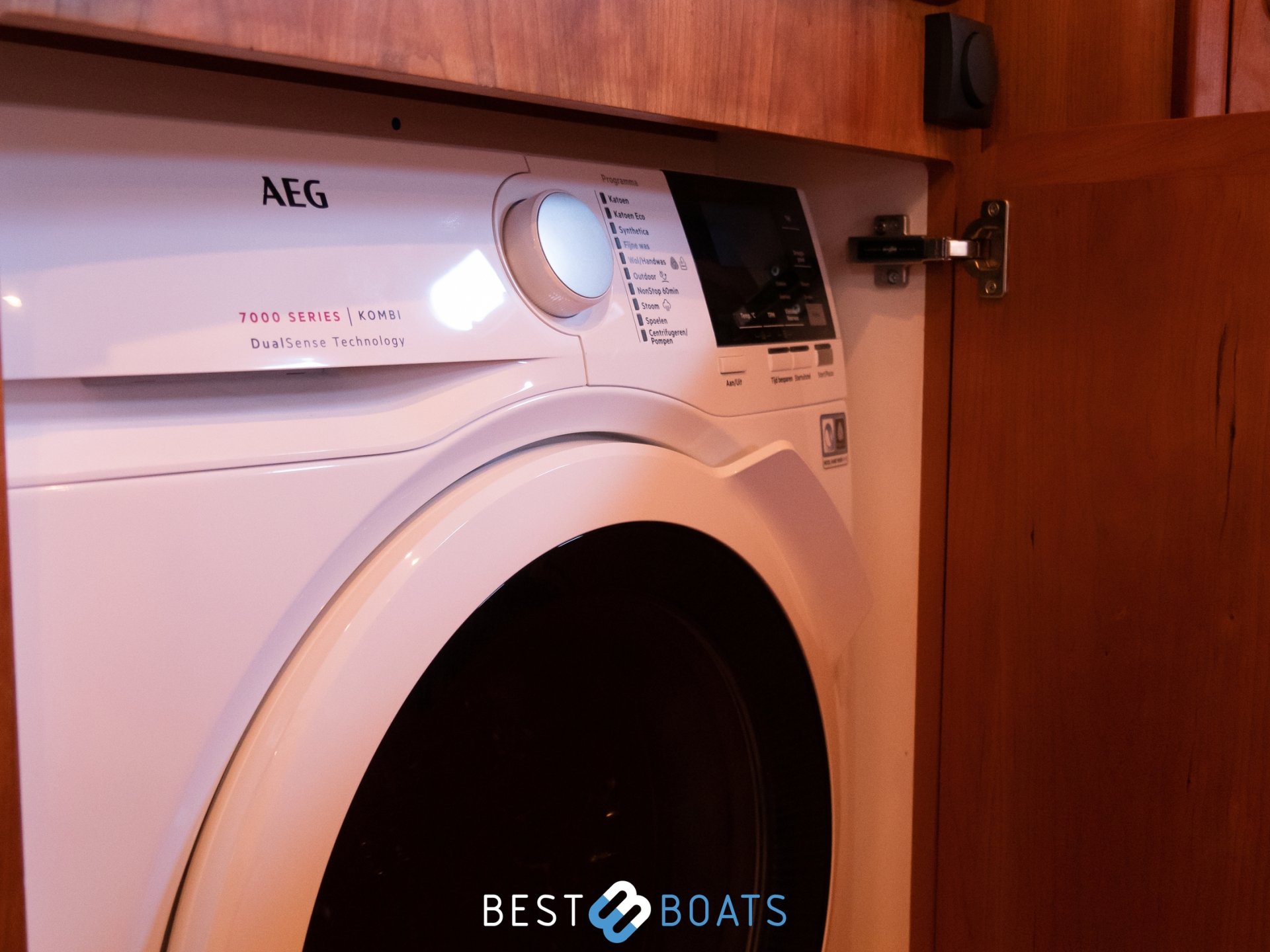

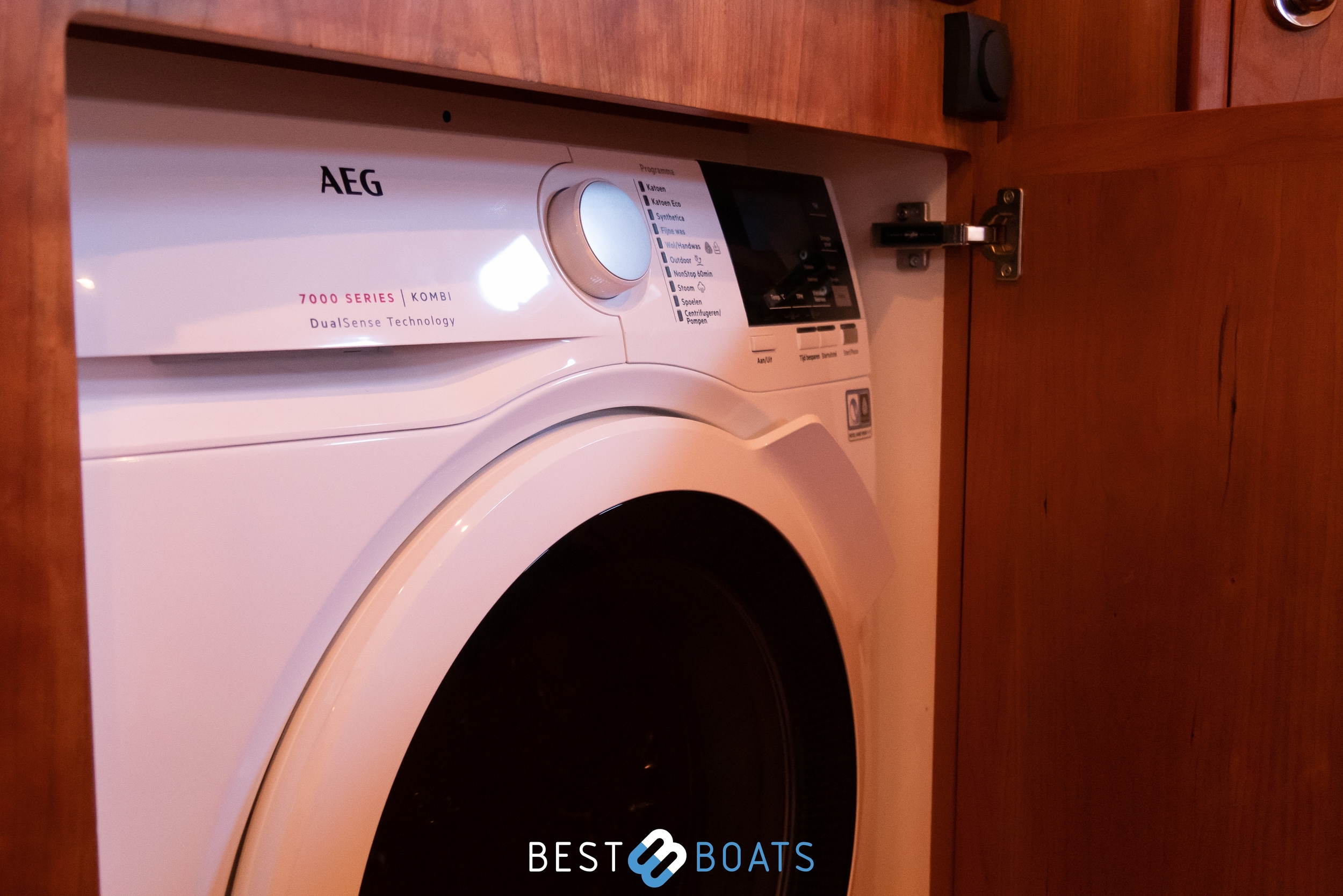

  • AEG 7000 Series washing machine in the stern

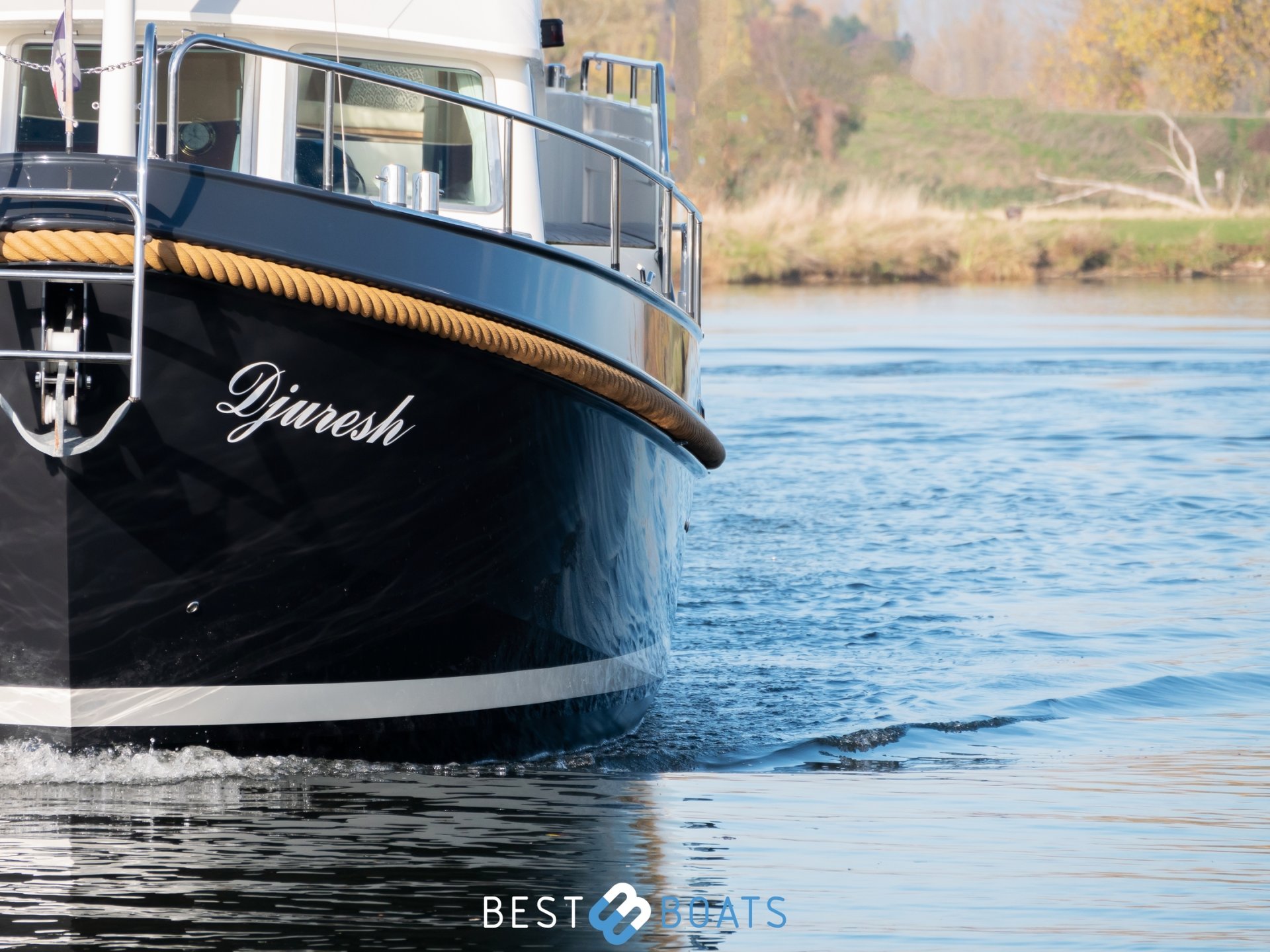

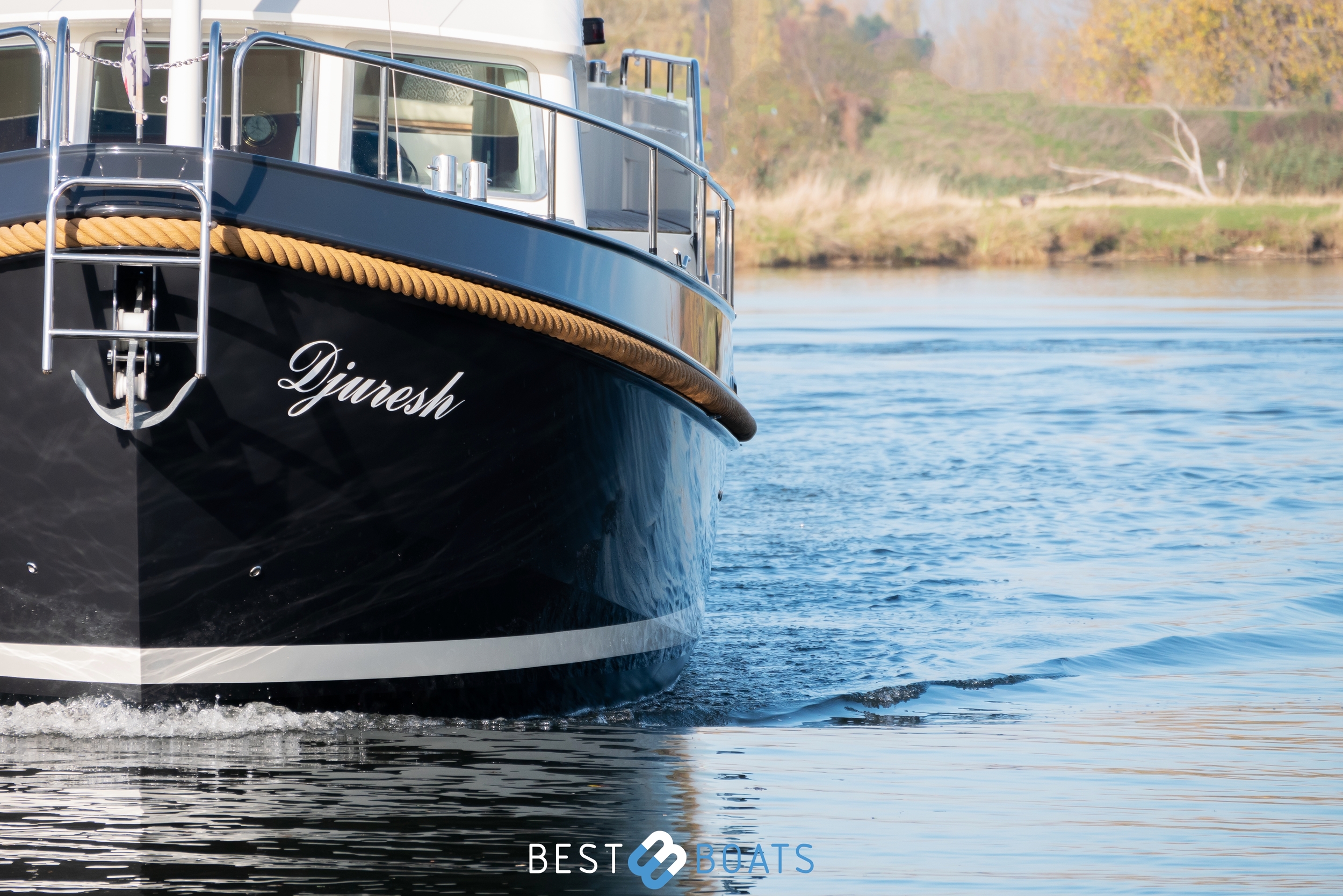

  • The Yacht has a bow ladder at the front.
< >

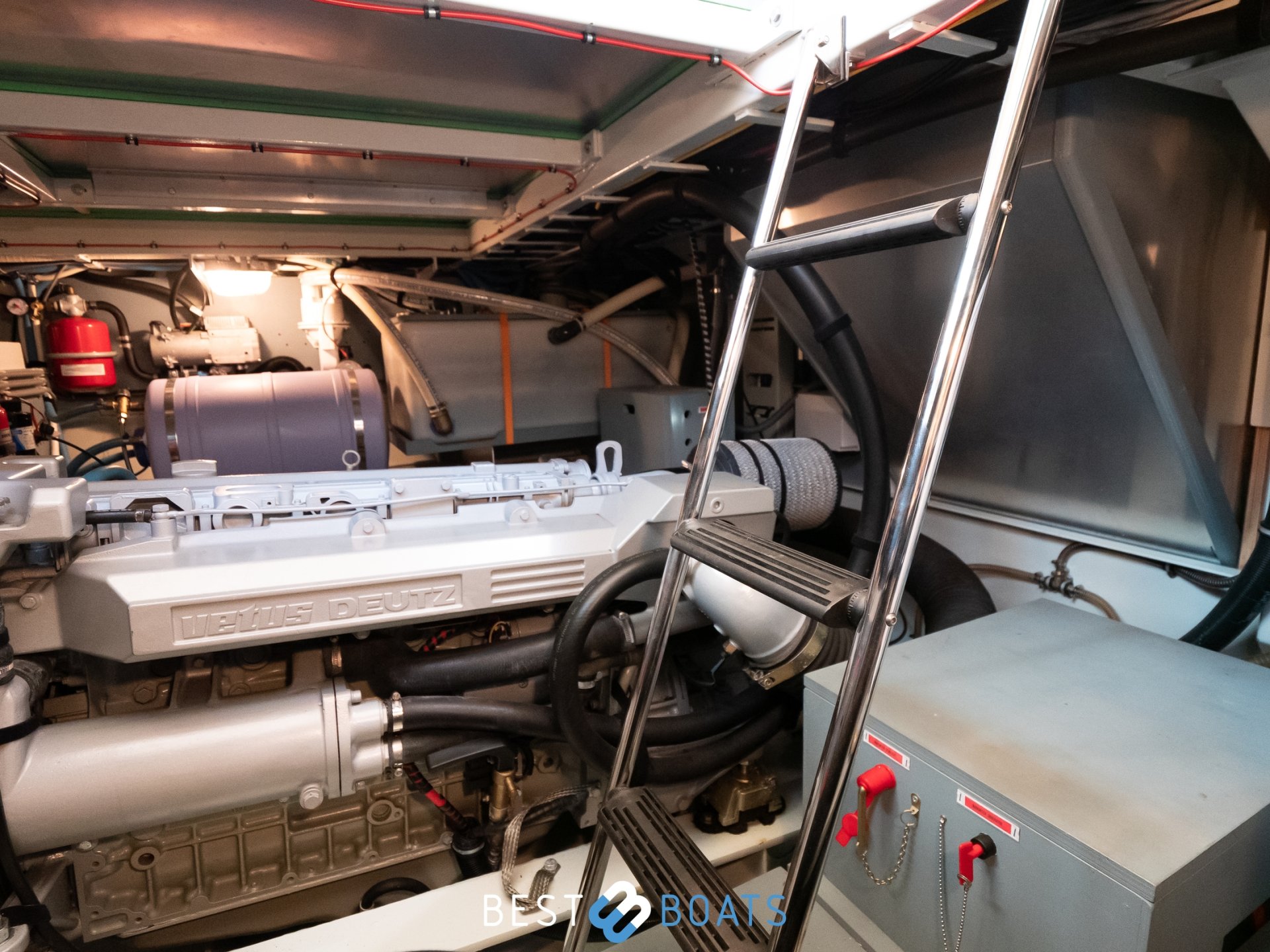

Engine, Electrics

Engine, Electrics

Number of identical engines
1
Starting type
Electric

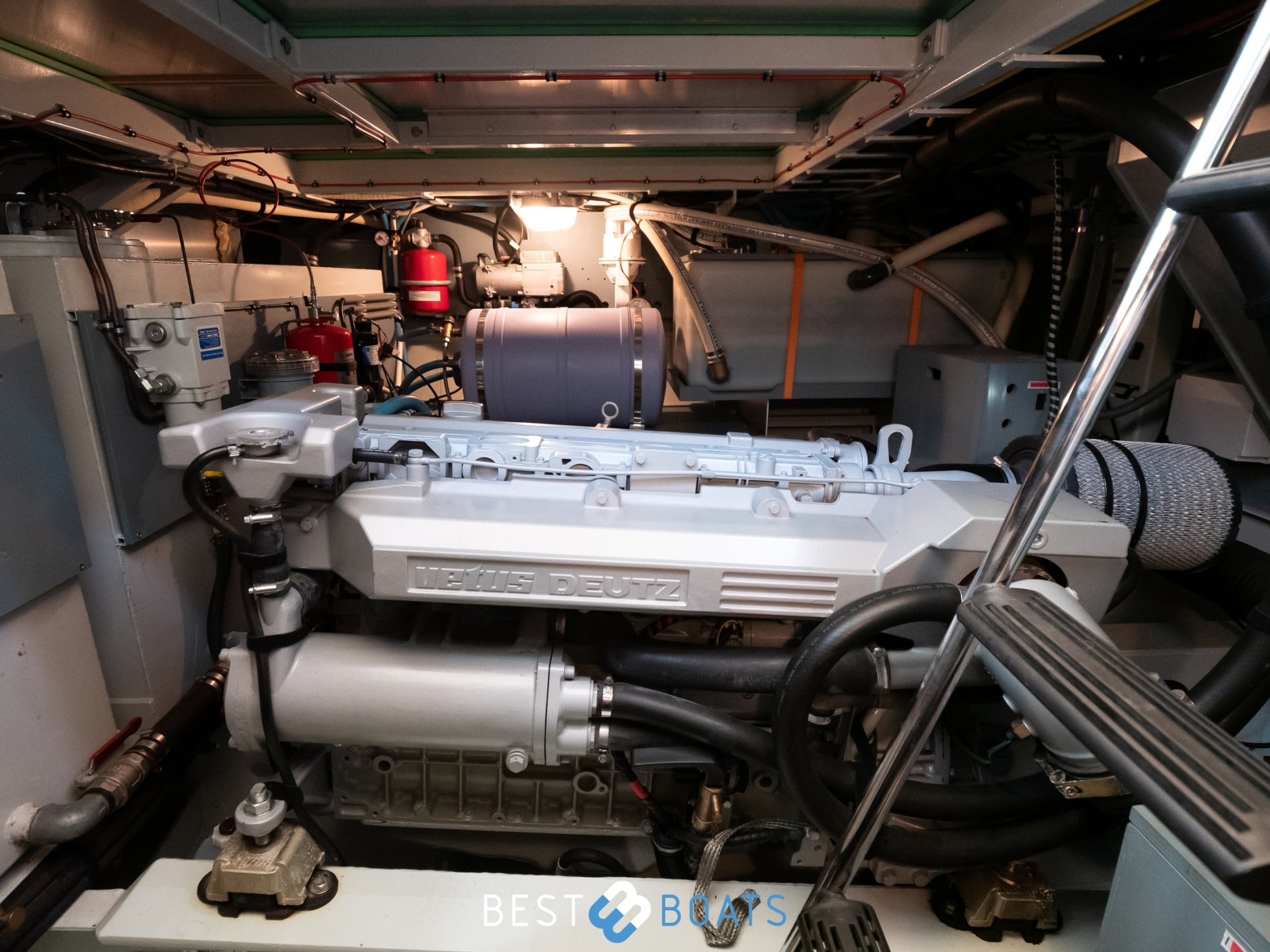

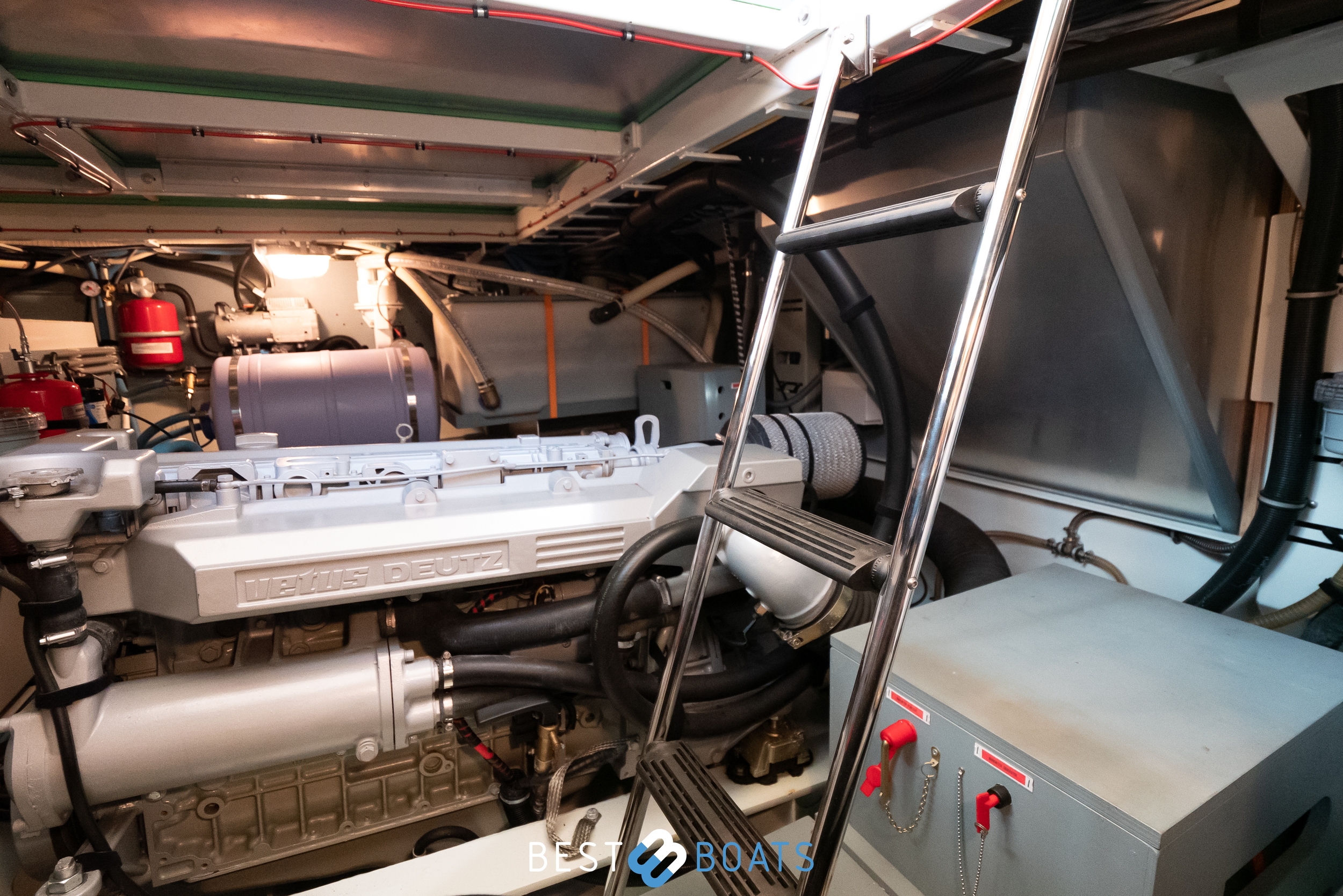

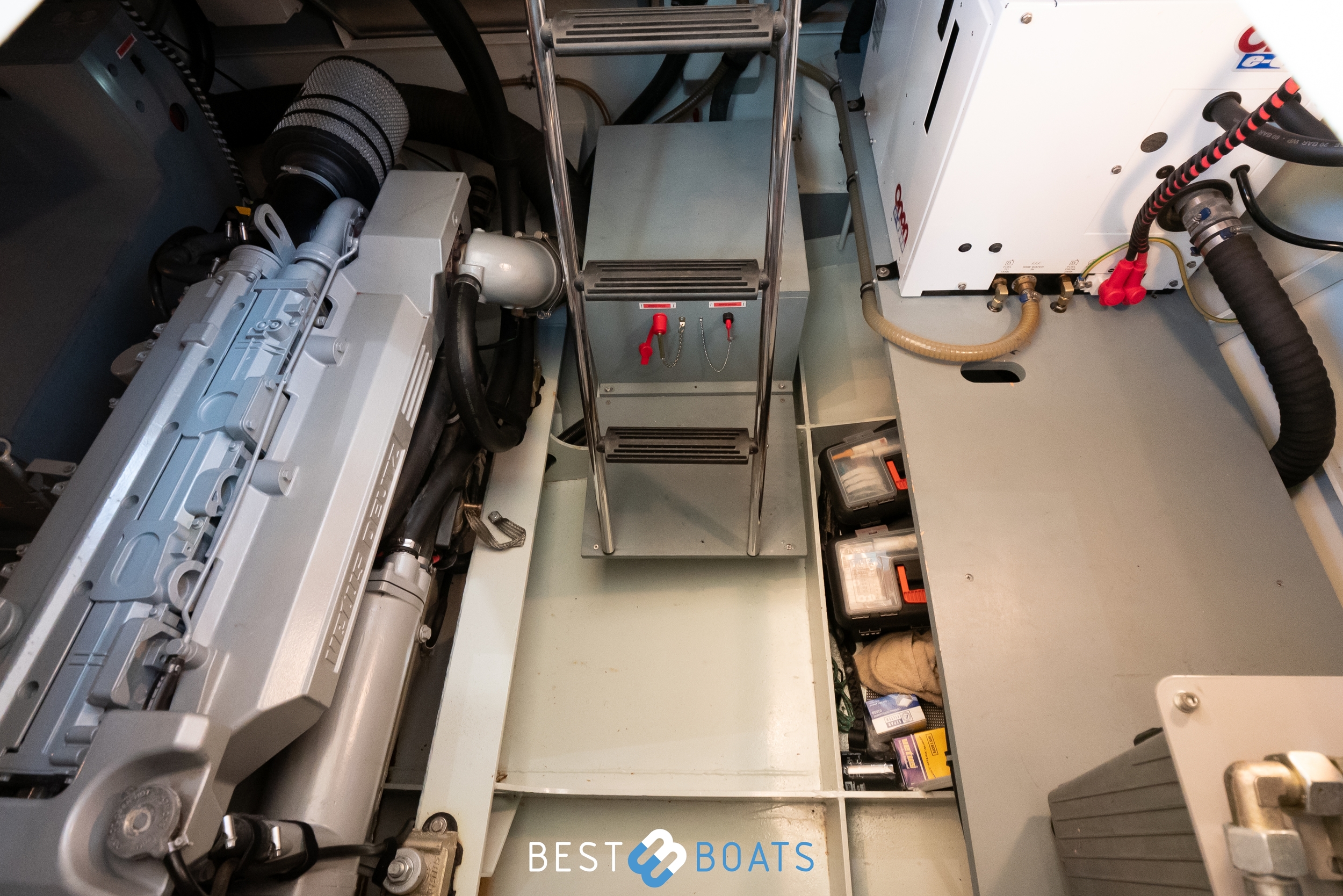

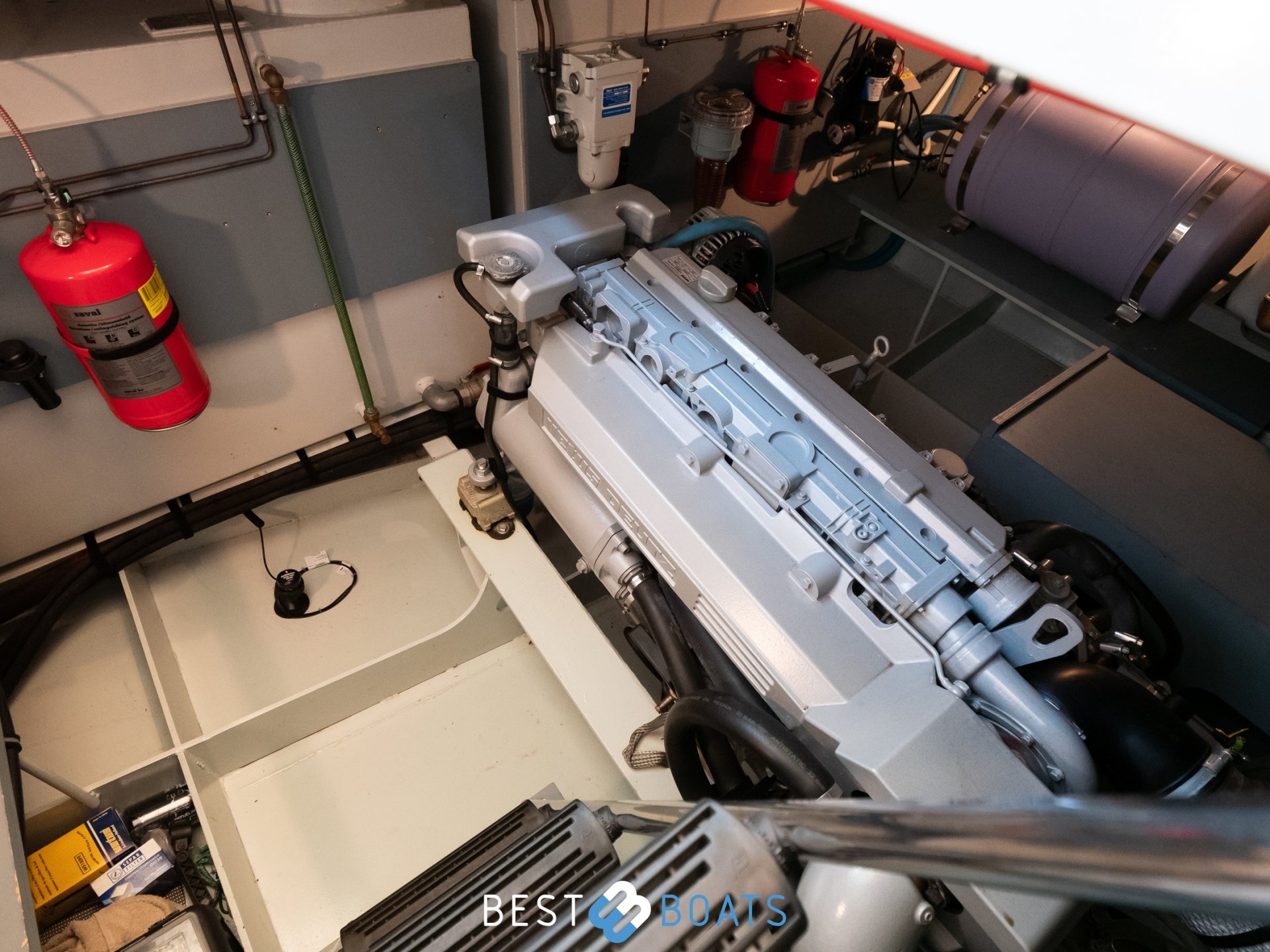

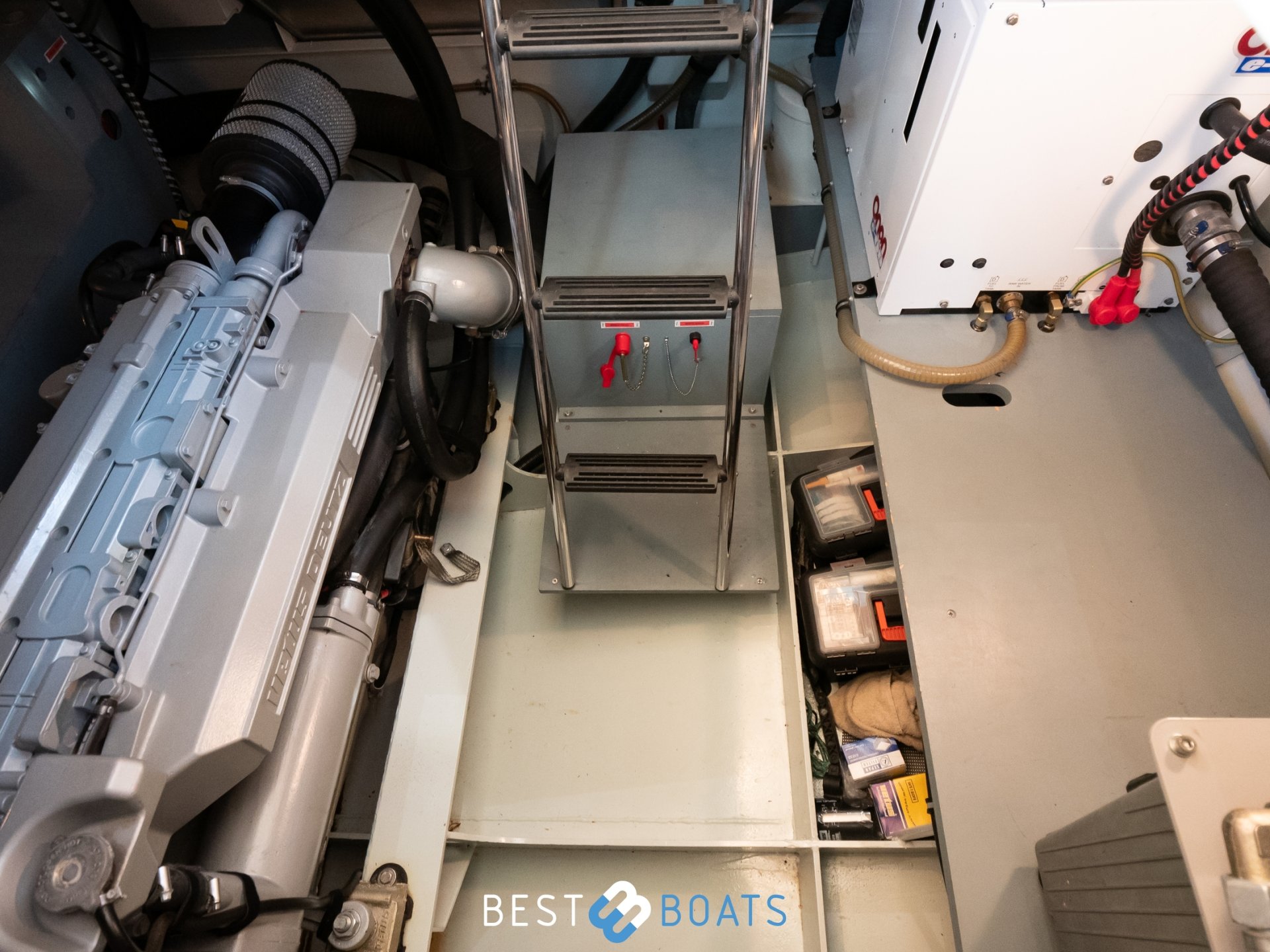

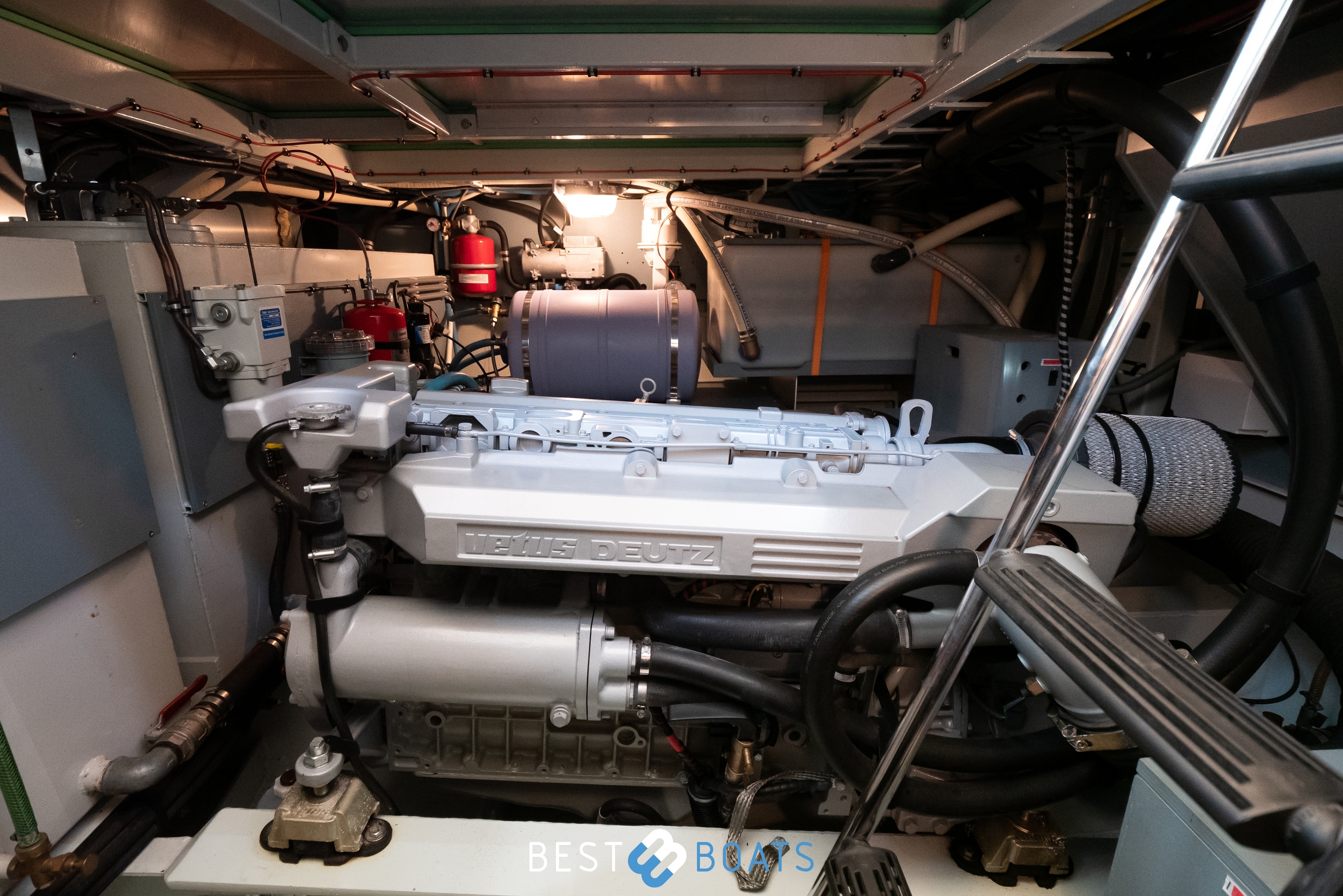

Type
Inboard
Brand

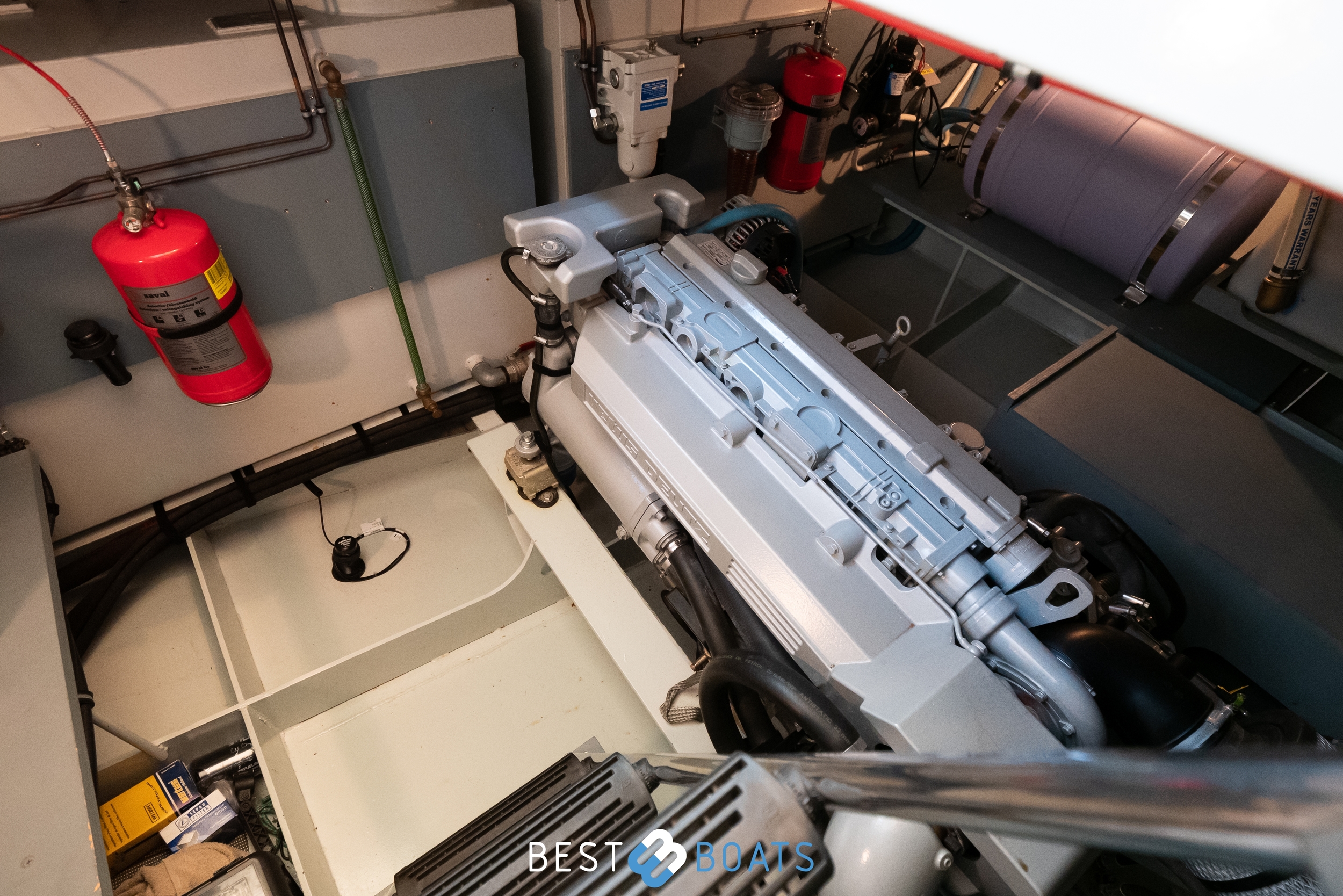

Vetus
Model
DT66425A
Serial number
10363409
Year
2008
Number of cylinders
6
Power
170 hp
Hours counter
✓
Engine hours
Approx. 433
Fuel
Diesel
Gearbox
ZF-45-1
Transmission
Shaft
Propulsion
Propellor
Cooling system
Indirect
Fuel tanks
2
2x 570 litre tanks
Total fuel tank(s) capacity
1040 Liter
Fuel tank material
Steel
Max speed
km/h
approx. 17
Cruising speed
km/h
approx. 12
Fuel tank gauge
✓ VDO
Tachometer
Vetus motorpaneel
Oil pressure gauge
Vetus motorpaneel
Temperature gauge
Vetus motorpaneel
Bow thruster
Hydraulic Remote control
Vetus 48A
Stern thruster
Hydraulic Remote control
Vetus 48A
Battery
x Ah
Battery charger
60 A
Mastervolt Mass 12/60
Alternator
A
Generator
ONAN 4 kW
Voltmeter
✓
On Vetus engine panel
Shore power
✓
Shore power cable
✓
Solar panel
Watt
Voltage
✓ 12V ✓ 220V
< >
Navigation and electronics

Navigation and electronics

Compass
✓ Raymarine ST60+ Compass
Log/speed
Raymarine ST60+ Tridata
Depth gauge
Raymarine ST60+ Tridata
Navigation lights
✓ Aqua Signal
Autopilot
✓ Raymarine ST6002 Smartpilot
Chart plotter
✓ Raymarine C80
Radar
✓ Raymarine
VHF
✓ Raymarine Ray240E VHF
< >
Deck equipment

Deck equipment

Anchors & material
1 x
Anchor connection
Chain
Anchor windlass
Manual
Bimini
✓

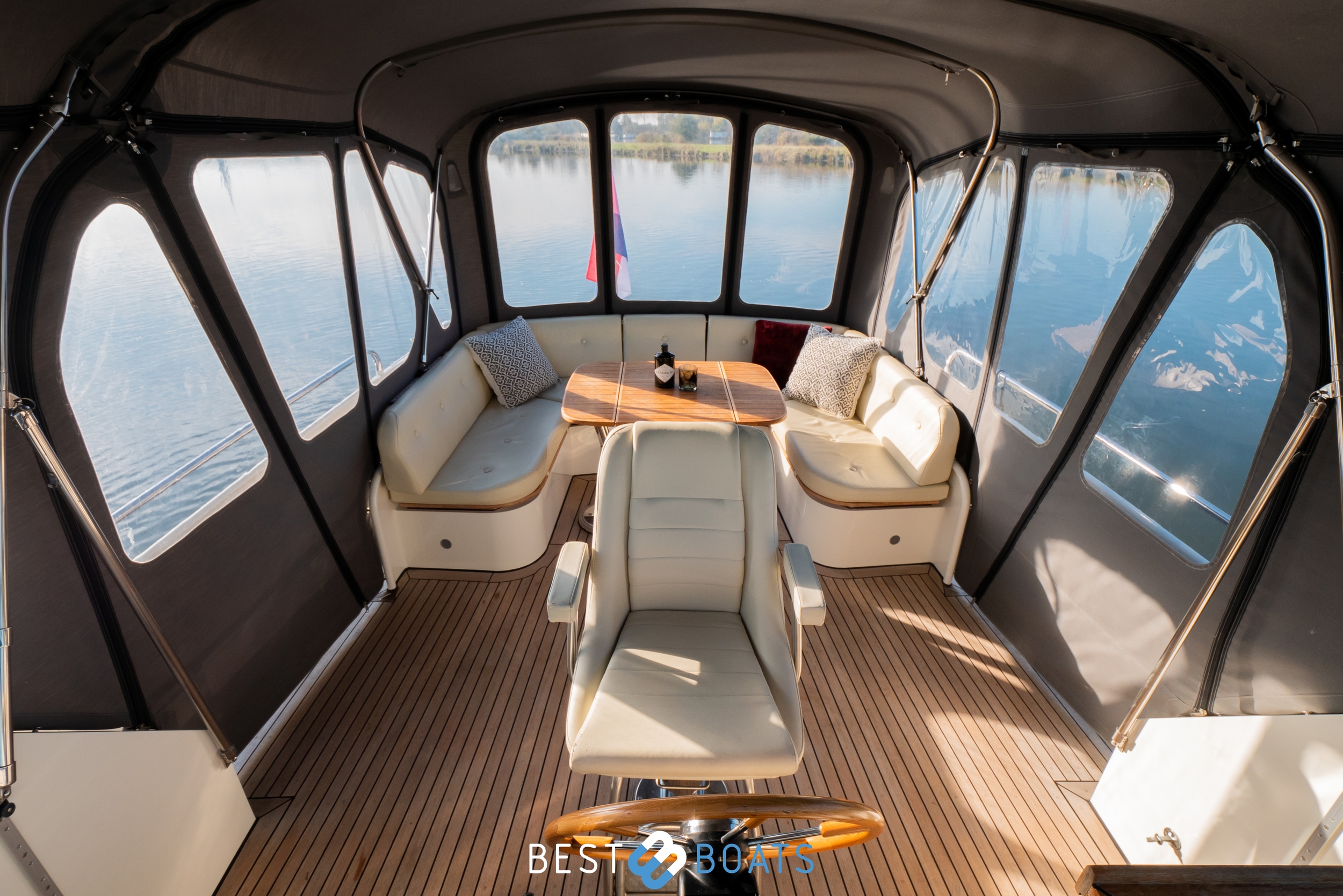

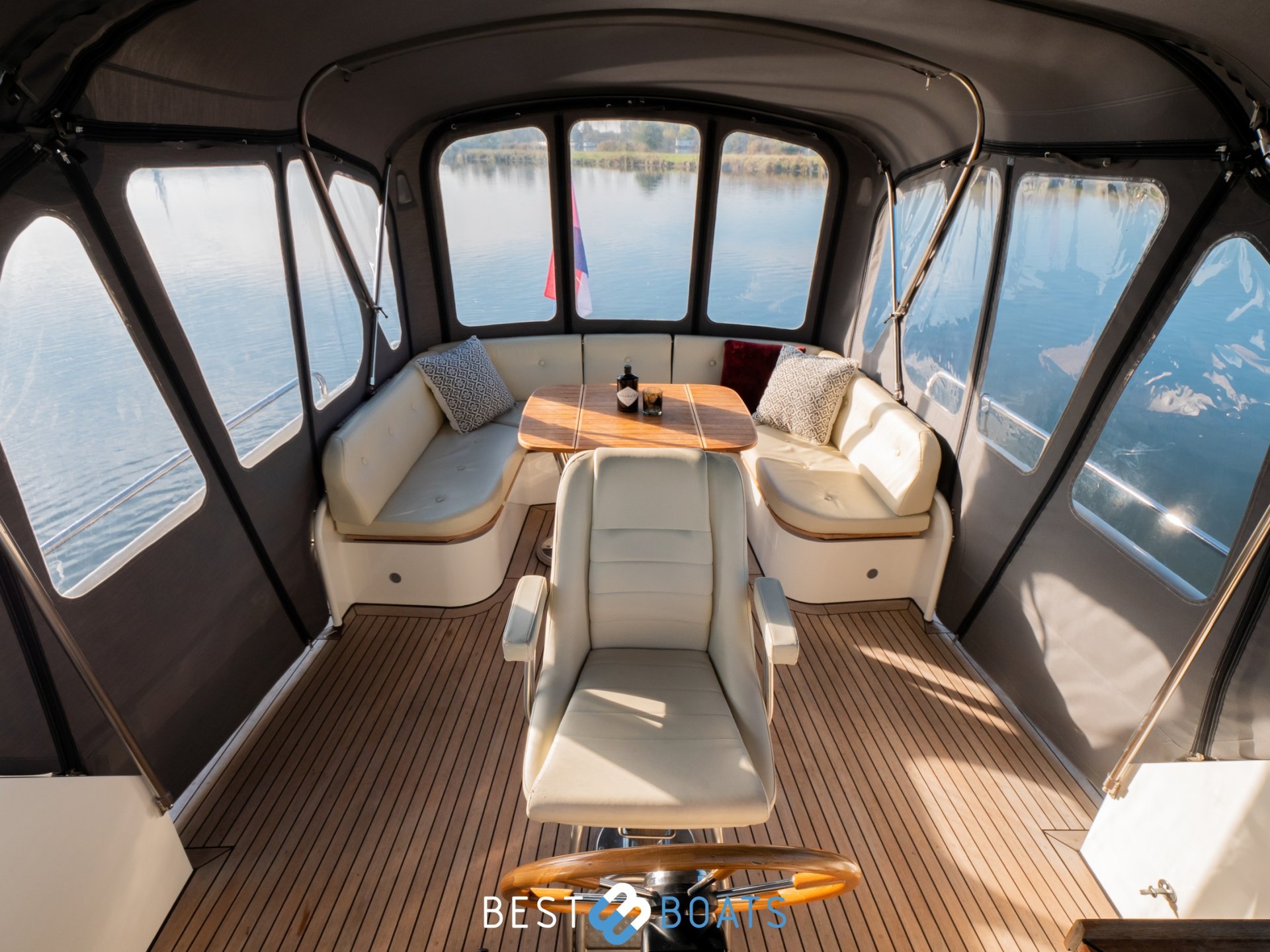

Full grey convertible top over aft deck, side pieces removable in parts.
Outdoor cushions
✓
Spacious round seat on deck outside with beige leather upholstery
Sea rails
✓
Stainless steel sea railing

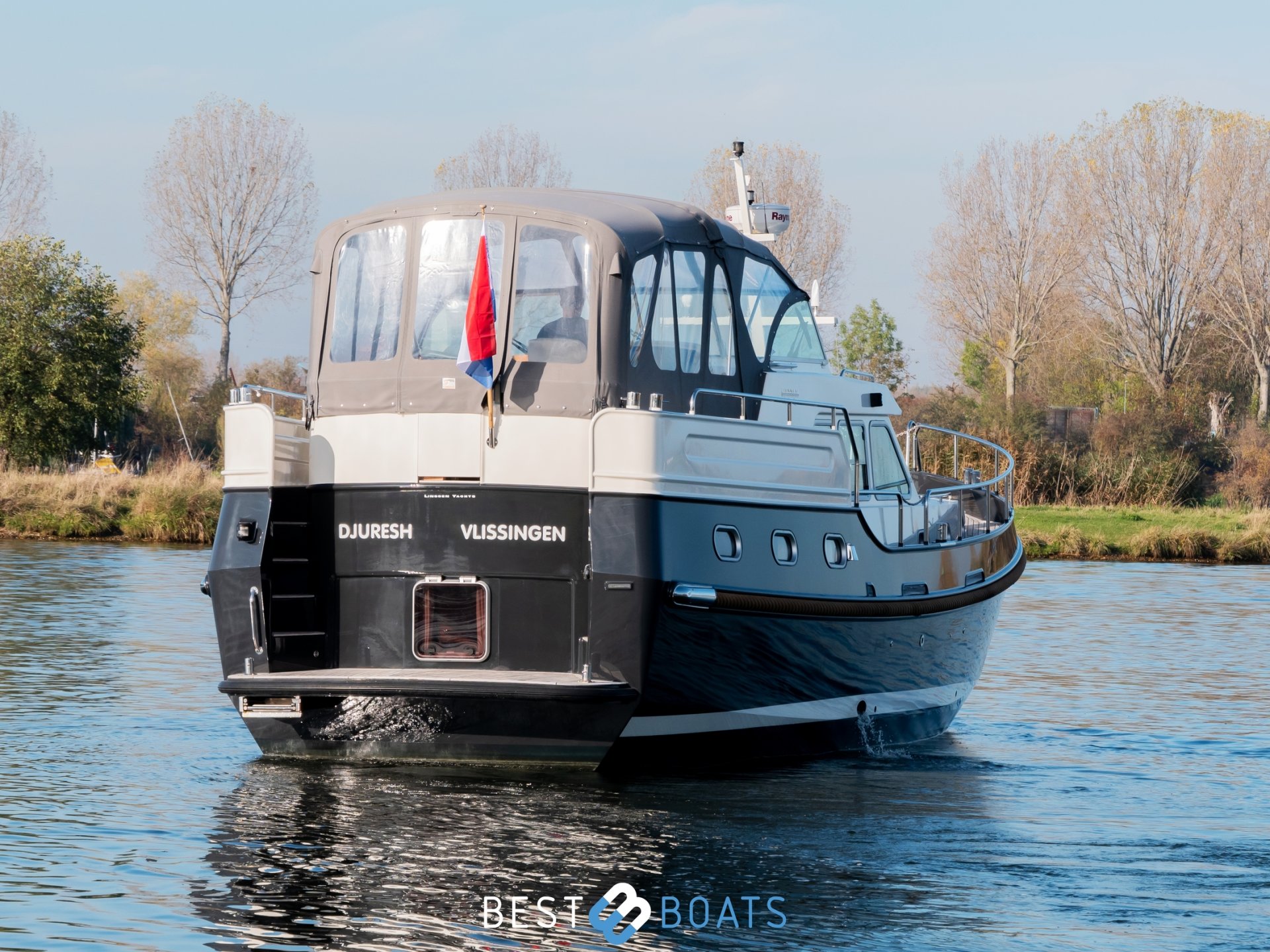

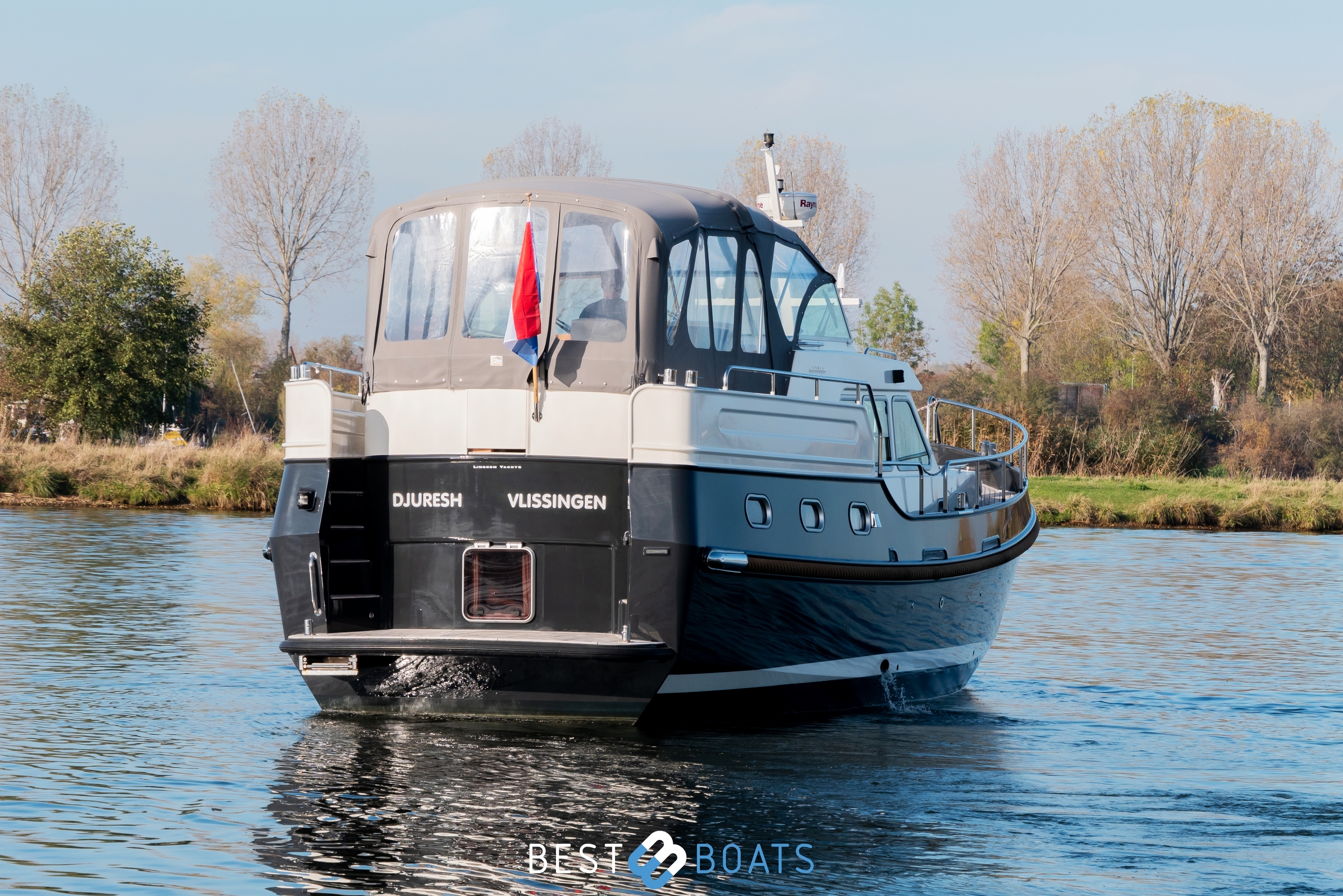

Swimming platform
✓
Swimming platform with teak invested
Swimming ladder
✓
Stainless steel, integrated in swimming platform, accessible from the water
Teak deck
✓
Fenders, lines
✓
Cockpit table
✓
Comments

- This ship is equipped with a bow ladder

- In 2020 the ship is equipped with new antifouling

- In 2020 the ship is equipped with new annodes

< >
Safety

Safety

Bilge pump
✓ Manual ✓ Electric
Fire extinguisher
✓
One fire extinguisher in the saloon, one under the stairs to the kitchen and two in the engine room.
< >
